Nvent PHKR Rooftop Pyramid H-Frame Kit Rubber (2 Post Bases)

Product Description

Nvent PHKR is a rooftop Pyramid H-frame kit that provides a rubber rooftop interface and includes two post bases with pre-installed mounting hardware for rooftop support applications such as solar panel arrays. The polypropylene and polyethylene bases have a foam or rubber bottom, accept 1-5/8 x 1-5/8 in strut channels, and include hot-dip galvanized, UV-stabilized hardware. Dimensions 12.375 x 12.375 x 4.66 in; temperature range -30 to 130 °F; static load 1500 lbf (750 lb per post base).

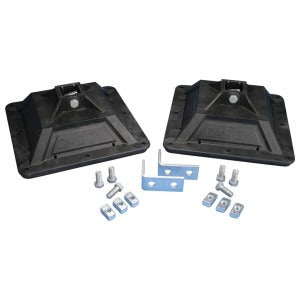

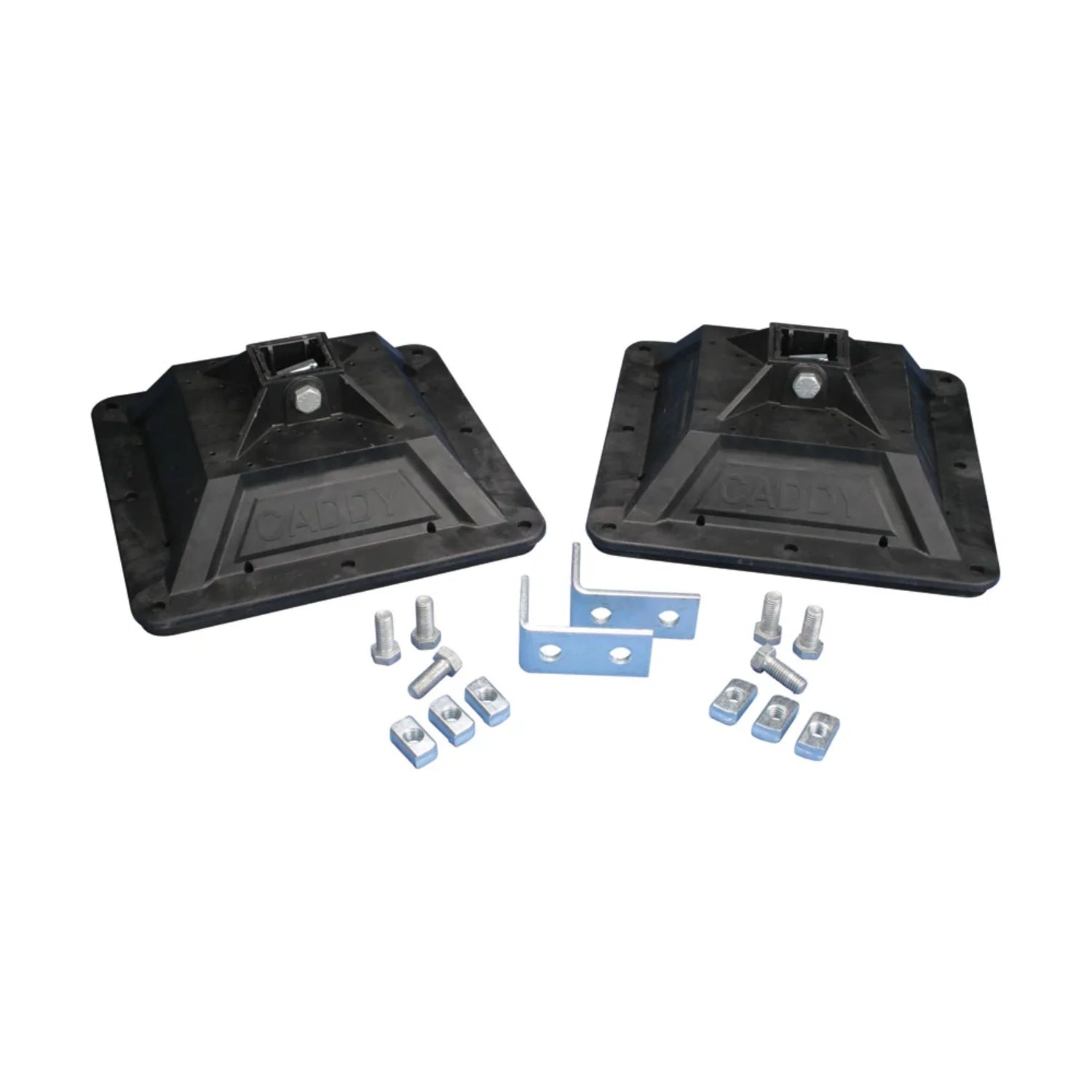

• Includes two post bases with pre-installed mounting hardware, 6 bolts, 6 strut nuts, and 2 L-brackets to complete an H-frame
• Polypropylene/polyethylene construction with foam or rubber bottom; hot-dip galvanized and UV-stabilized hardware for corrosion resistance
• Accepts 1-5/8 x 1-5/8 in strut channels; compatible with single ply, bituminous, metal, and spray foam roof surfaces; static load 1500 lbf (750 lb per post base)

Product Highlights

Rooftop H-frame kit for solar panel support with rubber rooftop interface, 1500 lbf assembled static load capacity, and hot-dip galvanized, UV-stabilized hardware.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: PHKR
• Country of Origin: United States
