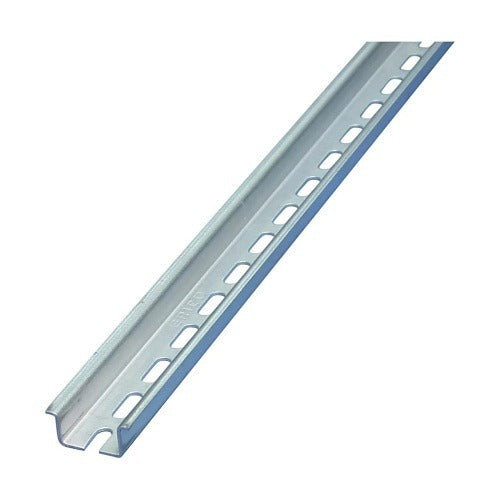

Nvent Caddy PDR7-2M Perforated Symmetric Din Rail

Product Description

The NVENT CADDY PDR7-2M is a perforated symmetric DIN rail used for mounting control components, terminal blocks, circuit breakers, and other DIN-compatible devices inside electrical enclosures and panel assemblies. The symmetric perforation pattern allows for flexible component placement and secure snap-in mounting along the full rail length. Licensed electricians and panel builders install this rail during enclosure assembly or retrofit work on control panels, automation cabinets, and distribution boards. It is sold individually as a single unit.

This DIN rail is suited for use in residential, commercial, and light industrial electrical panel applications. It supports standard 35mm DIN-compatible components including contactors, relays, terminal blocks, and circuit breakers. Panel builders and industrial electricians commonly install it in new-construction control enclosures as well as retrofit and upgrade projects where organized component mounting is required.

Key Features

• Symmetric perforated profile allows mounting from either orientation
• Perforations provide ventilation and reduce rail weight without sacrificing structural integrity
• Compatible with standard snap-in DIN rail-mount devices
• Sold as a single unit for precise quantity ordering

Compatibility

Designed as an OEM-style mounting solution for standard DIN rail-compatible components used in electrical enclosures and raceway or conduit panel assemblies.

Installation Notes

Installation is typically performed by a licensed electrician during panel construction or enclosure assembly. De-energize all circuits and follow lockout/tagout procedures before working inside any live enclosure. Secure the rail to the enclosure backplate using appropriate fasteners before snapping components into place. Follow applicable NEC guidelines for enclosure wiring and component spacing.
