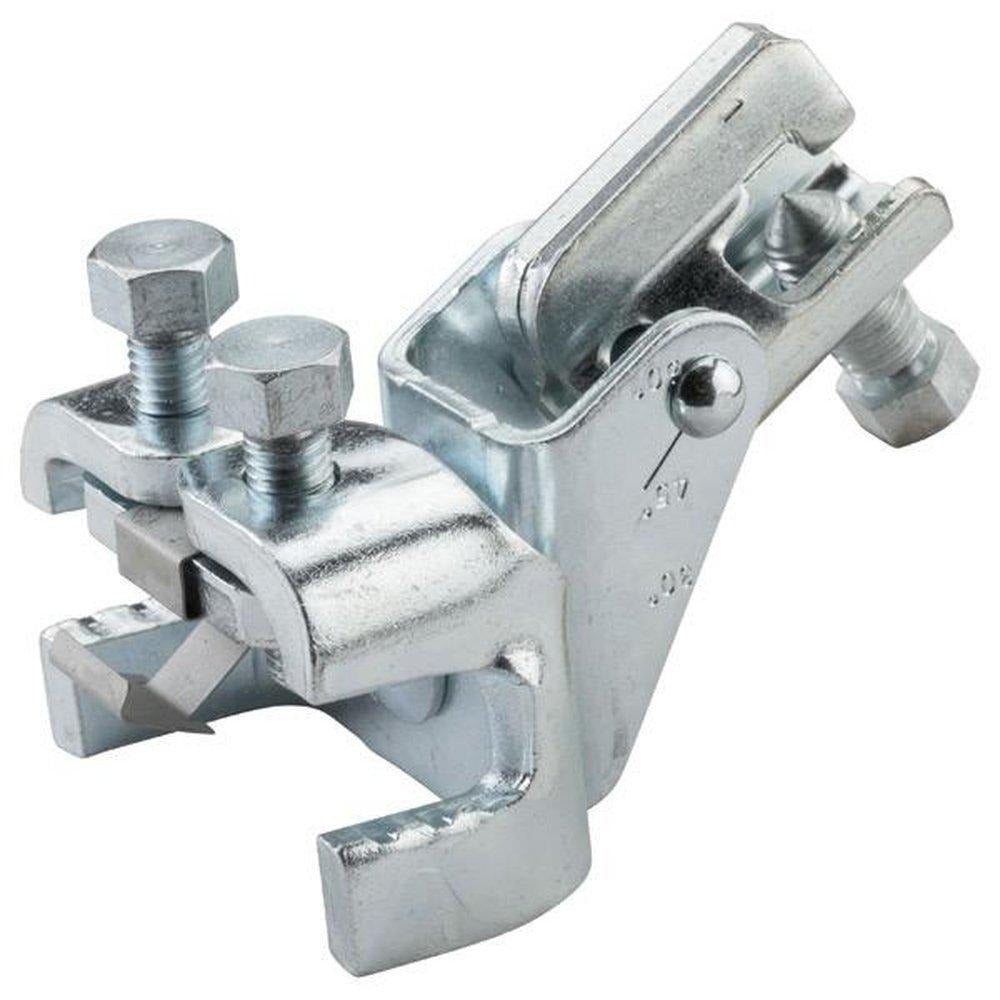

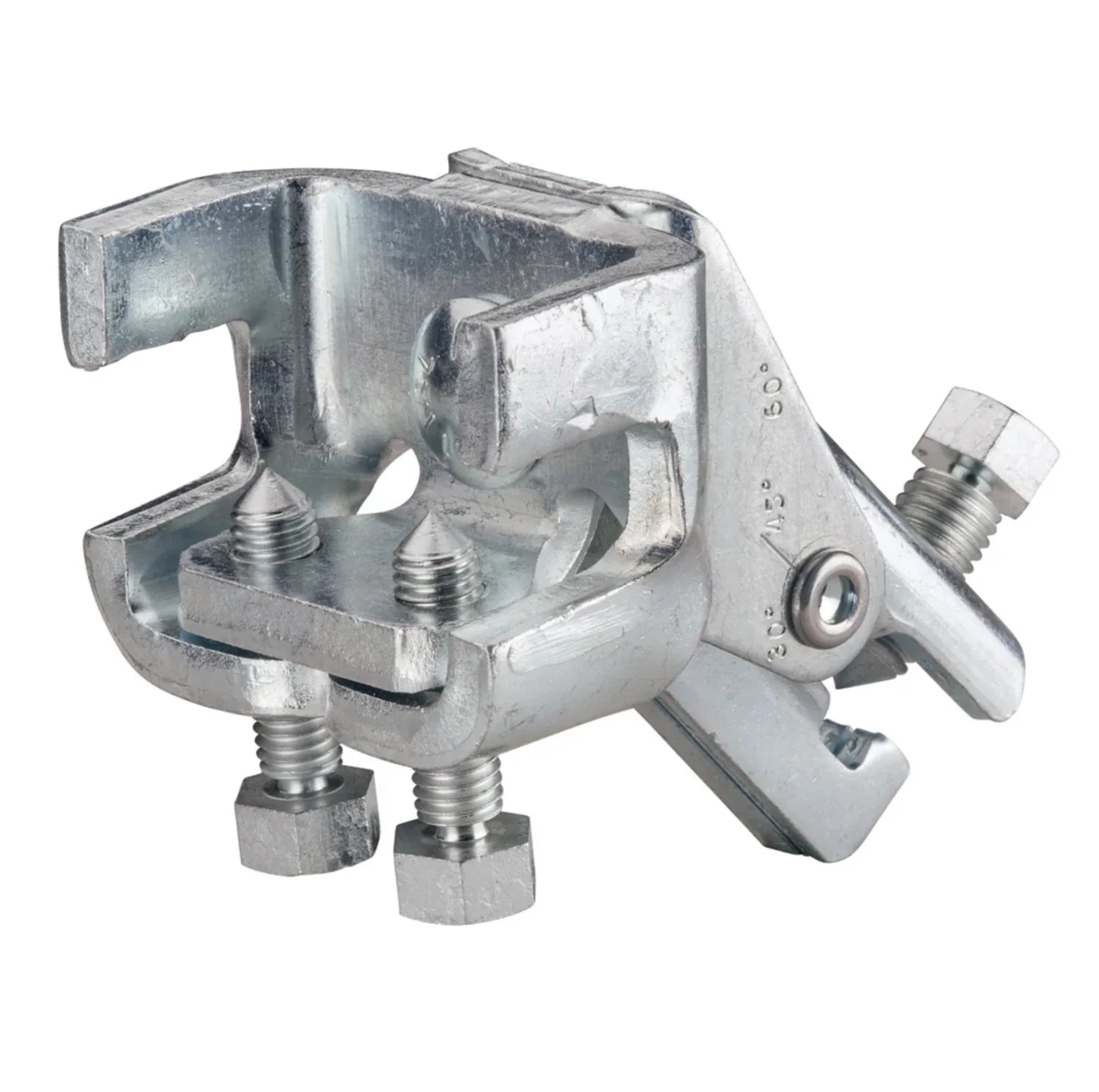

Nvent Caddy CSBS1A Flange Adapter Assembly (45 degrees)

Product Description

The Nvent Caddy CSBS1A is a preassembled steel flange adapter assembly used to fasten seismic braces to steel flanges. It installs on the top or bottom flange of I-beams or bar joists and features an electrogalvanized finish and a low-profile 2-5/8 x 3-5/8 in size to fit between metal deck and steel structure. The unit is configured at a 45 degree angle and is pre-qualified for NFPA 13 seismic applications and FM tested.

• Preassembled steel flange adapter and universal structural bracket; installs on top or bottom flange of I-beams or bar joists
• Electrogalvanized construction, low-profile 2-5/8 x 3-5/8 in size, fits 1/4"–3/4" flange thickness
• Thumb spring retainer, integrated angle gauge, and snap-off bolt head; compatible with 1"–2" brace pipes; NFPA 13 pre-qualified and FM tested

Product Highlights

Preassembled electrogalvanized steel flange adapter for 1/4"–3/4" flanges, 45° angle, 2-5/8 x 3-5/8 in, NFPA 13 pre-qualified and FM tested

Product Information

Standard Information

• Brand: NVENT CADDY
• Manufacturer Part Number: CSBS1A
• Country of Origin: United States
