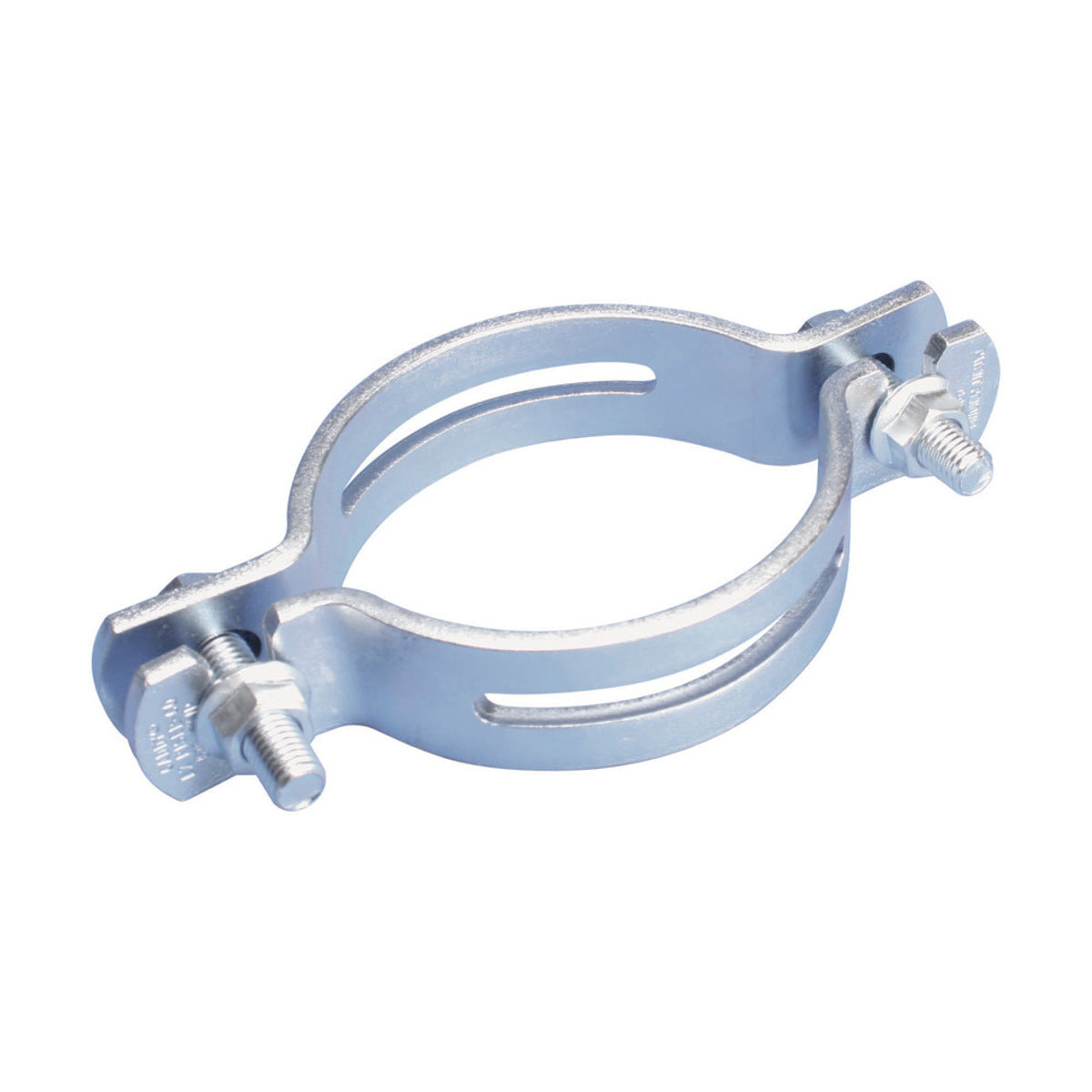

nVent CADDY 5120100EG 512 nVent CADDY EZ Riser for Close Quarters, 1 Pipe, 1.315 OD

Product Description

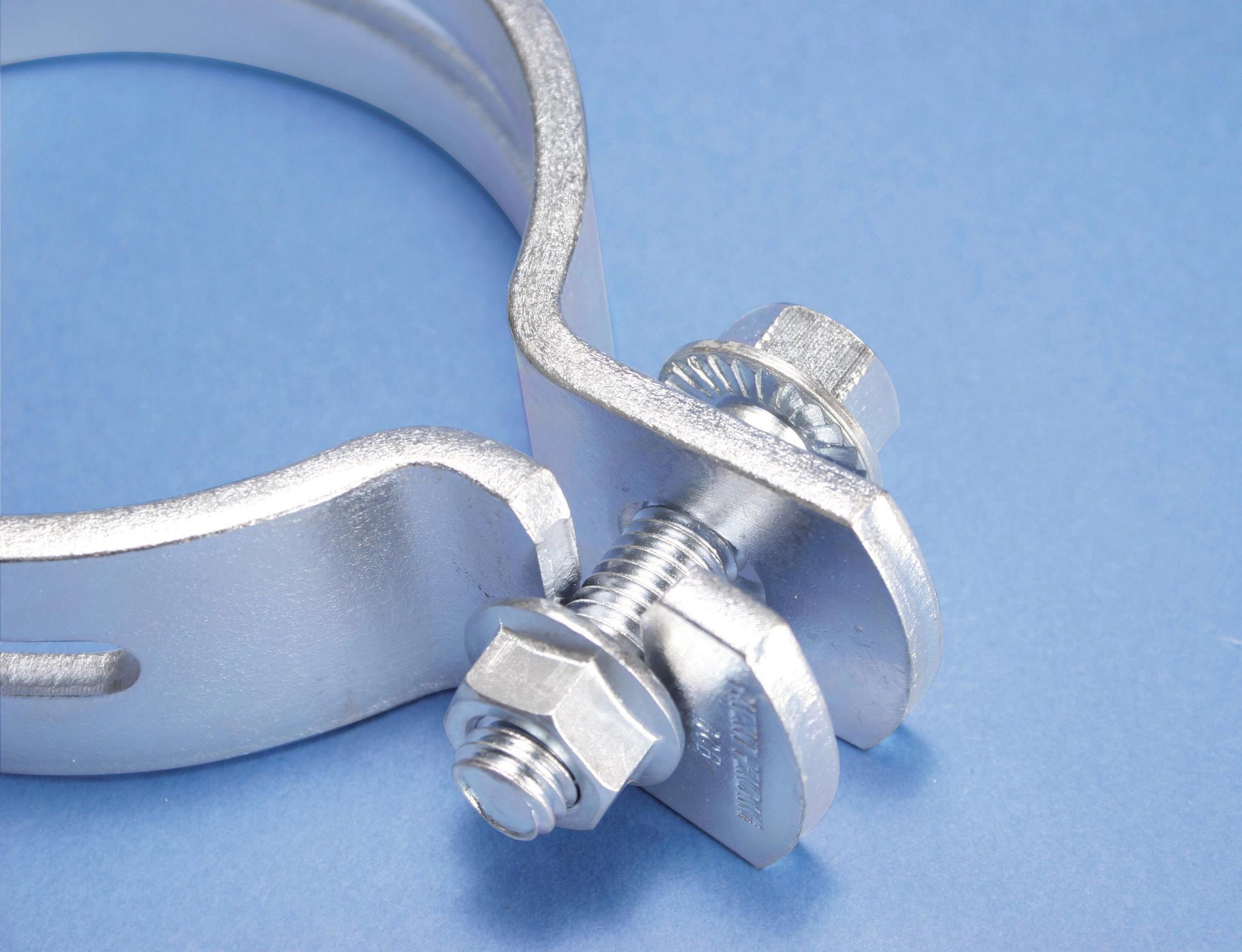

The nVent CADDY EZ riser clamp, MPN 5120100EG, is designed for supporting vertical steel pipes in tight spaces. This product streamlines installation by eliminating the need for hardware removal. It reduces the time needed to install compared to standard riser clamps. The short ear design fits into confined areas where larger clamps cannot be used. It features serrated flange head bolts that require no wrenches, allowing easy tightening from the accessible front side.

• Supports up to 255 pounds.
• Constructed from steel with an electro-galvanized finish.
• Diameter of one inch and outside diameter of one point three one five inches.

Product Highlights

This clamp is ideal for HVAC, plumbing, and refrigeration applications, as well as fire sprinkler installations.

Product Information

Standard Information

• Brand: nVent CADDY
• Part Number: 5120100EG

Technical Specifications

• Pipe Size: 1 inch
• Load Capacity: 255 lb Static
• Material: Steel
• Finish: Electro-Galvanized
• Dimensions: 1 inch H x 5 inches W
• Location: Indoor
• Type: Riser
• UNSPSC Code: 39121311
