nVent CADDY 5101000EG EZ Riser Clamp 10 in Pipe 2500 lb Static Load

Product Description

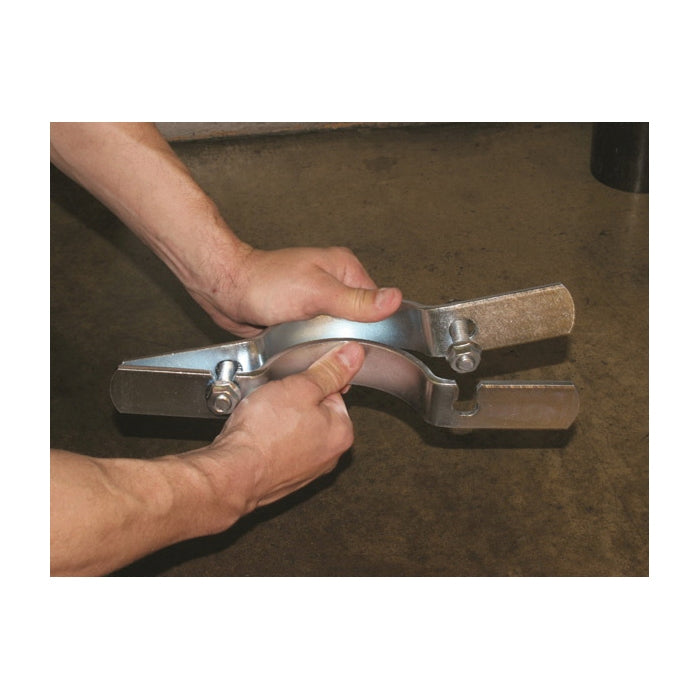

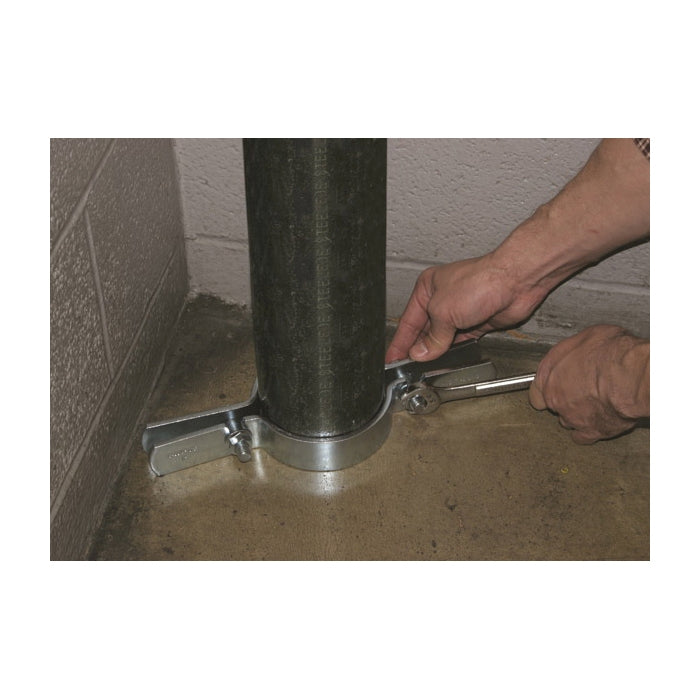

nVent CADDY 5101000EG EZ Riser Clamp is designed for efficient installation of vertical steel pipe risers. This clamp features slotted holes, allowing quick setup without the need to remove hardware, which reduces the risk of losing nuts or bolts. The special serrated flange head bolts require no wrench for tightening, making the installation process straightforward.

• Serrated flange-head bolts simplify installation
• Slotted holes enable assembly without hardware removal
• Electro-galvanized finish provides corrosion resistance

Product Highlights

This riser clamp is ideal for projects involving vertical piping, providing ease of use and reliability.

Product Information

Standard Information

• Manufacturer: nVent CADDY
• Part Number: 5101000EG

Technical Specifications

• Pipe Size: 10 inches
• Load Capacity: 2500 lb Static
• Outside Diameter: 10.75 inches
• Material: Steel
• Finish: Electro-Galvanized
• Dimensions: 2 inches H x 20.625 inches W
• Type: Riser
• Location: Indoor
