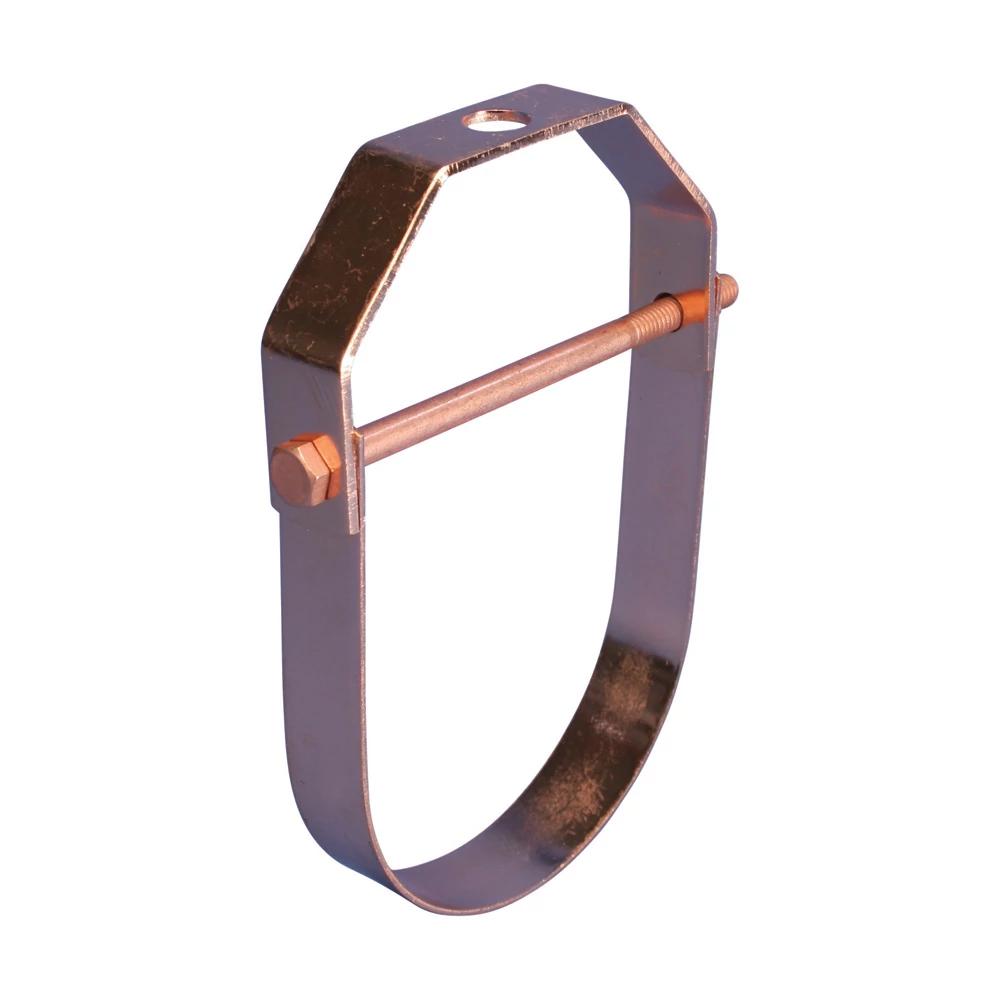

nVent CADDY 4020400CP Clevis Hanger for Copper Tube Light Duty 4 in Pipe Replacement MPN

Product Description

The nVent CADDY 4020400CP is a clevis hanger designed for light-duty applications. It supports four inch pipes and works with half inch rods. This product adheres to U.S. Federal Specification WW-H-171 (Type 12) and Manufacturers Standardization Society (MSS) SP-58 (Type 1). It is suitable for the suspension of stationary non-insulated copper tube lines.

• Supports up to 440 pounds.
• Constructed from steel with an electro-plated copper finish.
• Conforms to relevant federal specifications.

Product Highlights

This clevis hanger is suitable for use in various construction and mechanical applications. It is ideal for maintaining pipe alignment and providing robust support for copper piping systems.

Product Information

Standard Information

• Manufacturer: nVent CADDY
• Part Number: 4020400CP

Technical Specifications

• Dimensions: 6-3/4 in H
• Load Capacity: 440 lb
• Material: Steel
• Finish: Electro-Plated Copper
• Pipe Size: 4 in
• Rod Size: 1/2 in
• Specifications: 4-1/8 in OD
• Suitable For Use With: Suspension of Stationary Non-Insulated Copper Tube Line
