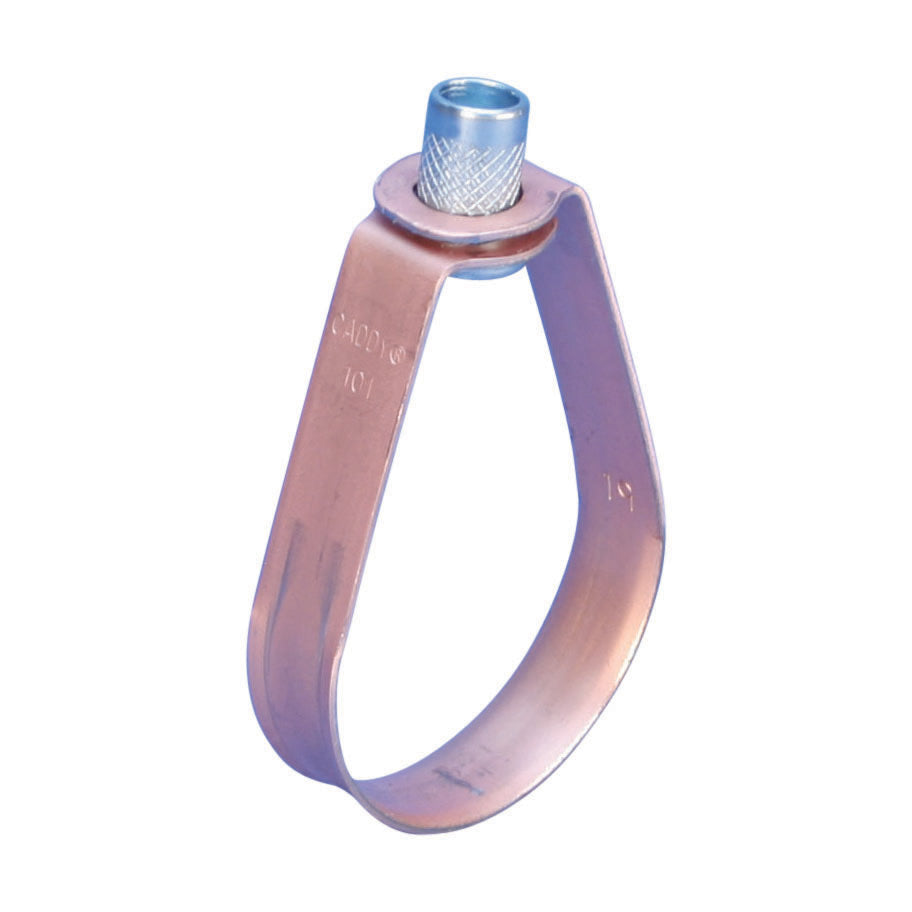

nVent CADDY 1010400CP Loop Hanger for Copper Tube, 4 Pipe, 4 1/8 OD

Product Description

nVent CADDY 1010400CP is a loop hanger designed for supporting copper tube lines. This product is ideal for suspending non-insulated copper piping with a diameter of four and one-eighth inches. It securely holds pipes in place, ensuring safety and stability in various installations.

• Conforms with federal specifications WW-H-171 (Type 10)
• Supports stationary non-insulated copper tubes
• Load capacity of three hundred sixty pounds

Product Highlights

This loop hanger is recommended for use in mechanical assemblies where copper tubes are installed. It allows for robust support and ensures compliance with relevant manufacturing standards.

Product Information

Standard Information

• Manufacturer: nVent CADDY
• Part Number: 1010400CP

Technical Specifications

• Load Capacity: 360 lb
• Pipe Size: 4 in
• Rod Size: 1/2 in
• Material: Steel
• Finish: Electro-Plated Copper/Electro-Galvanized
• Dimensions: 7-1/8 in H
• Specifications: 4-1/8 in OD
• Suitable For Use With: Suspension of Stationary Non-Insulated Copper Tube Line
