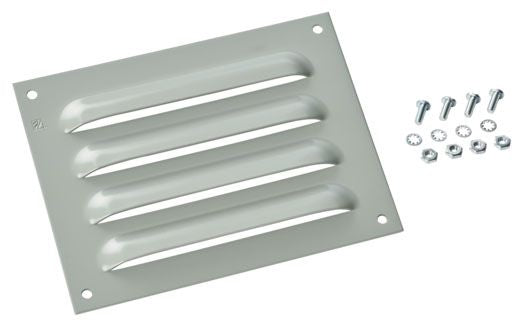

Nvent AVK86 Louver Plate

Product Description

The NVENT AVK86 is a louver plate designed for enclosure ventilation applications. Louver plates allow passive airflow through electrical enclosures, control panels, and junction boxes, helping dissipate heat generated by internal components. This plate mounts into a cutout on the enclosure wall and provides vented coverage without requiring powered fans. It is typically installed by electricians and panel builders working on industrial or commercial electrical enclosures.

The AVK86 is suited for use in electrical enclosures where passive ventilation is required to maintain safe operating temperatures for internal components. Typical install scenarios include control panels, distribution boxes, and equipment housings in light industrial, commercial, and utility environments. The louver design allows air circulation while providing a degree of protection against incidental contact with internal components.

Key Features

• Louver plate design provides passive enclosure ventilation without powered components
• Mounts into standard enclosure wall cutouts for straightforward installation
• Supports heat dissipation in control panels and junction boxes
• Compact and lightweight at 1.7 pounds

Compatibility

Designed as an OEM-style replacement or accessory louver plate for electrical enclosures requiring passive ventilation cutout coverage.

Installation Notes

Installation is typically performed by a licensed electrician or qualified panel builder. De-energize the enclosure and follow lockout/tagout procedures before cutting or modifying any enclosure panel. Verify cutout dimensions match the louver plate specifications before installation. Work should comply with applicable NEC requirements for enclosure integrity and ventilation.

Technical Specifications

• Weight: 1.7 pounds
• UPC: 78351024980

Standard Information

• Brand: NVENT
• Manufacturer Part Number: AVK86
