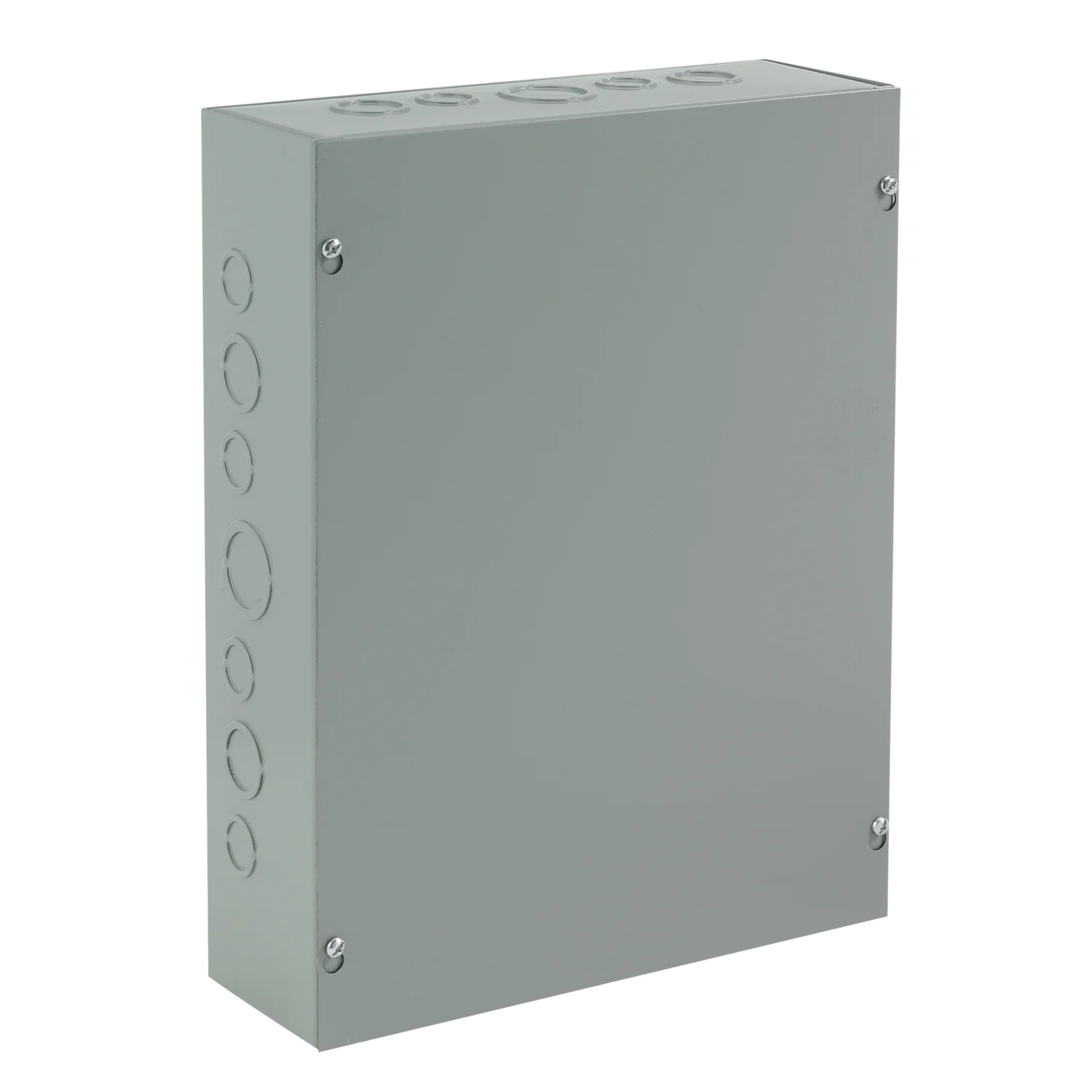

Nvent ASE24X24X6 A90P1 pull box with knockout 24W x 6D x 24H

Product Description

The NVENT ASE24X24X6 A90P1 pull box is a steel screw-cover enclosure designed for commercial and general industrial applications requiring a junction or pull box. Measuring 24 inches in width, 6 inches in depth, and 24 inches in height, it features a NEMA 1/IP30 rating for protection. The enclosure is finished with polyester powder paint and includes various concentric knockouts for cable entry.

• Features unique keyhole screw slots in the cover for secure fastening.
• Equipped with flat, removable covers secured by plated steel screws.
• Includes various sizes of easy-to-remove concentric knockouts on all four sides for flexible cable entry.

Product Highlights

This steel screw-cover enclosure is suitable for commercial and general industrial junction or pull box applications.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: ASE24X24X6
• Country of Origin: Mexico

Technical Specifications

• Application: Commercial and General Industrial Applications
• Cable Entry Size: (16) 3/4 to 1 in Knockout, (16) 1/2 to 3/4 in Knockout, (4) 1 to 1-1/4 in Knockout Bottom/Sides/Top
• Color: Gray
• Cover Type: Screw
• Depth: 6 in
• Finish: Polyester Powder Painted
• Height: 24 in
• Material: Steel
• Mounting Type: Flush
• NEMA Rating: NEMA 1/IP30
• Series: A90P1
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 40 File No. E27525|IEC 60529|UL 50/50E Listed File No. E27525
• Width: 24 in
• Article Number: 43290
• Color Code: ANSI 61
• Body Thickness: 14ga
• Door Thickness: 16ga
• Knockouts Included: Yes
• Cover Screw Quantity: 4
• Knockout Pattern Along A Sides: A-B-C-D-E-F-G-H-I
• Knockout Pattern Along B Sides: A-B-C-D-E-F-G-H-I
• UPC: 783510432904
• Sub Brand: Hoffman
• ECCN: EAR99
• Country of Origin: MX - Mexico
• UNSPSC: 39121303
