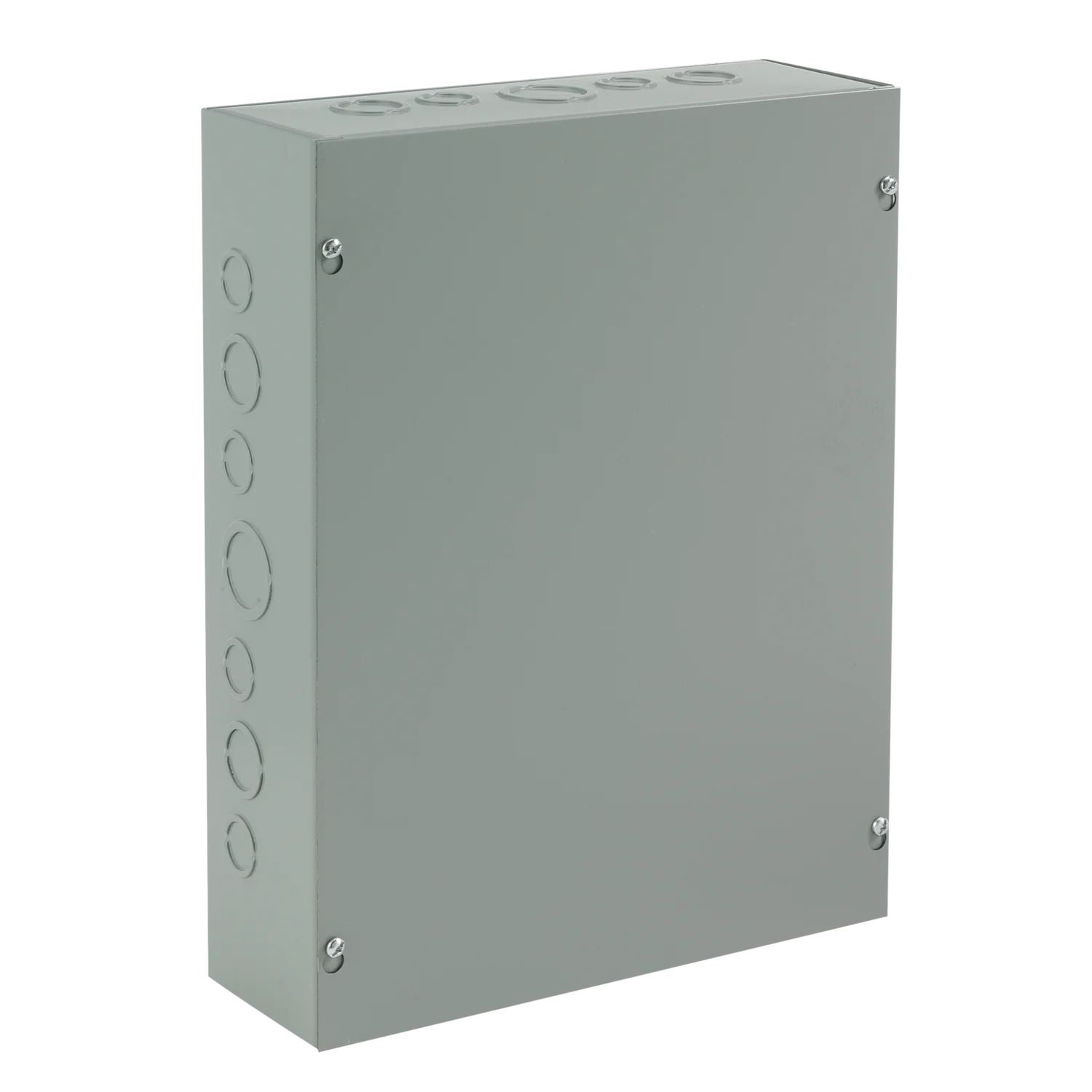

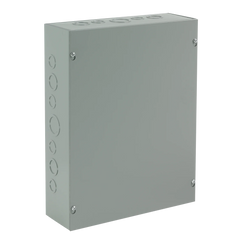

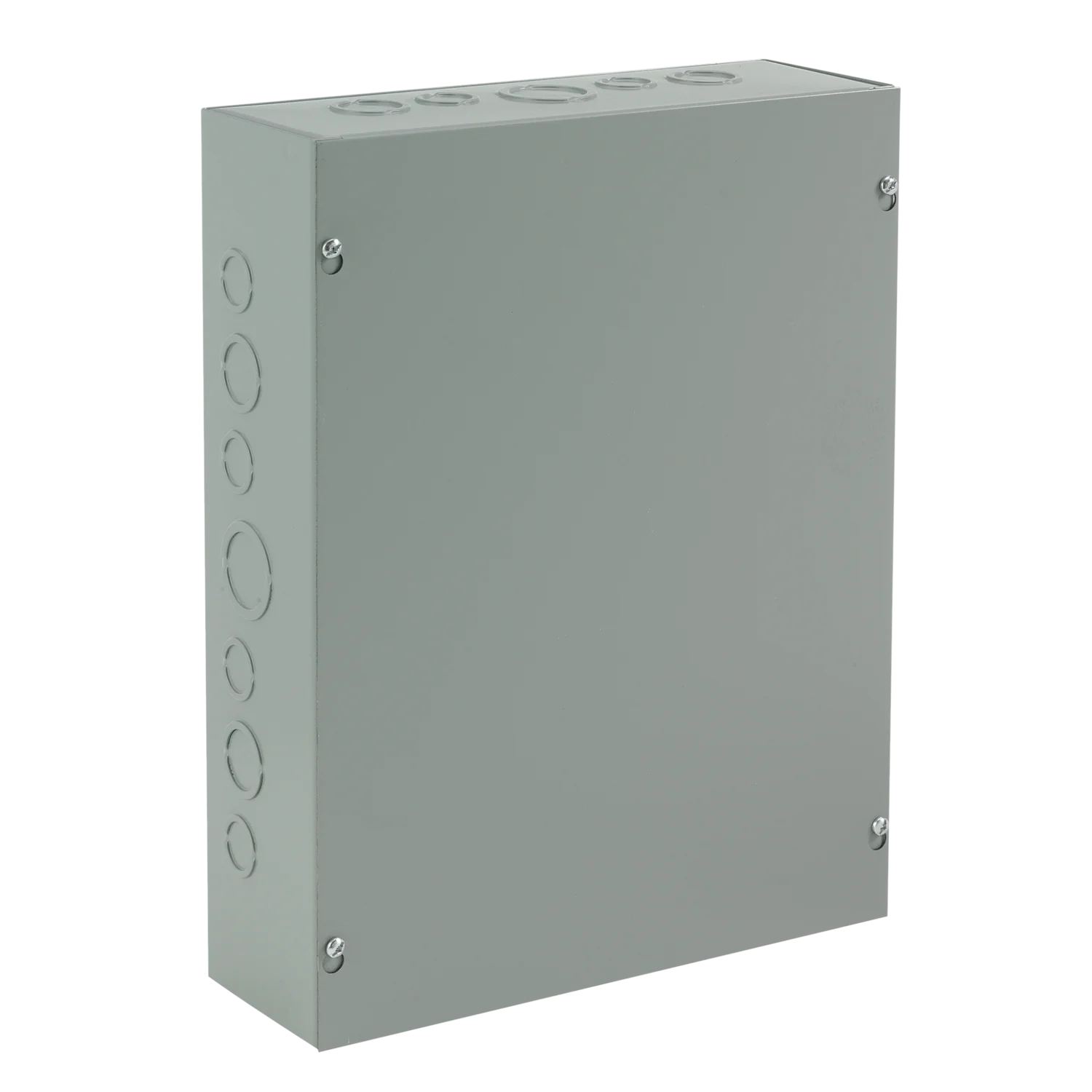

Nvent ASE18X18X6 A90P1 Pull Box With Knockout 18 in W x 6 in D x 18 in H

Product Description

The NVENT ASE18X18X6 is an A90P1 series pull box with knockouts, designed for commercial and general industrial applications requiring a junction or pull box. This 18-inch width, 6-inch depth, 18-inch height enclosure features a screw cover and NEMA 1/IP30 rating. Constructed from polyester powder painted steel, it includes various concentric knockouts for cable entry and is suitable for flush mounting.

• Unique keyhole screw slots in the cover for secure closure.
• Flat, removable covers fastened with plated steel screws.
• Provision for grounding to ensure electrical safety.

Product Highlights

Steel enclosure with screw cover and concentric knockouts for versatile cable management in industrial settings.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: ASE18X18X6

Technical Specifications

• Application: Commercial and General Industrial Applications
• Cable Entry Size: (16) 3/4 to 1 in Knockout, (16) 1/2 to 3/4 in Knockout, (4) 1 to 1-1/4 in Knockout Bottom/Sides/Top
• Color: Gray
• Cover Type: Screw
• Depth: 6 in
• Finish: Polyester Powder Painted
• Height: 18 in
• Manufacturer Part Number: ASE18X18X6
• Material: Steel
• Mounting Type: Flush
• NEMA Rating: NEMA 1/IP30
• Series: A90P1
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 40 File No. E27525|IEC 60529|UL 50/50E Listed File No. E27525|RoHS Complaint
• Width: 18 in
• Article Number: 43270
• Color Code: ANSI 61
• Body Thickness: 16ga
• Door Thickness: 16ga
• Knockouts Included: Yes
• Cover Screw Quantity: 4
• Knockout Pattern Along A Sides: A-B-C-D-E-F-G-H-I
• Knockout Pattern Along B Sides: A-B-C-D-E-F-G-H-I
• UPC: 783510432706
• Type: Screw Cover, Type 1, with Knockouts
• Catalog ID: HOFASE18X18X6
• SKU: HOFASE18X18X6
