nVent A808SC HOF SCR-CVR JIC BOX

Product Description

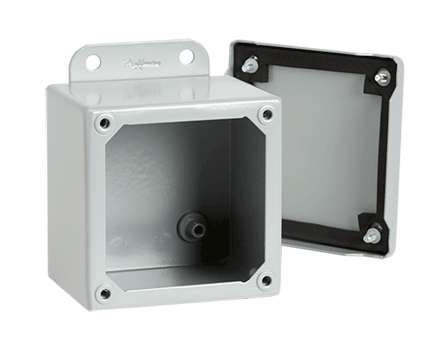

The nVent A808SC is a Hoffman Junction Box designed for various applications where durability and robust protection are required. This box measures eight inches in height, eight inches in width, and four inches in depth. It features a screw/solid cover that provides a secure seal while allowing easy access for modifications.

• Constructed from steel with a gray polyester powder finish
• NEMA 12/IP65 rating for protection against dust and water
• Wall mounting capability with external welded brackets for easy installation

Product Highlights

This junction box is suitable for indoor and outdoor use in many electrical applications, ensuring safety and reliability.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351054220

Technical Specifications

• Application: For broad range of applications, this enclosure's screw cover is secured in each corner for a positive seal but easily removed for modifications
• Color: Gray
• Cover Type: Screw/Solid
• Depth: 4 in
• Finish: Polyester Powder Painted
• Height: 8 in
• Manufacturer Part Number: A808SC
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 12/IP65
• Panel Size: 6.75 x 6.88 in
• Series: A51SC
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94, CSA File No. 42184, IEC 60529, UL 50/50E Listed
• Width: 8 in
