nVent A806SC A806SC HOF SCR-CVR BOX

Product Description

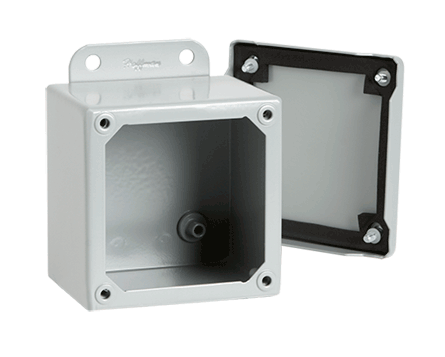

The nVent A806SC Junction Box is designed for various electrical applications. It measures eight inches in height, six inches in width, and three and a half inches in depth. This box has a NEMA 12/IP65 rating, making it suitable for use in harsh environments. The enclosure features a screw/solid cover design and is made of durable steel. It is wall mountable for easy installation.

• Features a secure screw cover for reliable sealing.
• Weldnuts included for mounting optional panels.
• External mounting brackets simplify installation.

Product Highlights

This junction box is ideal for multiple applications and provides protection for electrical components.

Product Information

Standard Information

• Manufacturer: nVent
• MPN: A806SC

Technical Specifications

• Application: For broad range of applications
• Color: Gray
• Cover Type: Screw/Solid
• Depth: 3-1/2 inches
• Finish: Polyester Powder Painted
• Height: 8 inches
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 12/IP65
• Panel Size: 6.75 x 4.88 inches
• Series: A51SC
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E27525 | CSA File No. 42184 | IEC 60529 | UL 50/50E Listed File No. E27525
• Width: 6 inches
