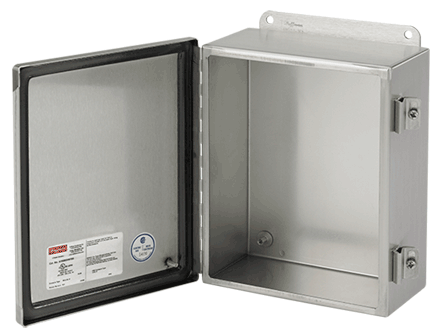

nVent A8064CHNFSS Junction Box 8X6X4 NEMA 4X/IP66 A8064CHNFSS

Product Description

The nVent A8064CHNFSS Junction Box offers a robust solution for both indoor and outdoor applications. It features an eight-inch height, six-inch width, and four-inch depth. This unit has a NEMA 4X/IP66 rating, ensuring reliable performance in harsh environments. The junction box includes a continuous hinged cover and screw clamp for secure closure.

• Constructed with 304 stainless steel
• Suitable for wall mounting
• Includes a seamless foam-in-place gasket for a reliable seal

Product Highlights

This junction box combines durability and functionality to protect electrical components. It is suitable for applications requiring an enclosure that withstands corrosive and wet conditions.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351056270

Technical Specifications

• Application: Indoor and Outdoor Applications
• Color: Gray
• Cover Type: Continuous Hinged/Screw Clamp
• Depth: 4 inches
• Finish: #4 Smooth Brushed
• Height: 8 inches
• Material: 304 Stainless Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4X/IP66
• Panel Size: 6.75 x 4.88 inches
• Series: A51S
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94, CSA File No. 42184, IEC 60529, UL 50/50E Listed File No. E27567
• Width: 6 inches
