Nvent A4424RT Wiring Trough 4 x 4 x 24 in

Product Description

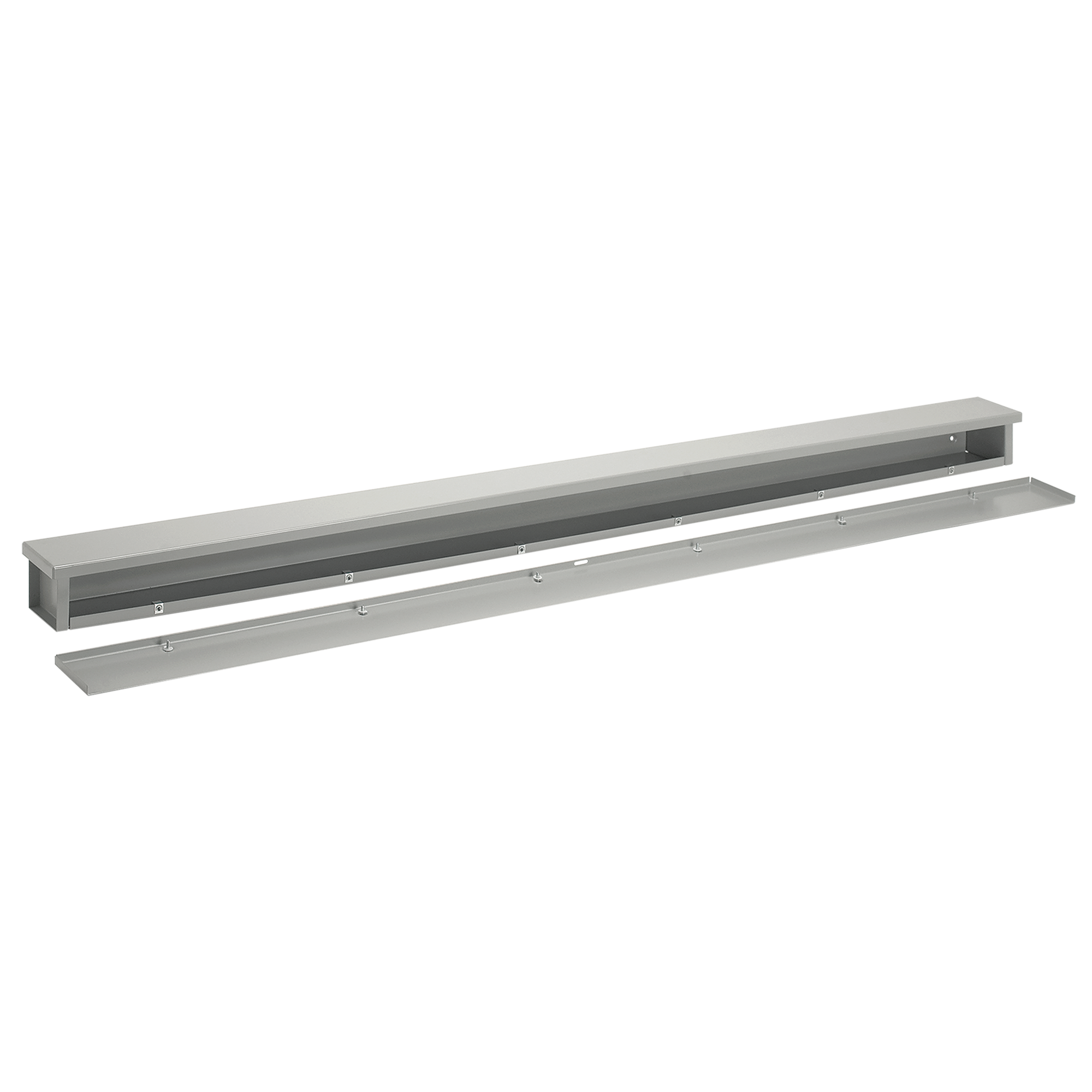

Nvent A4424RT is a Hoffman F40PT series wiring trough measuring 24 in long by 4 in wide by 4 in high, designed for applications subjected to moisture. The steel trough features a slip-on removable cover, drip-shield top and seam-free sides, and embossed mounting holes on the back. It is raintight to NEMA 3R standards and provides provision for padlocking without gasketing or knockouts.

• Steel construction with slip-on removable cover and drip-shield top
• Raintight design meeting NEMA 3R and listed to UL 870 / cUL CSA C22.2
• Embossed rear mounting holes and provision for padlocking; no knockouts or gasketing

Product Highlights

NEMA 3R steel wiring trough, 24 x 4 x 4 in, slip-on cover, padlock provision

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A4424RT

Technical Specifications

• Brand: Nvent
• Manufacturer Part Number: A4424RT
• Series: F40PT
• Type: Wiring trough / Trough
• Material: Steel (plated)
• Gauge: 16 or 14 gauge plated steel
• Dimensions (L x W x H): 24 in x 4 in x 4 in
• Length: 24 in
• Width: 4 in
• Height: 4 in
• Cover Type: Slip-on removable cover
• Finish: Polyester powder painted
• NEMA Rating: NEMA 3R
• Standards / Approvals: UL 870 (File No. E27524); cUL CSA C22.2 No. 26; IEC 60529
• Application: For applications subjected to moisture / outdoor raintight use
• Mounting: Embossed mounting holes on back of enclosure
• Security: Provision for padlocking (padlock hasp kit available)
• Gasketing / Knockouts: No gasketing; no knockouts
• Finish Color Code: ANSI 61 (gray)
• Weight: 9.5 lb
• Bulletin Number: F40PT
• UPC / GTIN: 783510382100
