nVent A16H12ALP HOF NEMA-4 ENCL

Product Description

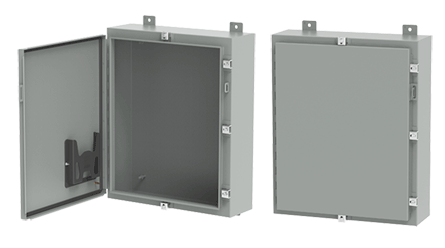

The nVent HOFFMAN A16H12ALP is a one-door steel enclosure designed for both indoor and outdoor applications with a NEMA 4/IP66 rating. It measures sixteen inches in length, twelve inches in width, and six inches in depth. This enclosure features a clamp and continuous hinged cover that provides reliable protection for internal equipment.

• Durable steel construction
• NEMA 4/IP66 rating for environmental protection
• Fully hinged door for easy access

Product Highlights

This enclosure is suitable for commercial and industrial use, protecting sensitive equipment from dust and water ingress.

Product Information

Standard Information

• Manufacturer: nVent
• UPC: 78351024320

Technical Specifications

• Application: Indoor/Outdoor Applications
• Color: Gray
• Cover Type: Clamp/Continuous Hinged
• Depth: 6 in
• Finish: Polyester Powder Painted
• Length: 16 in
• Lock: Hasp and Staple/Padlock
• Material: Steel
• Mounting Type: Wall
• NEMA Rating: NEMA 4/IP66
• Panel Size: 9 in W x 13 in H
• Series: A4 Series
• Standards/Approvals: cUL Listed per CSA C22.2, IEC 60529, RoHS Compliant
• Type: 1-Door
• Width: 12 in
