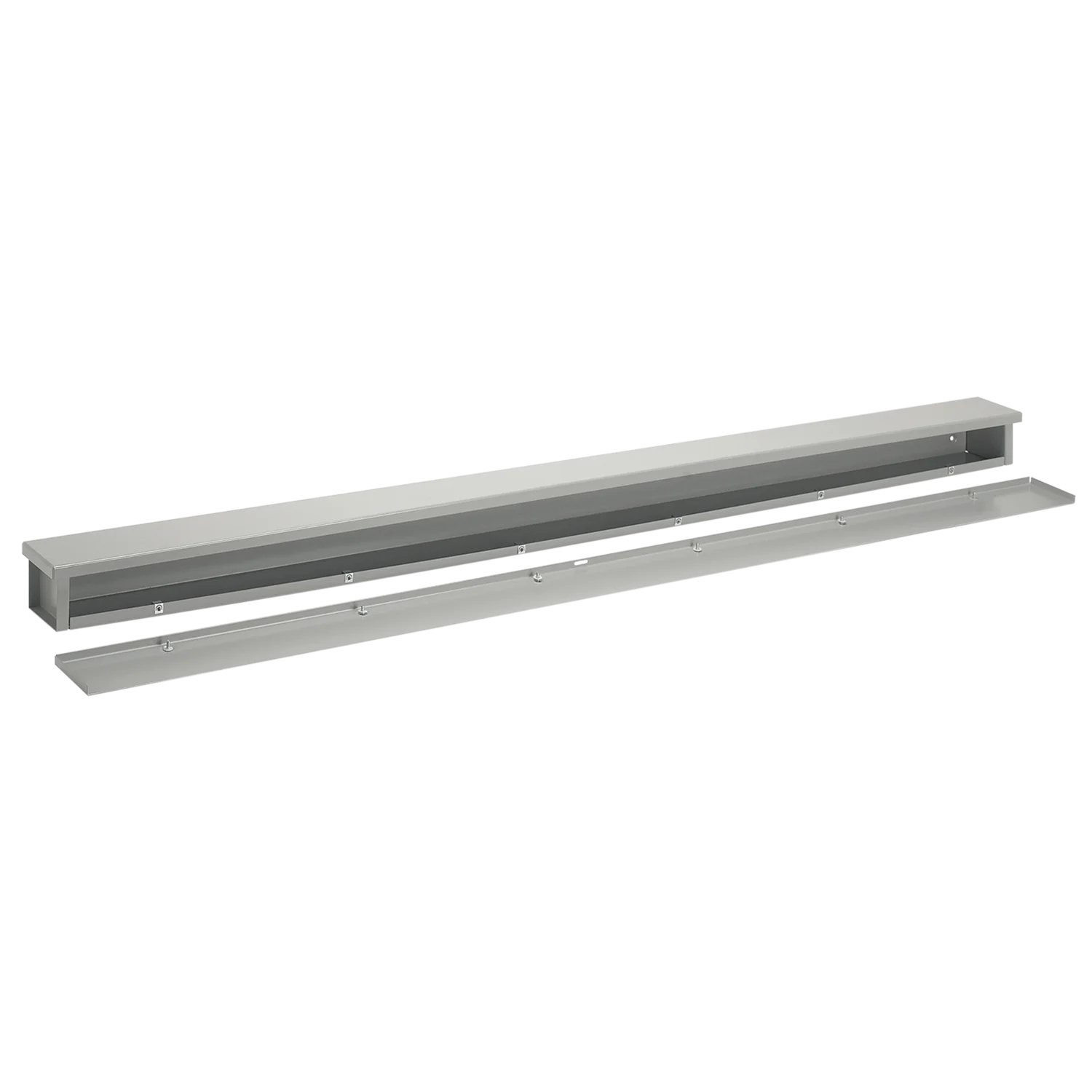

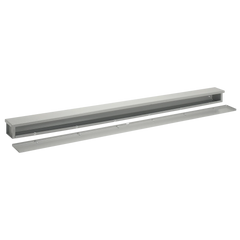

Nvent A101036RT Hof 10x10 Type 3R Trough 3 ft

Product Description

The Nvent A101036RT is a Hof F40PT series wiring trough that provides a NEMA 3R raintight steel enclosure for routing and protecting wire and cable distribution, junctions, and terminations in outdoor or moist environments. The 10 in x 10 in x 36 in trough features a slip-on removable cover, drip shield top, and seam-free sides. It includes embossed rear mounting holes, provision for padlocking, and is available in 14 or 16 gauge plated steel with a polyester powder painted finish.

• NEMA 3R raintight steel enclosure for outdoor or moist locations
• 10 in x 10 in x 36 in dimensions; available in 14 or 16 gauge plated steel
• Slip-on removable cover, drip shield top, seam-free sides, embossed rear mounting holes, provision for padlocking; no knockouts

Product Highlights

Raintight steel wiring trough for routing and protecting wire and cable distribution in outdoor or damp locations

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: A101036RT
• Country of Origin: Mexico

Technical Specifications

• Brand: Nvent
• Manufacturer Part Number: A101036RT
• Series: F40PT
• Type: Wiring trough (Trough)
• NEMA Rating: NEMA 3R
• Material: Steel (plated/mild steel)
• Finish: Polyester powder painted finish
• Cover Type: Slip-on removable
• Dimensions: 10 in x 10 in x 36 in
• Height: 10 in
• Width: 10 in
• Length: 36 in (3 ft)
• Gauge: 14 or 16 gauge plated steel
• Mounting Type: Embossed mounting holes on back
• Knockouts: None
• Padlock Provision: Provision for padlocking (padlock hasp kit available)
• Drip Shield: Drip shield top
• Seam Construction: Seam-free sides, front and back
• Standards/Approvals: UL 870 (File No. E27524); cUL (File No. E27524/EEMAC); CSA C22.2 No. 26; IEC 60529; EU Certified
• Bulletin Number: F40PT
• Article Number: 43019
• UPC: 783510430191
• Country of Origin: Mexico
