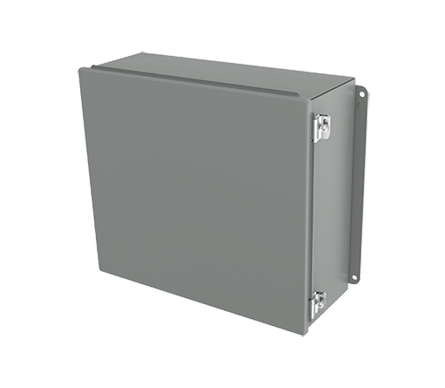

nVent A1008CHS HOF Piano Hinge JIC Box 10 in H x 8 in W x 4 in D

Product Description

The nVent A1008CHS is a Hoffman Junction Box designed for secure closures and a variety of uses. This model has dimensions of ten inches in height, eight inches in width, and four inches in depth. It features a continuous hinged and screw clamp cover, ensuring dependable access and protection. The box is rated NEMA 12/13/IP65, making it suitable for harsh environments.

• Continuous hinged cover for easy access
• Secured with screw-down clamps
• Constructed from durable steel

Product Highlights

This enclosure is suited for wall mounting and is built to withstand external elements. The polyester powder coating provides added resistance and durability, making it appropriate for industrial applications.

Product Information

Standard Information

• Manufacturer: nVent
• Manufacturer Part Number: A1008CHS

Technical Specifications

• Height: 10 inches
• Width: 8 inches
• Depth: 4 inches
• NEMA Rating: NEMA 12/13/IP65
• Material: Steel
• Mounting Type: Wall
• Finish: Polyester Powder Painted
• Panel Size: 8.75 x 6.88 inches
• Series: A51CH
• Standards/Approvals: cUL Listed per CSA C22.2 File No. 94 File No. E27567|CSA File No. 42184|IEC 60529|UL 50/50E Listed File No. E27567
