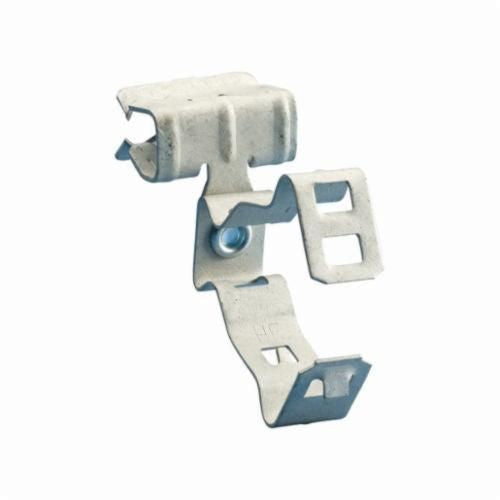

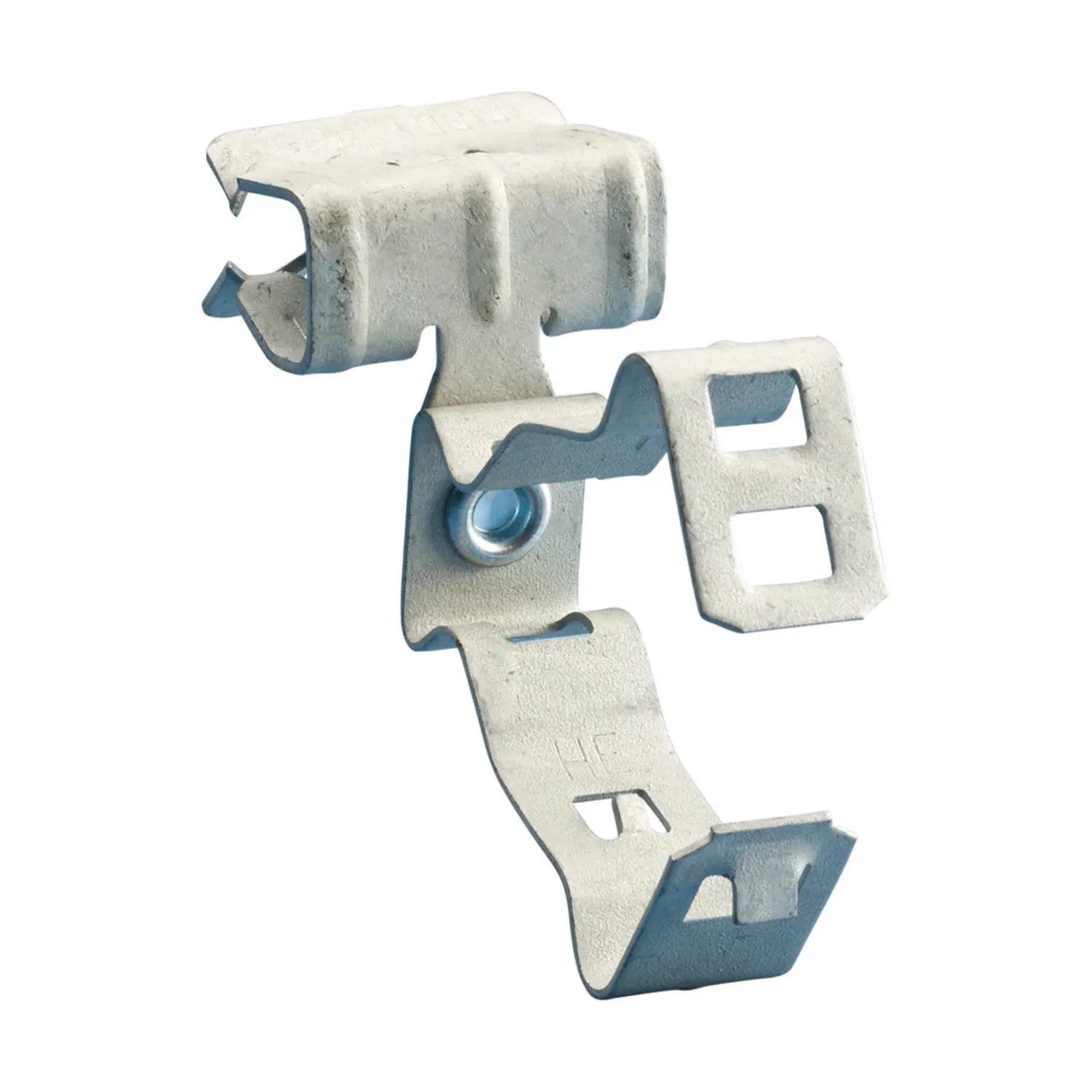

Nvent 6M24SM H-MSM Conduit/Pipe to Flange Clip 14-2 To 12-3 MC/AC

Product Description

The NVENT 6M24SM H-MSM Conduit/Pipe to Flange Clip is designed to secure conduit, pipe, or cable to beam flanges. It features a snap close clip that pivots 360 degrees and can be installed with just a hammer. It is suitable for 3/8" MC/AC or 14 to 18 mm cable or conduit to 1/8-1/4" or 3 to 8 mm flange, side mount.

• Supports conduit/pipe or cable from beam flanges
• Snap close clip pivots a full 360 0
• Requires only a hammer to install

Product Highlights

Easy hammer-on method to secure conduit from a structural steel element with a snap close fastener.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 6M24SM
• Country of Origin: US

Technical Specifications

• Material: Spring Steel
• Finish: Caddy Armor
• Rigid Conduit/Pipe Size: 3/8"
• Flexible Conduit Size: 3/8"
• MC/AC Cable Size: 14-2 to 12-3
• Outer Diameter (OD): 0.550" - 0.71"
• Flange Thickness (FT): 1/8"
• Static Load (F): 25lb
• Trade Size: 3/8IN
• Application: Datacom and Low Voltage and Electrical Applications
• Catalog Description (MFR): H-MSM Conduit/Pipe to Flange Clip, Side Mount, Spring Steel, 14-2 to 12-3 MC/AC, 1/8" 1/4" Flange
• Conduit Size: 3/8 in
• Label Description (MFR): SIDE MOUNT 3/8" MC/AC, 1/8-1/4
• Load Capacity: 25 lb Static
• Mounting Type: Side
• Outside Diameter: 0.551 to 0.709 in
• Product Name: Conduit/Pipe to Flange Clip
• Short Description: SIDE MOUNT 3/8" MC/AC, 1/8-1/4
• Special Features: CONDUIT CLIP,1 IN CONDUIT,1/8 TO 1/4 IN FLANGE
• Standard: BABA Compliant, cULus Listed, RoHS Compliant
• Type: Snap Close
• Wire Size: 14/2 to 12/3 AWG
• Applications: Datacom and Low-Voltage, Electrical
• Brand: Caddy
• Sub Brand: CADDY
• Flange Size: 1/8 to 1/4 in
• Standard & Approvals: cULus Listed, RoHS Exempted
• Suitable For Use With: 14-2 to 10-4 AWG MC/AC Cable
• Catalog ID: CAD6M24SM
• Model: 6M24SM
• Country of Origin: United States
