Nvent 65PLUS Cadweld Plus Welding Material F20

Product Description

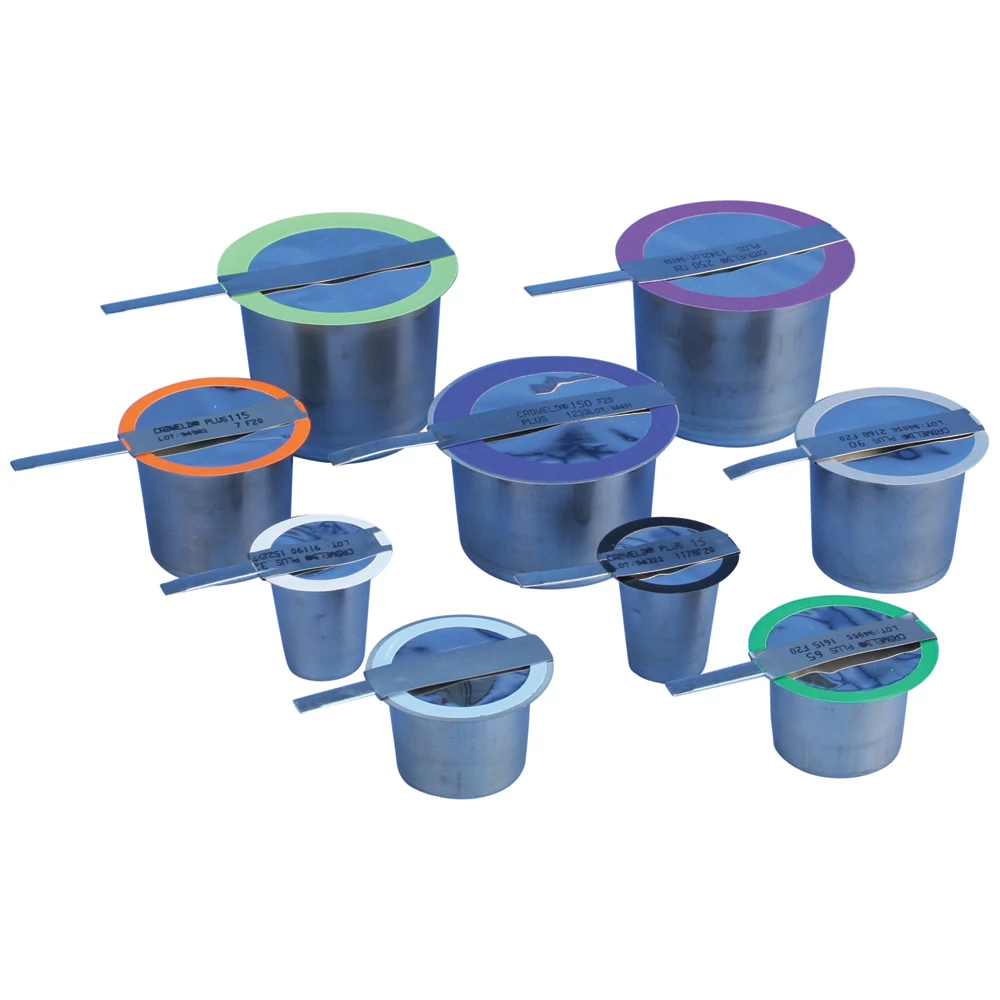

The NVENT 65PLUS is a premeasured, self-contained exothermic welding material cup used in the Cadweld Plus system. Each cup contains a pre-loaded charge of welding material that is placed directly into a compatible mold and ignited using the ERICO Cadweld Plus Impulse Exothermic Welding Control Unit. The 65PLUS is identified by its dark green color coding and is designated for F20 mold applications. This product is used by licensed electricians and grounding specialists performing exothermic welds on grounding systems, bonding connections, and similar permanent electrical connections.

The 65PLUS Cadweld Plus cup is suited for use in residential, commercial, and industrial grounding applications where permanent, maintenance-free welded connections are required. The self-contained format eliminates the need to measure or handle loose welding powder, making it appropriate for field use where consistency and speed are priorities. Exothermic connections made with this system meet the conductivity and mechanical strength requirements typical of grounding electrode and bonding applications.

Key Features

• Premeasured, self-contained cup — no loose powder handling required
• Designated for F20 mold applications (65 Plus Shot)
• Dark green color coding for quick field identification
• Compatible with the ERICO Cadweld Plus Impulse Exothermic Welding Control Unit
• Produces a permanent, maintenance-free welded electrical connection

Compatibility

Designed for use with the ERICO Cadweld Plus system and compatible F20 exothermic welding molds. Requires the Cadweld Plus Impulse Exothermic Welding Control Unit for ignition.

Installation Notes

Installation is performed by licensed electricians or qualified grounding specialists familiar with exothermic welding procedures. The work area must be dry and clear of combustible materials before igniting the welding charge. Follow all applicable NEC requirements for grounding and bonding connections when selecting connection type and placement. Do not substitute the ignition source — use only the ERICO Cadweld Plus Impulse Exothermic Welding Control Unit as specified for this cup format.

Technical Specifications

• Shot Designation: 65 Plus Shot
• Mold Series: F20
• Color Code: Dark Green
• UPC: 782856512844

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 65PLUS
