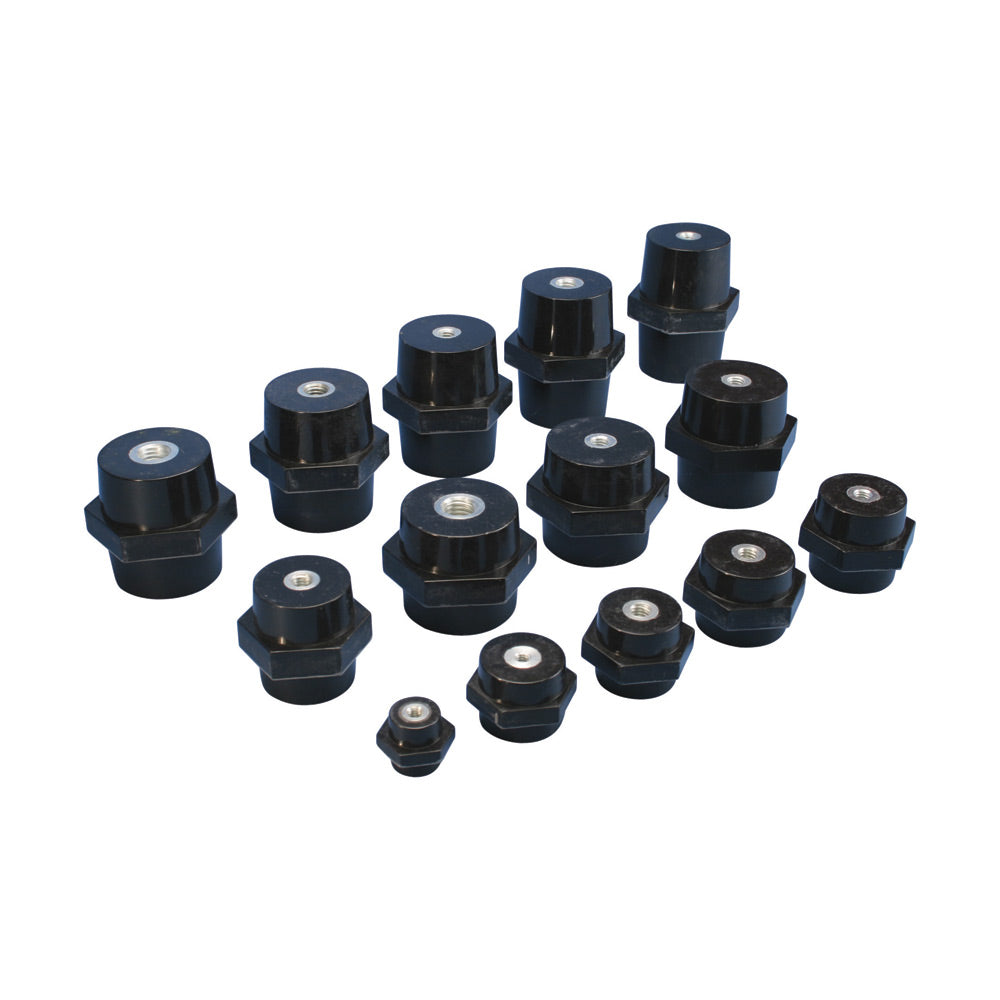

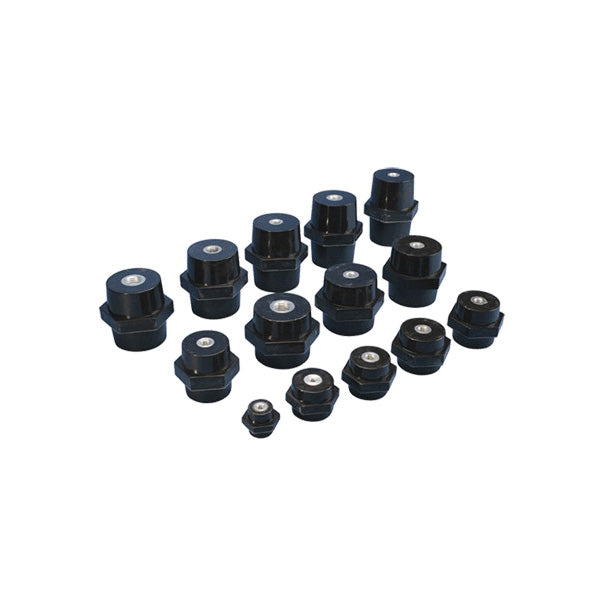

nVent 559671 nVent ERIFLEX 559671 ERI4 ISO/Imperial Thread Low Voltage Insulator 2000 VAC

Product Description

The nVent ERIFLEX 559671 is a low voltage insulator designed for ISO/Imperial threads, suitable for applications requiring reliable electrical insulation. This insulator is rated for 2000 VAC and features a robust material composition of polyester and steel for enhanced durability.

• Series: ERI4, providing the stability needed for various electrical components
• Rated for 3000 lb and 1200 lb static load, ensuring it can handle significant mechanical stress
• Dimensions: 1-3/4 in height and 2 in width, designed for efficient space utilization

Product Highlights

This insulator is recognized for its excellent electrical and mechanical properties, providing lasting performance in utility applications.

Product Information

Standard Information

• Manufacturer: nVent
• Brand: nVent ERIFLEX

Technical Specifications

• Type: ISO/Imperial Thread
• Finish: Electro-Galvanized
• Series: ERI4
• Specifications: 3000 lb, 1200 lb Static Load, 1/2 in Thread Depth
• Voltage Rating: 2000 VAC
• Material: Polyester/Steel

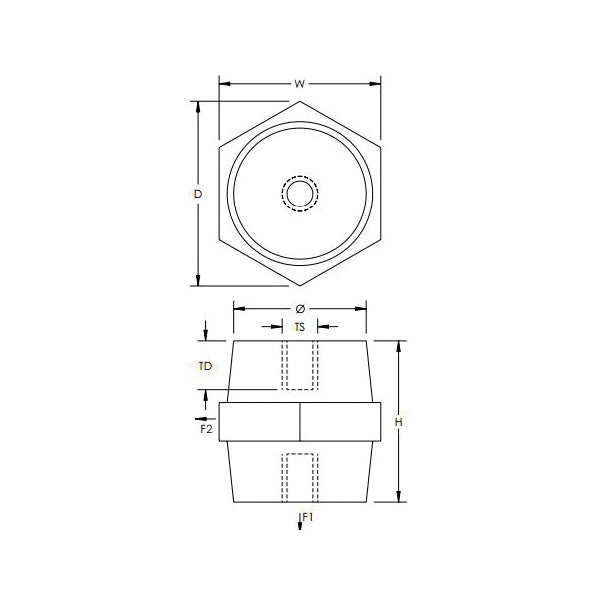

• Dimensions: 1-3/4 in H x 2 in W
