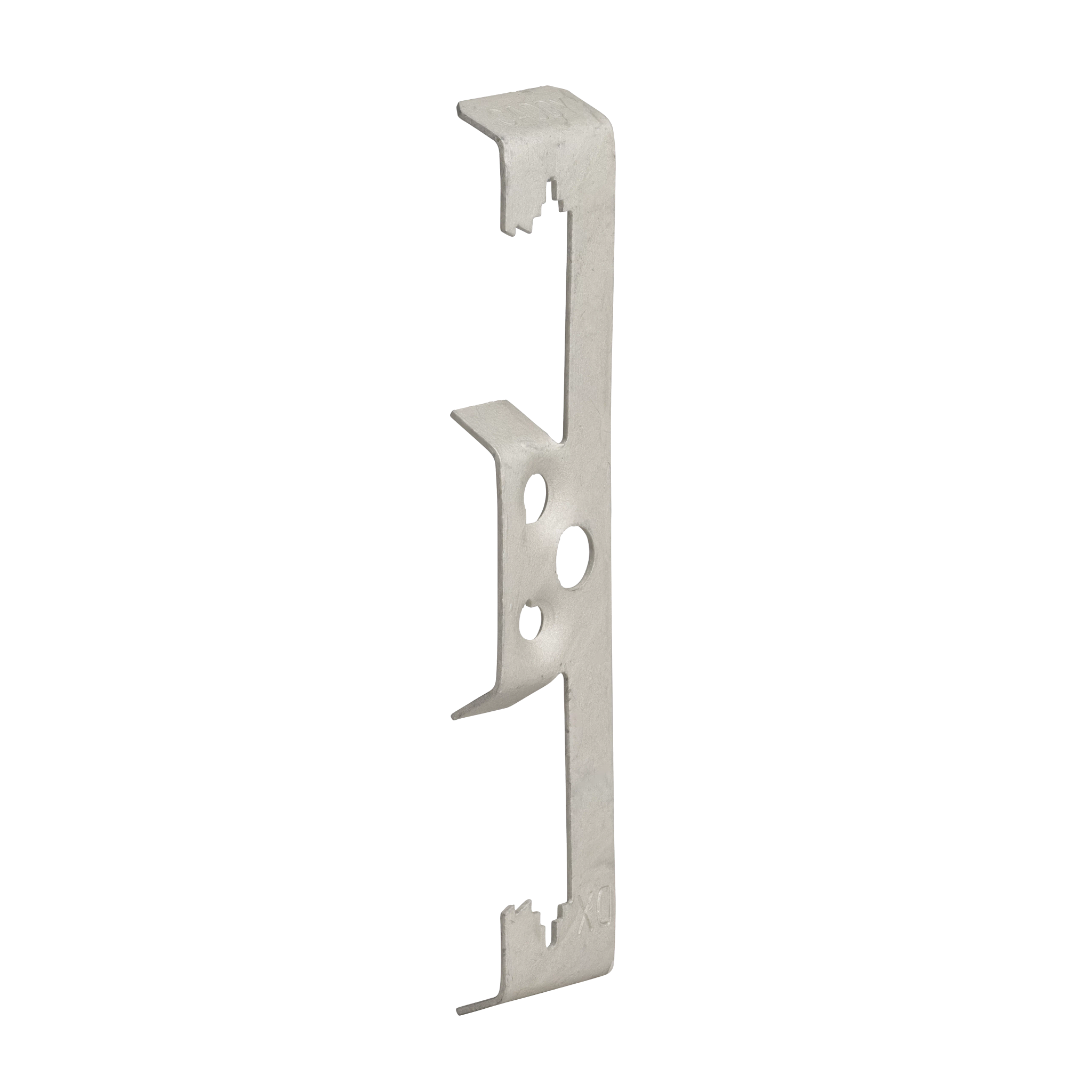

Nvent 4Z34 Multi-function Clip Rod Wire Electrical Support

Product Description

The NVENT 4Z34 is a multi-function clip designed for tool-free support of electrical boxes, cable, and conduit in commercial and industrial installations. It attaches to threaded rod ranging from 1/4 to 3/8 inches in diameter and also secures to wire from 1/8 to 7/16 inches. The flange engagement range accommodates a variety of box and enclosure wall thicknesses. No tools are required for installation, which speeds up rough-in work in high-volume electrical and low-voltage applications. Licensed electricians and electrical contractors are the primary installers of this type of support hardware.

The 4Z34 clip is suited for use in commercial electrical work, industrial conduit runs, and electrical box mounting applications where threaded rod or wire support systems are already in place. It provides a single hardware solution that bridges rod, wire, and box flange mounting in one clip, reducing the need for multiple fastener types on the same job. Typical applications include suspended electrical enclosures, cable tray support, and conduit hangers on M4 through M10 threaded rod systems.

Key Features

• Tool-free installation for fast field assembly
• Accommodates threaded rod from 1/4 to 3/8 inches in diameter
• Fits wire diameters from 1/8 to 7/16 inches
• Compatible with M4 through M10 threaded rod
• Single clip handles rod, wire, and box flange mounting
• 1/4 inch mounting hole for box attachment

Compatibility

Designed for use with 1/4 to 3/8 inch threaded rod and 4.8 mm wire support systems in electrical box, cable, and conduit hanger applications.

Installation Notes

Installation is performed by licensed electricians or electrical contractors. Power down all circuits in the work area before attaching or adjusting support hardware near energized conduit or cable. No tools are required to seat the clip onto the rod or wire. Installations must comply with applicable NEC requirements for cable and conduit support spacing and load ratings.

Technical Specifications

• Rod Diameter Range: 1/4 to 3/8 inches
• Wire Diameter Range: 1/8 to 7/16 inches
• Flange Engagement Range: 1/8 to 7/16 inches
• Mounting Hole Size: 1/4 inch
• Threaded Rod Compatibility: M4 to M10
• UPC: 782856505006

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 4Z34
