Nvent 24M24 Clip Flg To Conduit/Pipe 1-1/2in Emt

Product Description

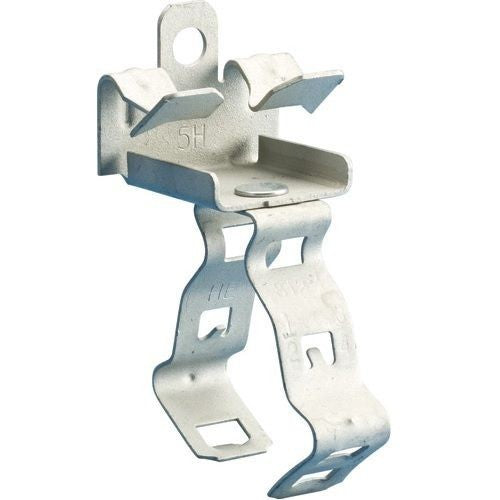

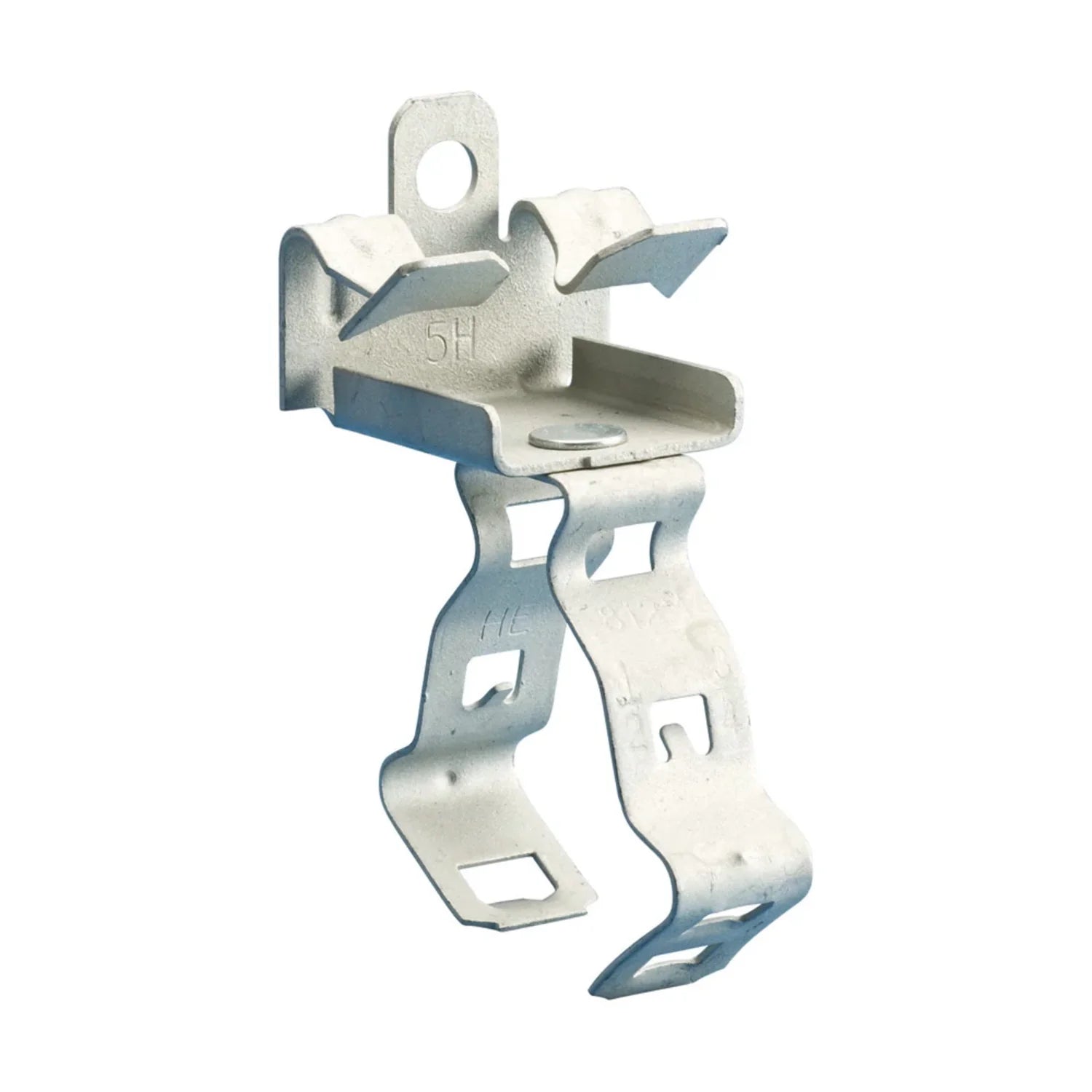

The NVENT 24M24 is an EM-M Snap Close Conduit/Pipe to Flange Clip designed for securing 1-1/2 inch EMT conduit. Constructed from spring steel with a Caddy® Armor finish, it supports a static load of 75 lb. This clip is suitable for outside diameters ranging from 1.654 to 1.969 inches and flange sizes from 1/8 to 1/4 inch.

• Supports conduit/pipe or cable from beam flanges
• Snap close clip pivots a full 360 deg
• Requires only a hammer to install

Product Highlights

Snap close clip for 1-1/2 inch EMT conduit, featuring a 360-degree pivot and 75 lb static load capacity.

Product Information

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 24M24
• Country of Origin: USA

Technical Specifications

• Type: Snap Close
• Finish: Caddy® Armor
• Series: EM-M
• Flange Size: 1/8 to 1/4 in
• Conduit Size: 1-1/2 in
• Manufacturer: nVent
• Load Capacity: 75 lb Static
• Outside Diameter: 1.654 to 1.969 in
• Suitable For Use With: EMT Conduit
• MPN: 24M24
• Application: Datacom and Low Voltage and Electrical Applications
• Material: Spring Steel
• Standards/Approvals: cULus Listed, RoHS Exempted
• Catalog ID: CAD24M24
• UPC: 78285616224
