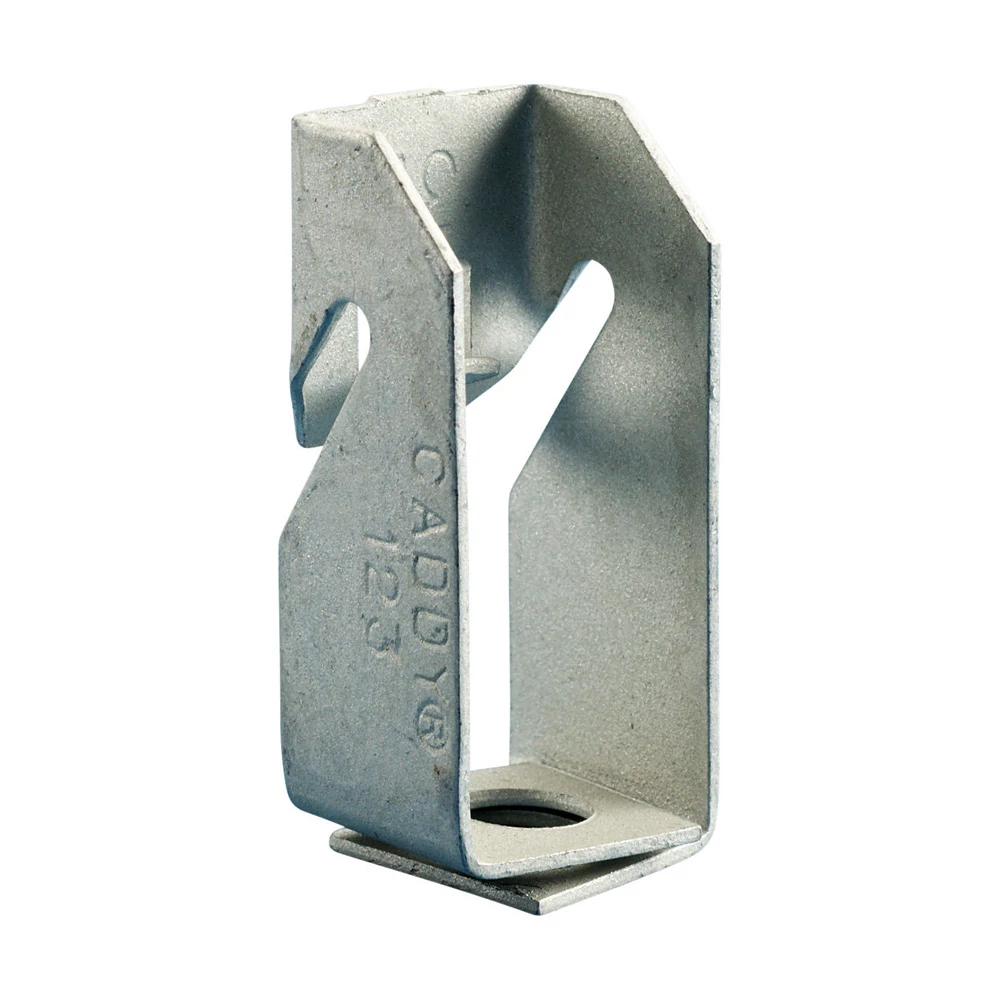

Nvent 123 Z Purlin Clip 1/4 Inch Hole

Product Description

The NVENT 123 Series Z Purlin Clip is a structural mounting clip designed for securing components to Z-shaped steel purlins commonly found in metal building construction and commercial roofing systems. The clip features a 1/4 inch mounting hole and is manufactured with a flange range of 0.06 to 0.1 inches, making it suitable for light-gauge purlin connections. This hardware is typically installed by structural contractors, commercial roofing crews, and metal building erectors working on new construction or retrofit framing projects.

The 123 Series clip is used in applications involving Z purlin framing members in metal building systems, including commercial and industrial structures. It provides a reliable attachment point for secondary framing, insulation supports, or other components that must be fastened directly to the purlin flange. Its compact design allows installation in tight flange clearances typical of light-gauge metal construction.

Key Features

• 1/4 inch hole diameter for standard fastener sizing
• Flange range of 0.06 to 0.1 inches for light-gauge purlin compatibility
• Z purlin-specific geometry for proper seating on flange profile
• Compact clip design suited for tight installation clearances

Compatibility

Designed as an OEM-style replacement clip for Z purlin framing systems in commercial and industrial metal building construction.

Installation Notes

Installation is typically performed by qualified structural or metal building contractors following applicable building codes and manufacturer fastener specifications. Ensure the purlin flange is clean and free of debris before seating the clip. Use fasteners appropriate for the 1/4 inch hole diameter and the base metal gauge. Do not over-torque fasteners on light-gauge flange material.

Technical Specifications

• Hole Diameter: 1/4 inch
• Flange Range: 0.06 to 0.1 inches
• UPC: 782856381006

Standard Information

• Brand: NVENT
• Manufacturer Part Number: 123
