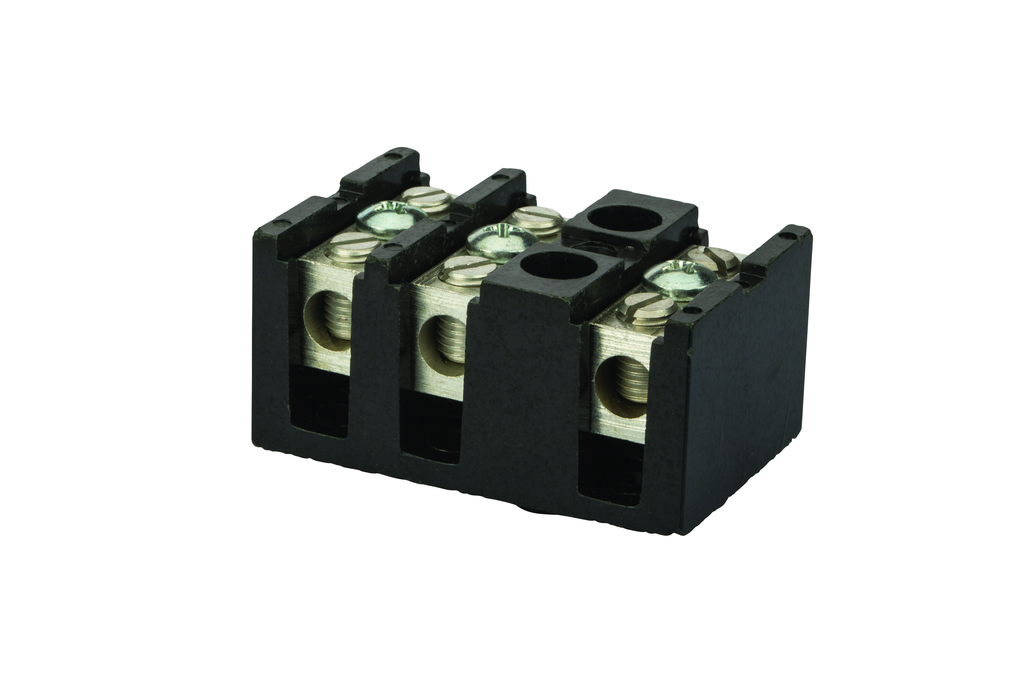

NSI TBS2-3 Splicer/Reducer 3 Pole

Product Description

The NSI TBS2-3 is a reliable thermal plastic splicer/reducer designed for efficient electrical connections. This three-pole unit accommodates wire sizes from fourteen to two AWG. It is suitable for applications requiring a connection rated for up to seventy-five amps and six hundred volts.

• Constructed from strong glass-filled polyester.
• Features a mounting hole of zero point seventeen inches.
• Manufactured in the USA to ensure quality and compliance.

Product Highlights

This splicer/reducer combines high conductivity with robust materials, ideal for both copper and aluminum wires, making it versatile for various electrical setups.

Product Information

Standard Information

• Brand: NSI Industries
• Type: Splicer/Reducer

Technical Specifications

• Wire Size: 14 to 2 AWG
• Voltage Rating: 600 VAC
• Amperage: 75 Amp
• Material: Thermal Plastic
• Dimensions: 2.38 in L x 1.5 in W x 1.25 in H
• Temperature Rating: 150 degrees C
• Number of Terminations: 6
• Mounting Type: .17 mounting holes
