Nsi M22-250-3V miniterms male disconnect 300V

Product Description

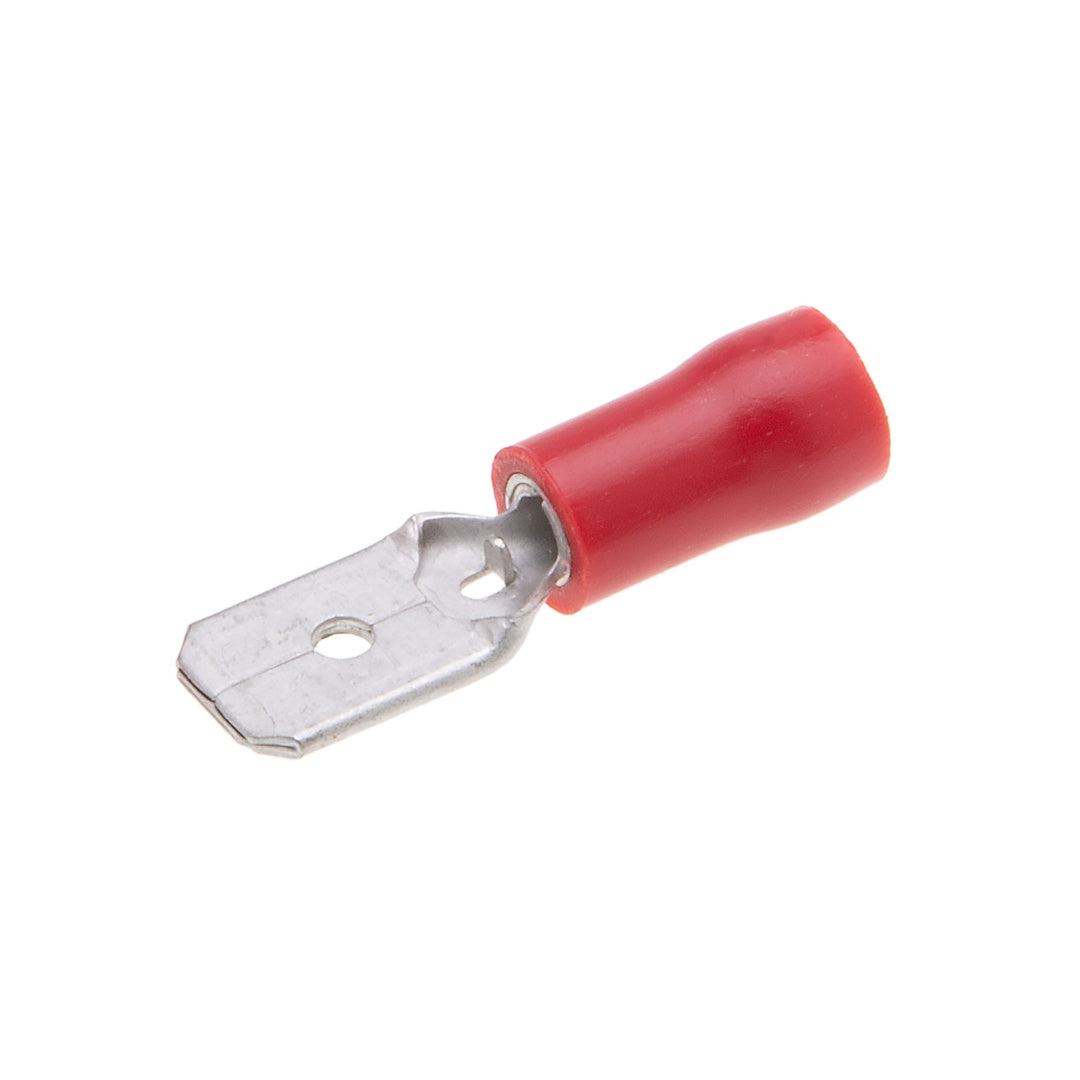

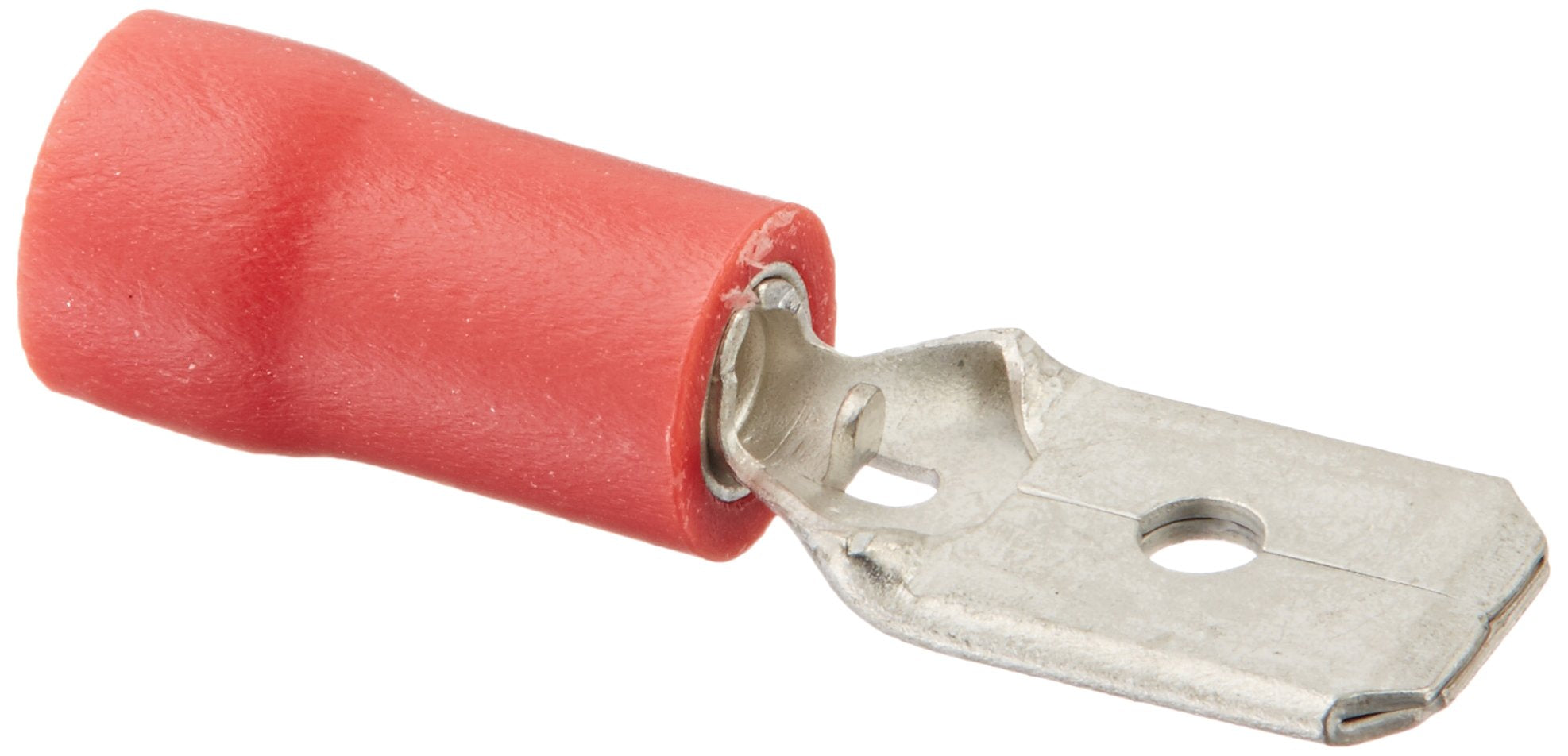

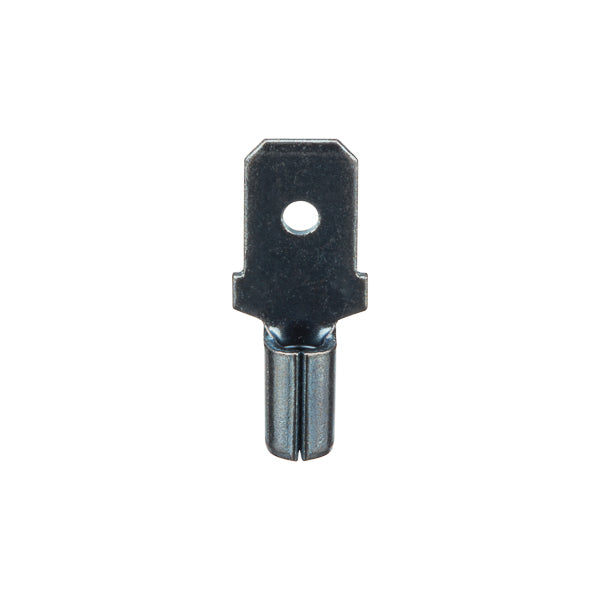

The NSI M22-250-3V Miniterms Male Disconnect is designed for 22 to 18 AWG conductors. It features a 0.25 in W x 0.032 in THK tab and a brazed seam barrel. This crimp terminal has a vinyl insulation and is rated for 300 VAC at a temperature of 75 deg C. It is electro-tin plated.

• For 22 to 18 AWG conductors
• Vinyl insulation
• Electro-Tin Plated finish

Product Highlights

The NSI M22-250-3V is a vinyl insulated male disconnect with a crimp terminal and a brazed seam barrel.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: M22-250-3V

Technical Specifications

• Finish: Electro-Tin Plated
• Series: M Series
• Temperature Rating: 75 deg C
• Terminal Type: Crimp
• Voltage Rating: 300 V
• Conductor Size: 22 to 18 AWG
• Tab Size: 0.25 in W x 0.032 in THK
• Barrel Type: Brazed Seam
• Color: Red
• Insulation Type: Partially Insulated
• Material: Tin Plated Copper
• Application: Wire Termination
• Type: Insulated
• Manufacturer: NSi Industries
• Brand: NSI
• Insulation Material: Vinyl
• Barrel Style: Brazed Seam
• Sub Brand: Miniterms
• Connection: Male
• Wire Range: 22 AWG – 16 AWG
• Stud Size: 1/4 x 0.032 Inch
