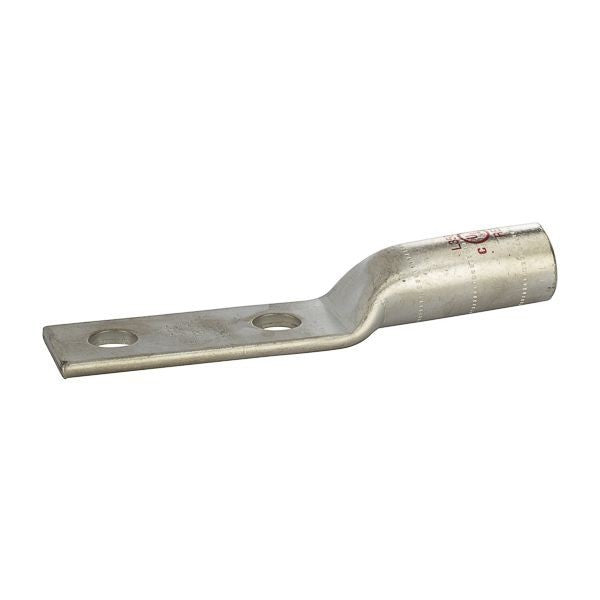

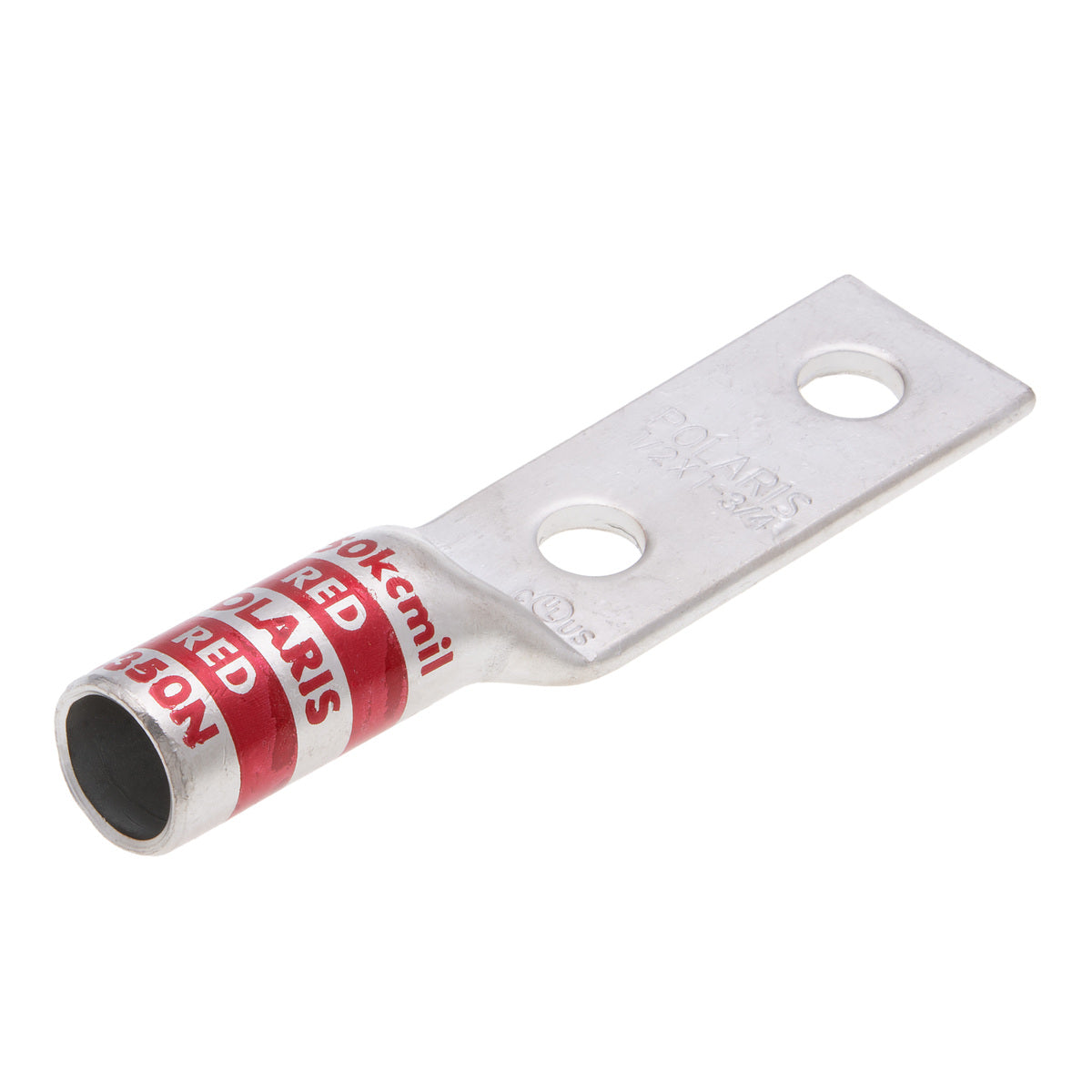

Nsi L350N Polaris cmp lug cu long 350 mcm nema mtg spac

Product Description

The NSI L350N POLARIS compression design creates a permanent, vibration-resistant connection with low contact resistance. Suitable for power distribution, grounding, and data transmission. It features high conductivity copper tubing and a corrosion-resistant tin-plated finish. Marked with die index and color coded. UL listed to 35kV when properly installed.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Marked with die index and color coded
• Flex rated for use with K, H, G, I, M and DLO cable

Product Highlights

The NSI L350N is a reliable compression lug for various applications, ensuring a secure and lasting connection.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: L350N
• Country of Origin: India

Technical Specifications

• Voltage Rating: 35kV
• Material: Copper
• Finish: Tin Plated
• UNSPSC: 39121405
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.17
• Tang Length: 2.99
• Hole Spacing: 1.75
• Wire Range: 350 MCM
• Assortment: Copper Compression Terminations
• Expanded Wire Range: 350 MCM – 3/0 AWG
• Die Color Code: Red
• Mounting Bolt Size: 1/2
• Mounting Hole Diameter: 0.51
• Barrel Length: 2
• Overall Length: 5.39 in
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Type: Compression Terminal
• Voltage: 600V
• Application: Terminate, Splice and Tap Power Connector Applications
• Standard & Approvals: UL 486, KM Approved, cULus Listed
• Conductor Size: 350 kcmil
• Barrel Type: Long
• Tongue Size: 2.99 in L x 1.28 in W x 0.17 in THK
• Series: LN Series
• Mounting Hole Size: 1/2 in
• Barrel Size: 0.7 in ID x 0.87 in OD x 1.97 in L
• Country of Origin: India - Subject to change
• Lug L x Tongue W: 5.39 x 1.28 in.
• Stud Holes: 2
• Stud Hole Spacing: 1.75 in. Space
• Conductor Size - Code: 350 MCM STR
• Screw/Stud Size: 1/2 in.
• Color Code: Red
