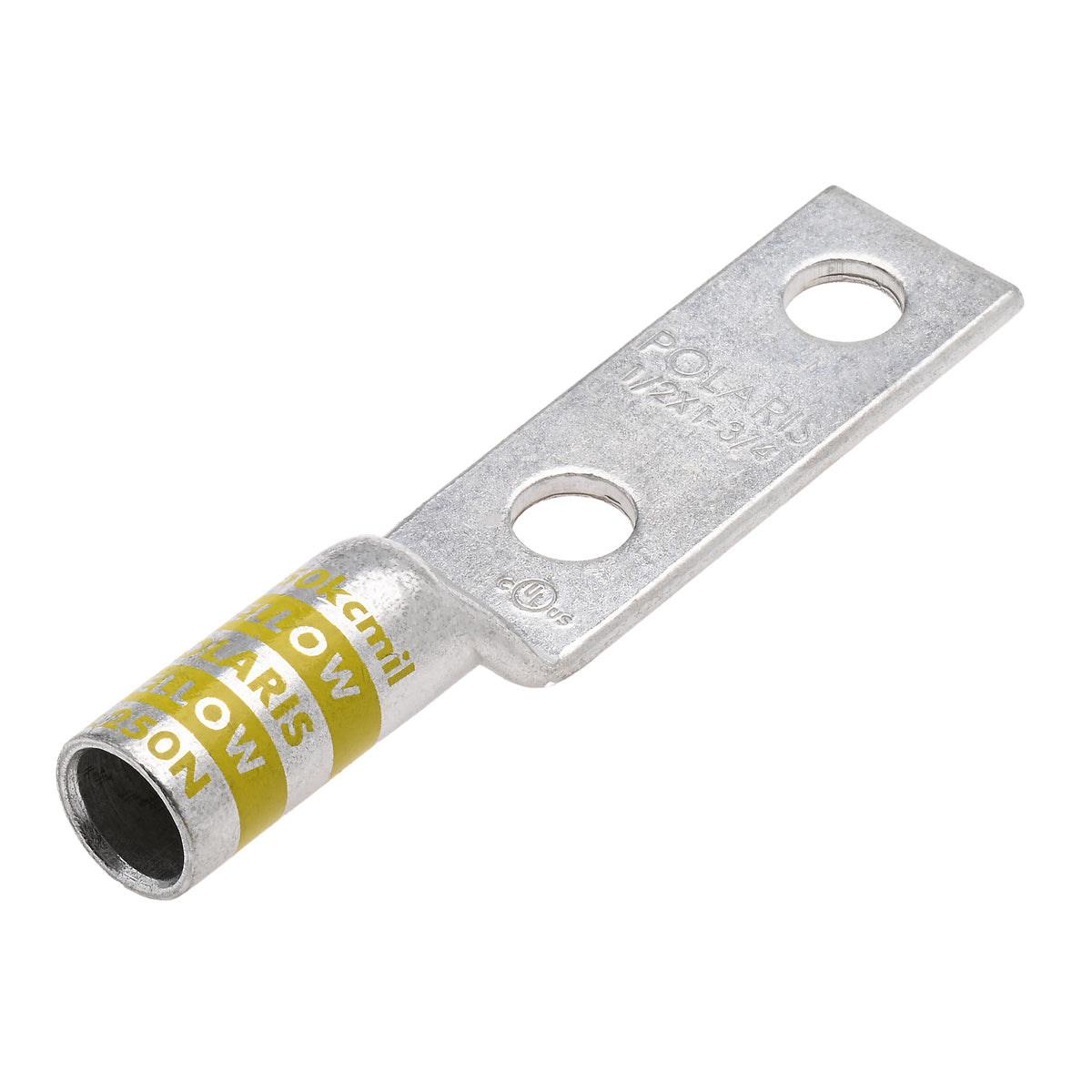

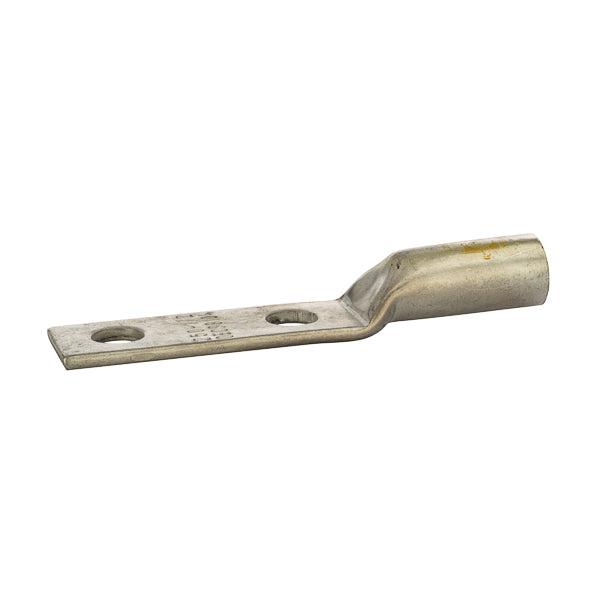

Nsi L250N polaris cmp lug cu long 250 mcm nema mtg spac

Product Description

The NSI L250N POLARIS compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission. It features high conductivity copper tubing and corrosion resistant tin-plated finish.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Marked with die index and color coded
• Flex rated for use with K, H, G, I, M and DLO cable

Product Highlights

The L250N is UL/cULus listed and rated for B/C class wire. UL listed to 35kV when properly installed to cable manufacturer’s specifications.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: L250N
• Country of Origin: United States

Technical Specifications

• Voltage Rating: 35kV
• Material: Copper
• Finish: Tin Plated
• Pack Qty: 12
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.15
• Tang Length: 2.99
• Hole Spacing: 1.75
• Wire Range: 250 MCM
• Expanded Wire Range: 250 MCM – 1/0 AWG
• Assortment: Copper Compression Terminations
• Die Color Code: Yellow
• Mounting Bolt Size: 1/2
• Mounting Hole Diameter: 0.51
• Barrel Length: 2
• Type: Wire Connectors
• Termination Type: Compression
• Compatible Mounting Type: Wire
• Country of Origin: United States
• Applications: Terminate, Splice, Tap Power Connectors
• Cable Size: 250 MCM
• Mounting Type: 1/2 Mounting Holes
• Number of Holes: 1 Hole
• Standard: UL486
• Stud Size: 1/2 in
• Voltage: 600 Volt
• Brand: NSI Industries
• Sub Brand: Copper Compression
• Environmental Conditions: 90 degrees C
• Product UPC: 66238103513
