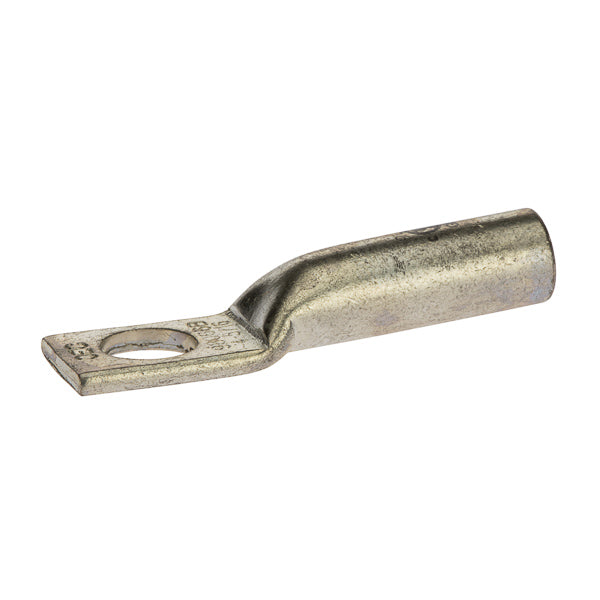

Nsi L1056 Polaris #1/0 Awg Max Wire Size, 5/16 Stud Size

Product Description

The NSI L1056 Polaris compression design creates a permanent, vibration-resistant connection that you can rely on with low contact resistance. Suitable for a wide range of applications, including power distribution, grounding and data transmission. It is UL/cULus listed and rated for B/C class wire.

• High conductivity copper tubing and corrosion resistant tin-plated finish

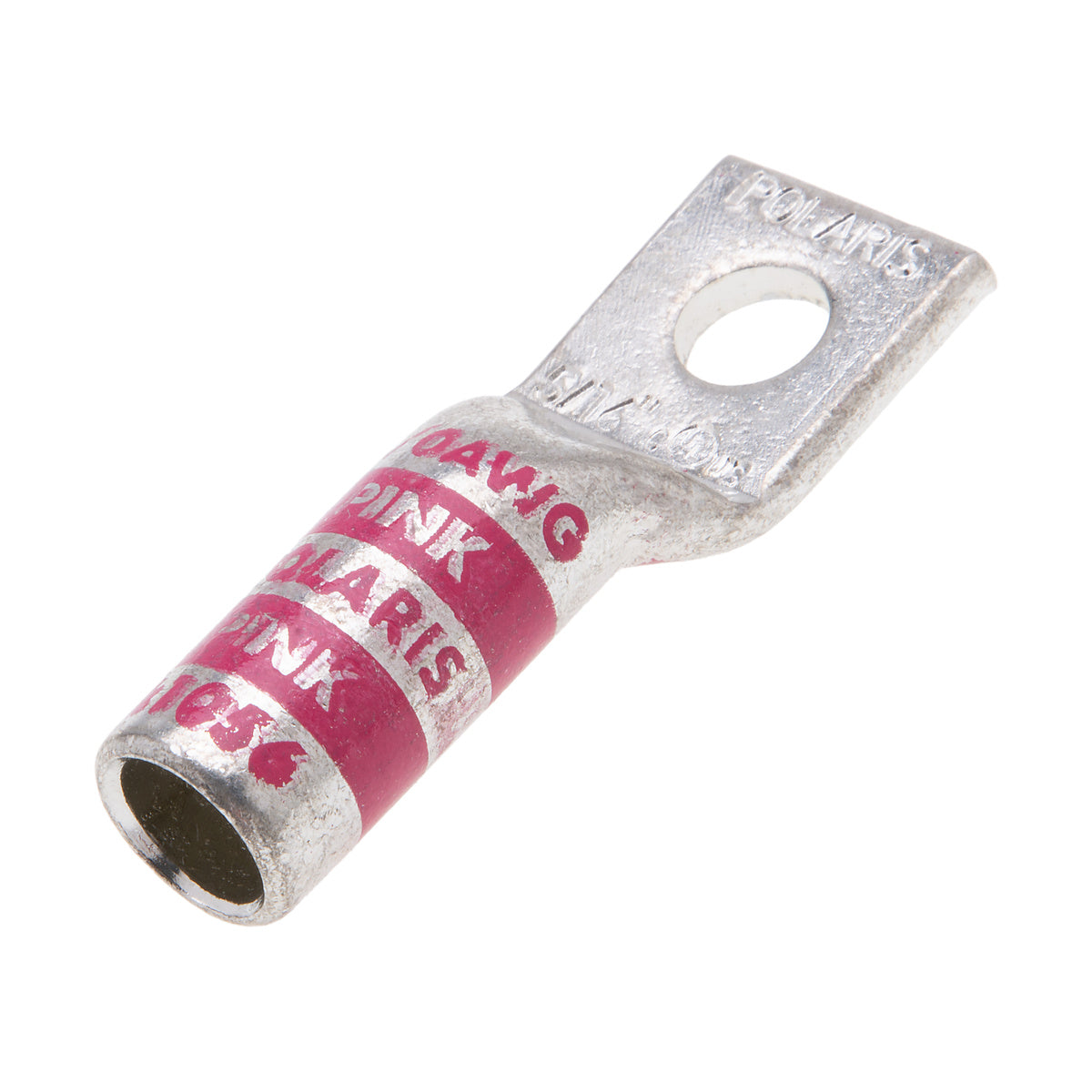

• Marked with die index and color coded
• Flex rated for use with K, H, G, I, M and DLO cable

Product Highlights

The NSI L1056 copper compression lug features high conductivity copper tubing and a corrosion resistant tin-plated finish. Easy inspection with peephole to assure complete cable insertion.

Product Information

Standard Information

• Brand: NSI
• Manufacturer Part Number: L1056

Technical Specifications

• Voltage Rating: 35kV
• Material: Copper
• Finish: Tin Plated
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.13
• Tang Length: 0.81
• Wire Range: 1/0 AWG
• Expanded Wire Range: 1/0 AWG ">– 6 AWG
• Die Color Code: Pink
• Mounting Bolt Size: 5/16
• Mounting Hole Diameter: 0.33
• Barrel Length: 1
• Ul Standard: UL 486A-486B, UL467
• Product Name: NSI #1/0 AWG Maximum Wire Size 5/16 Stud Size Tin-Plated Copper Compression Lug Single Hole (L1056)
• Brand: NSI
• SKU: NSI-L1056
• Mfr. Part Number: L1056
• Body Material: Tin Plated Copper
• UPC Code: #662381335524
• UL Listing: Yes
