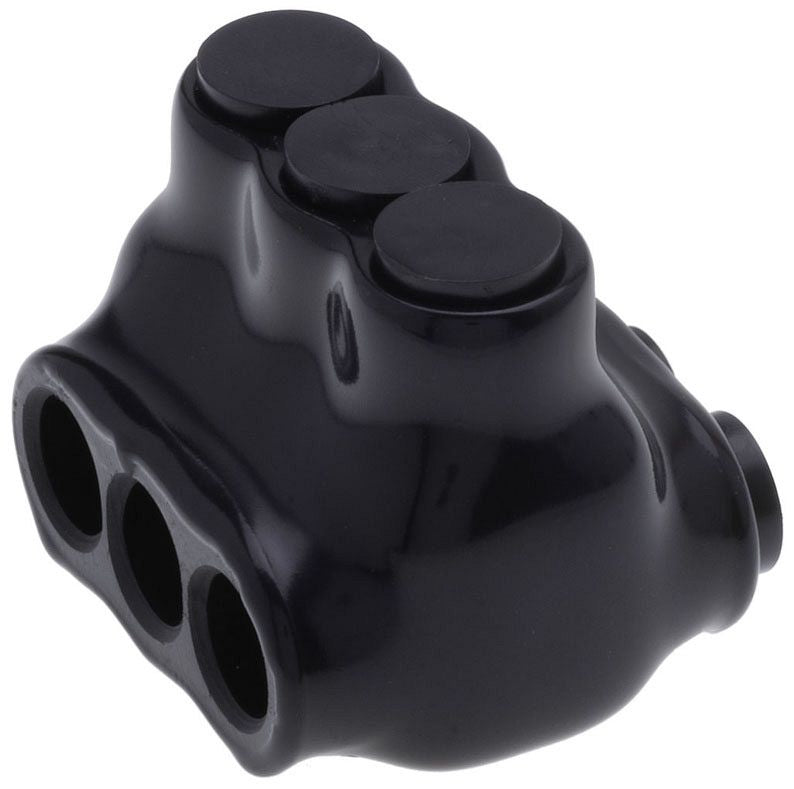

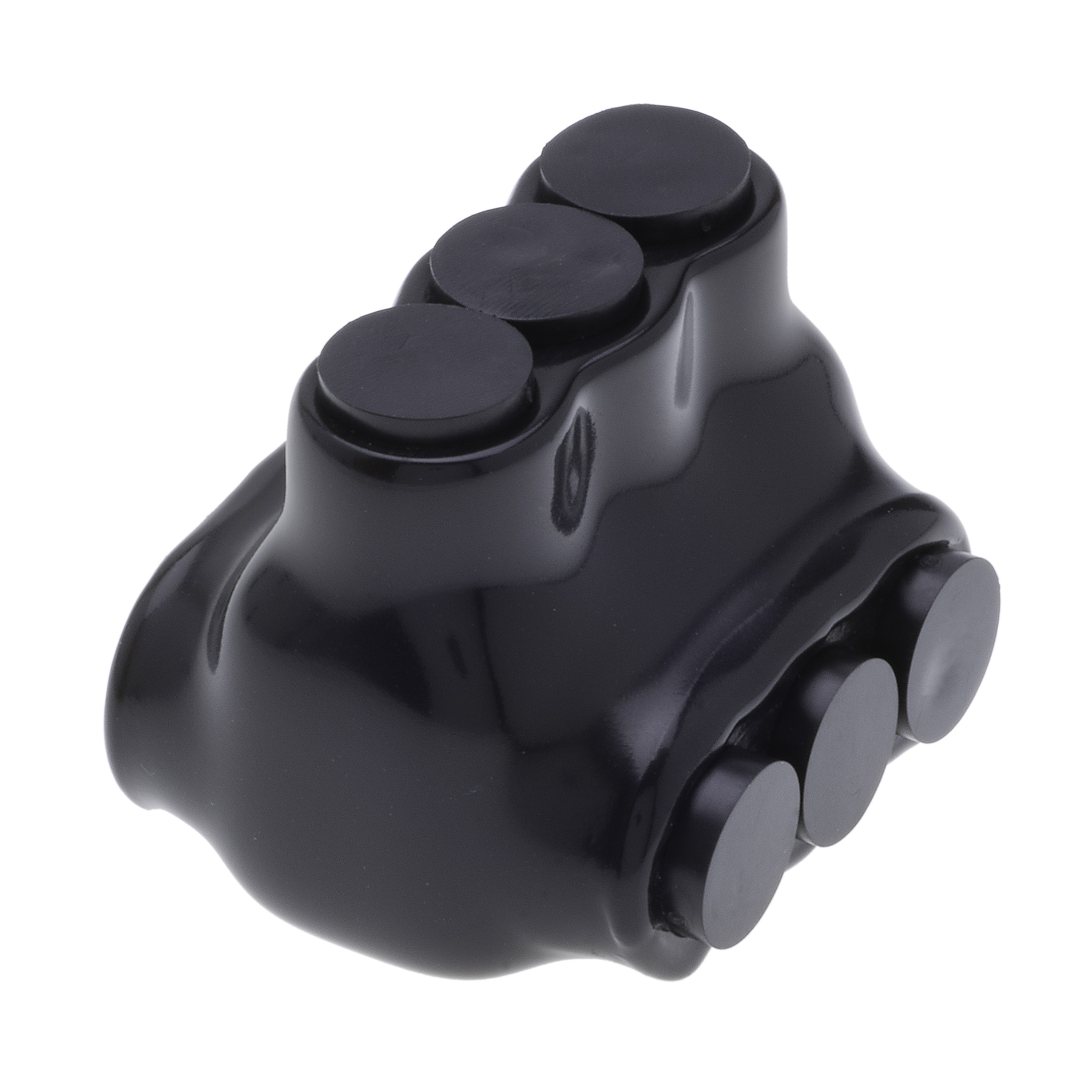

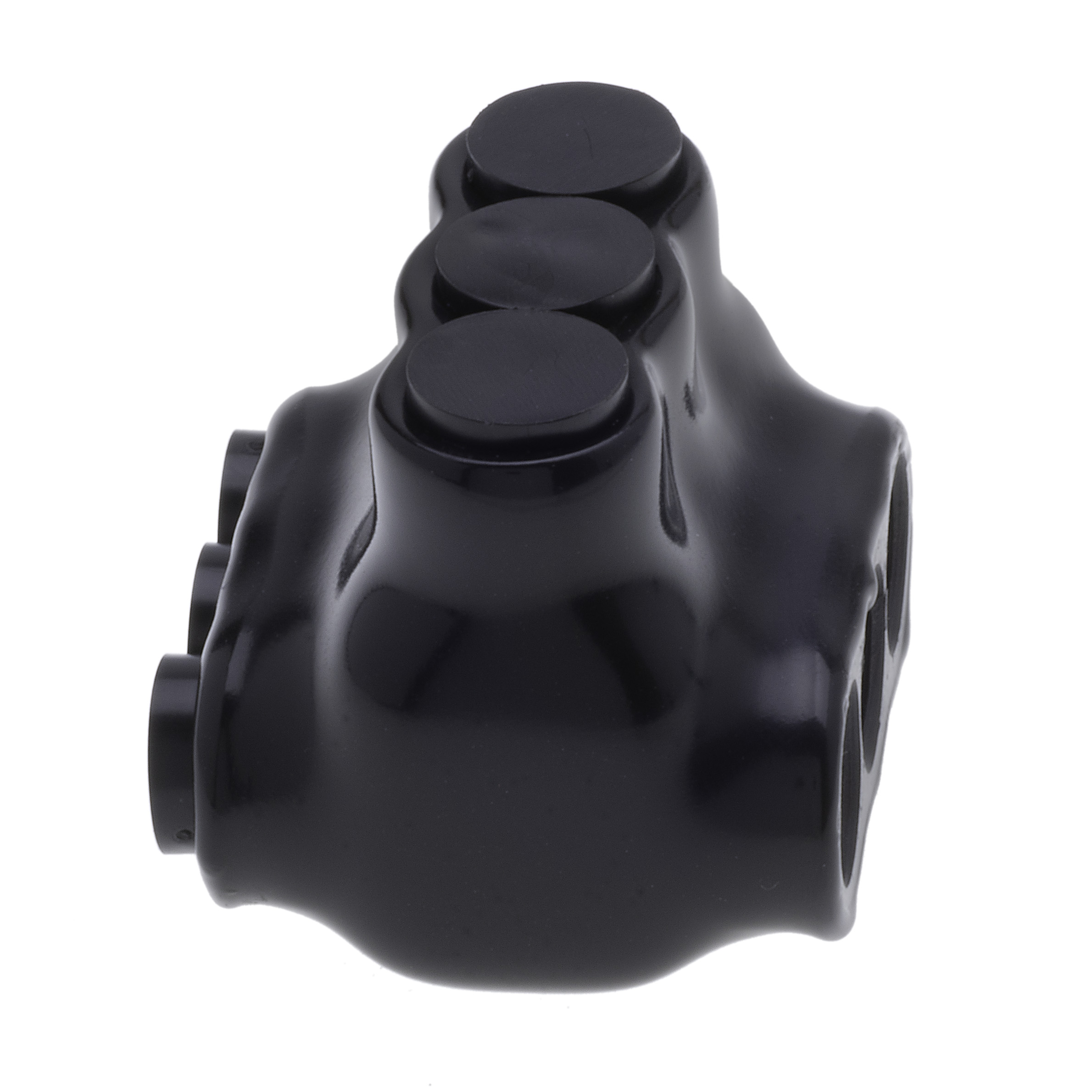

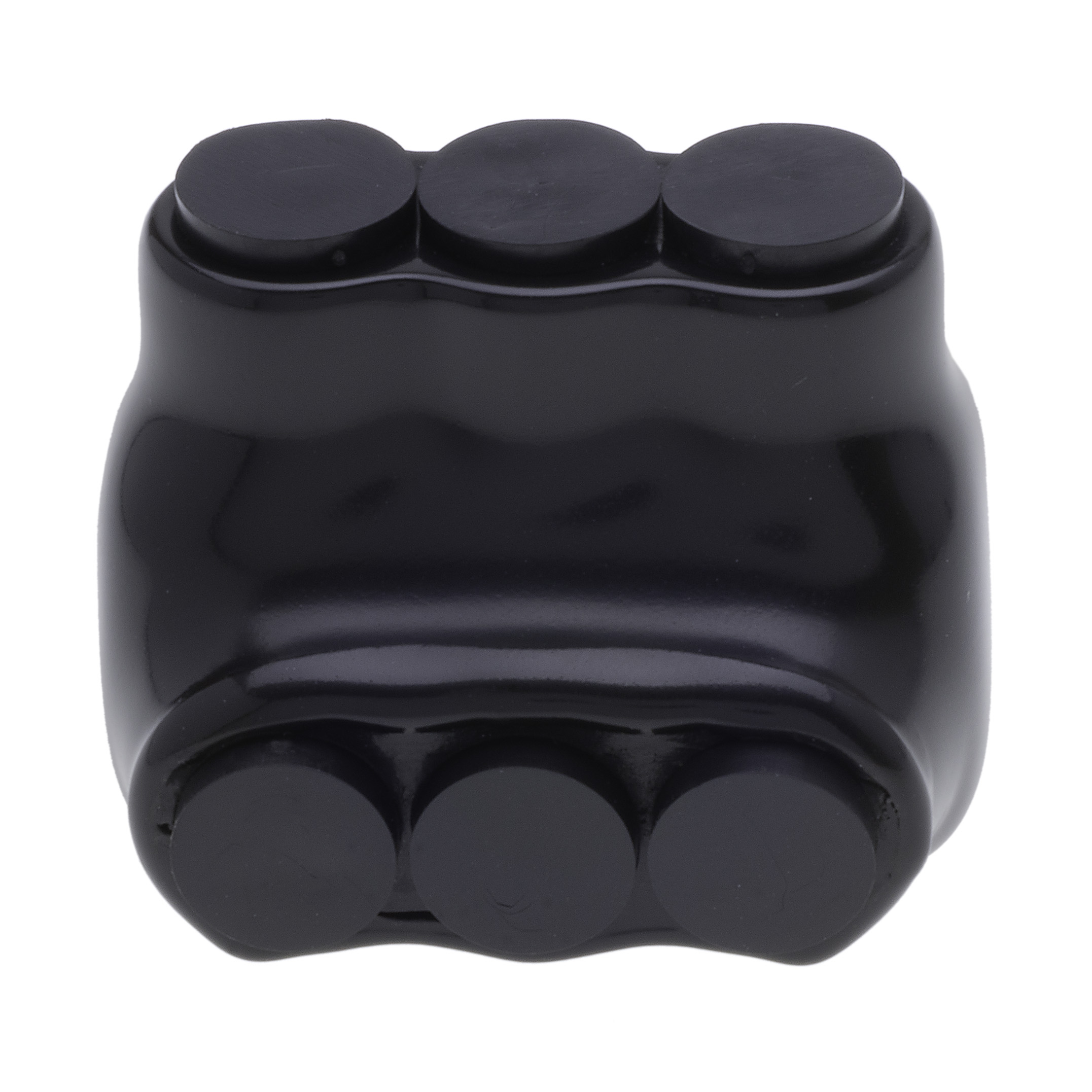

NSI IPLD4-3 600V Multi-Tap Conn

Product Description

NSI IPLD4-3 is a multi-tap connector designed for electrical applications. This connector is capable of serving dual-sided wire entry, enabling quick and secure connections for three conductors. The device is compatible with wire sizes from four AWG to fourteen AWG, making it versatile for various wiring needs. It features ergonomic design elements for comfort and efficiency during installation.

• Supports wire sizes from 4 AWG to 14 AWG
• Features removable plugs for debris prevention
• Comes pre-filled with oxide inhibitor gel to reduce corrosion

Product Highlights

The NSI IPLD4-3 connector excels in providing reliable connections for both copper and aluminum cables. It is cold temperature rated to -45 degrees Celsius and suitable for splice and tap applications.

Product Information

Standard Information

• Manufacturer: Polaris
• Country of Origin: United States

Technical Specifications

• Voltage Rating: 600 V
• Material: Aluminum
• Temperature Rating: 90C, AL9CU
• Number of Conductors: 3
• Max Torque Value: 35 IN/LBS
• Environmental Temperature: Cold Temperature rated to -45C
• Product Assortment: Black UV Coated Pre-Insulated Connectors
