Product Description

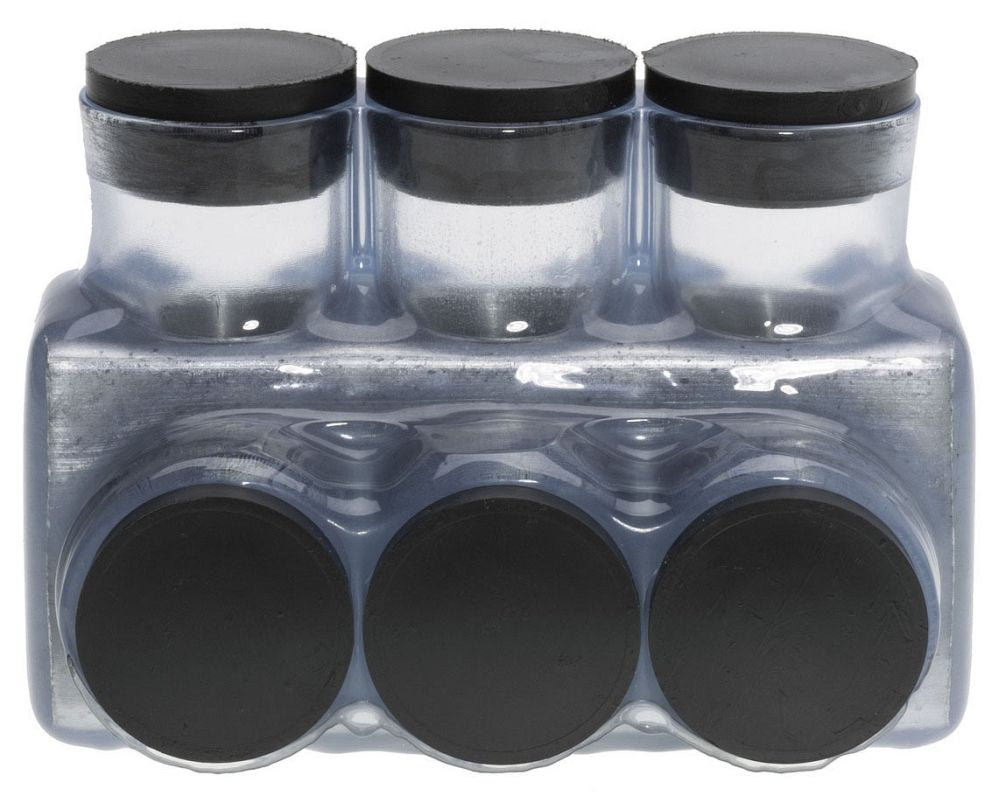

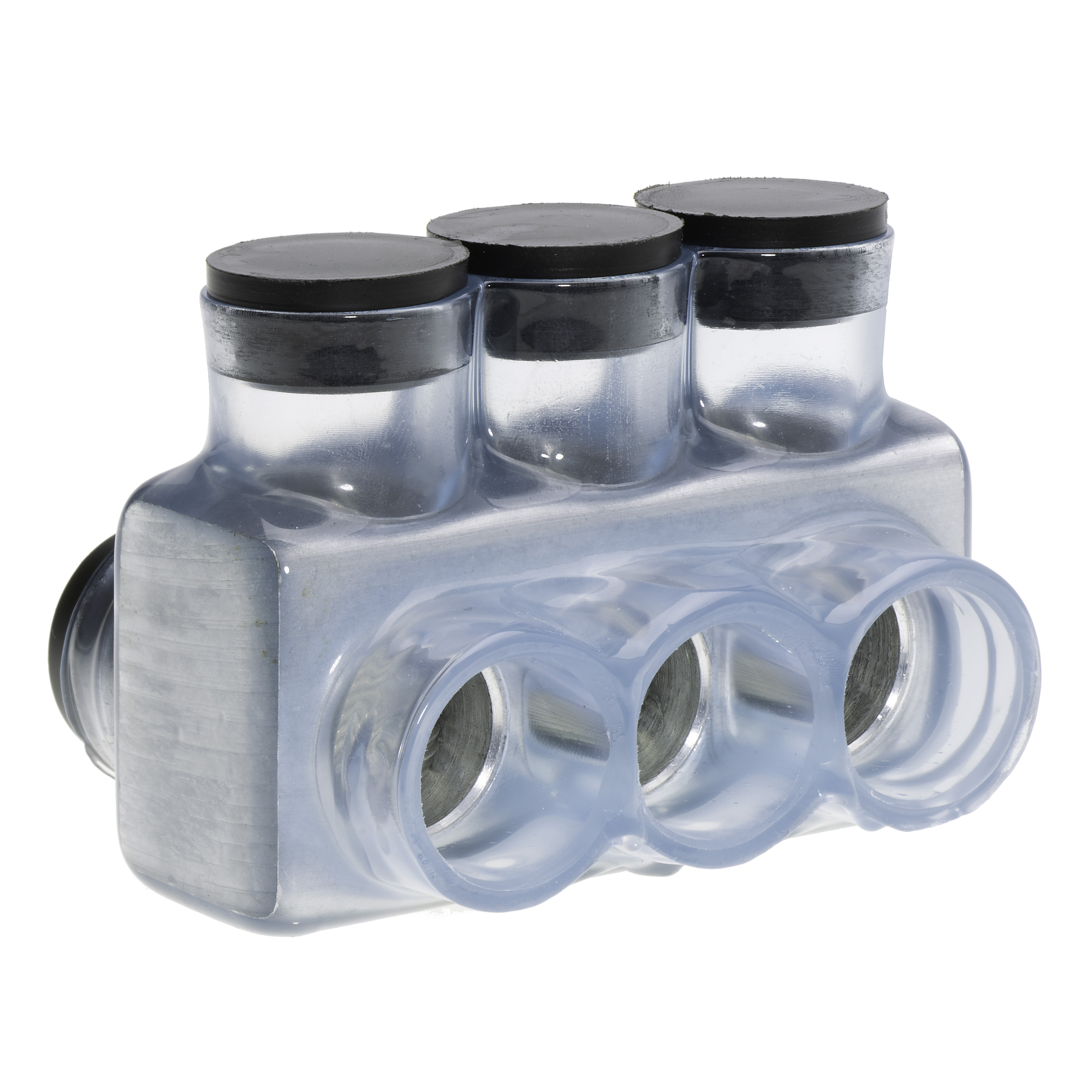

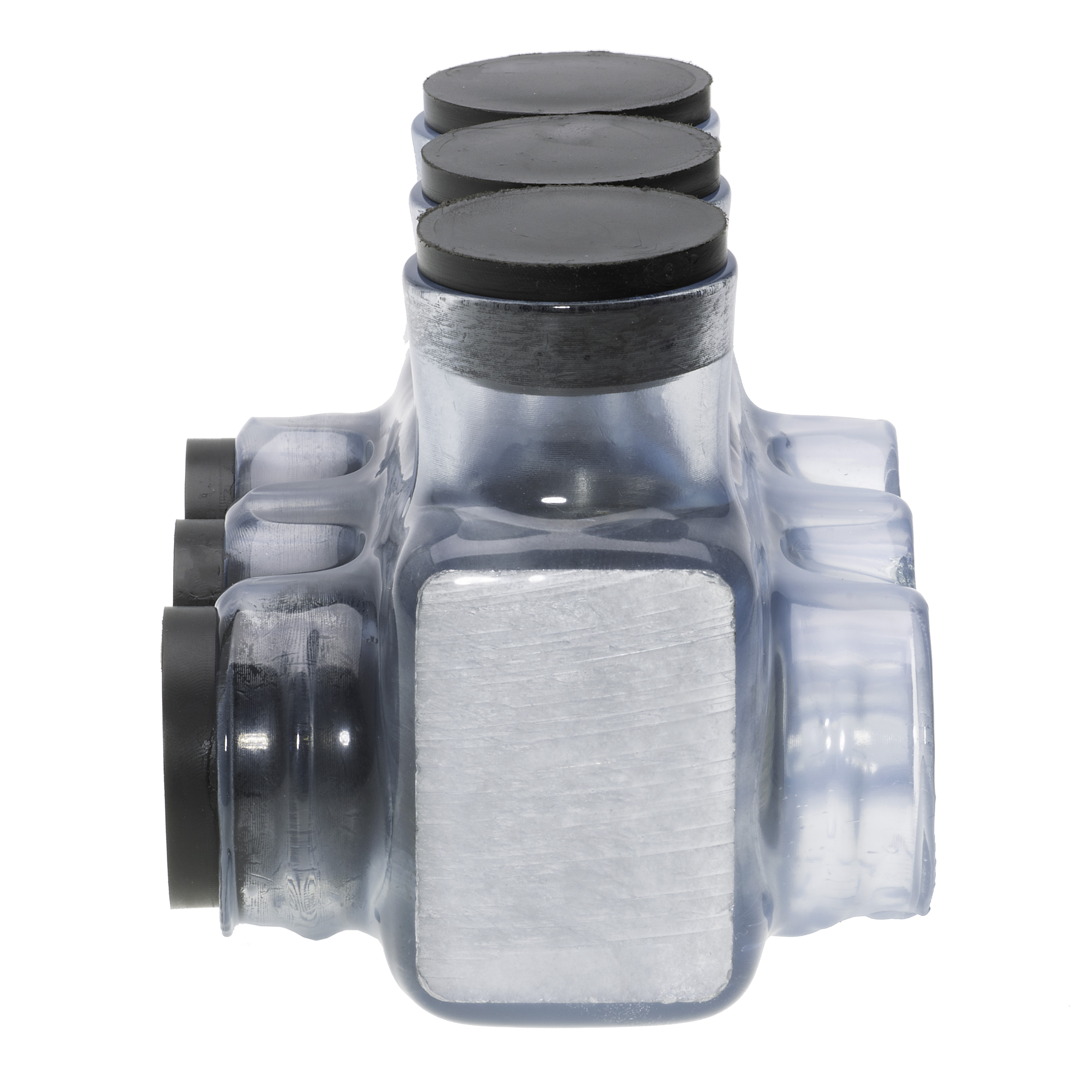

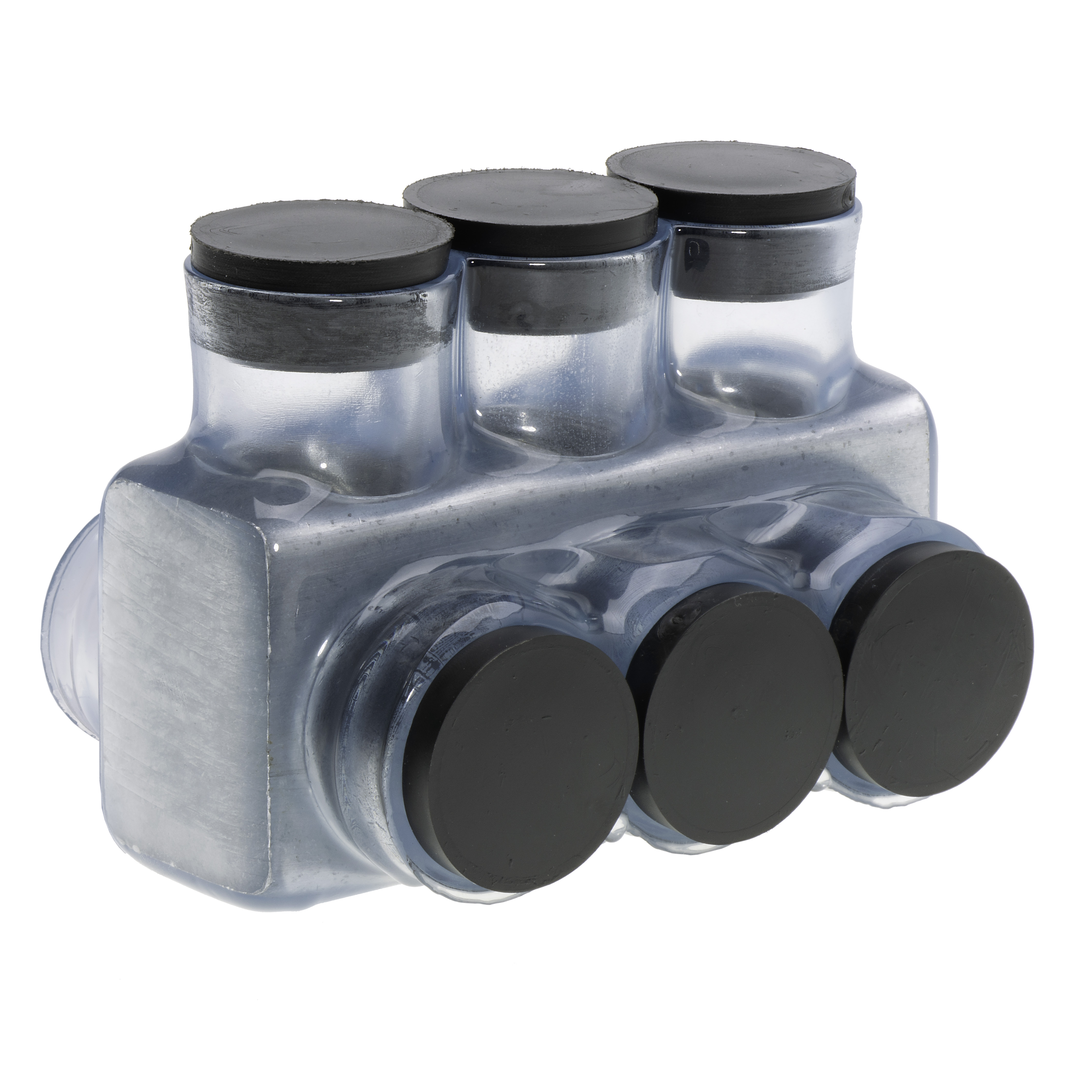

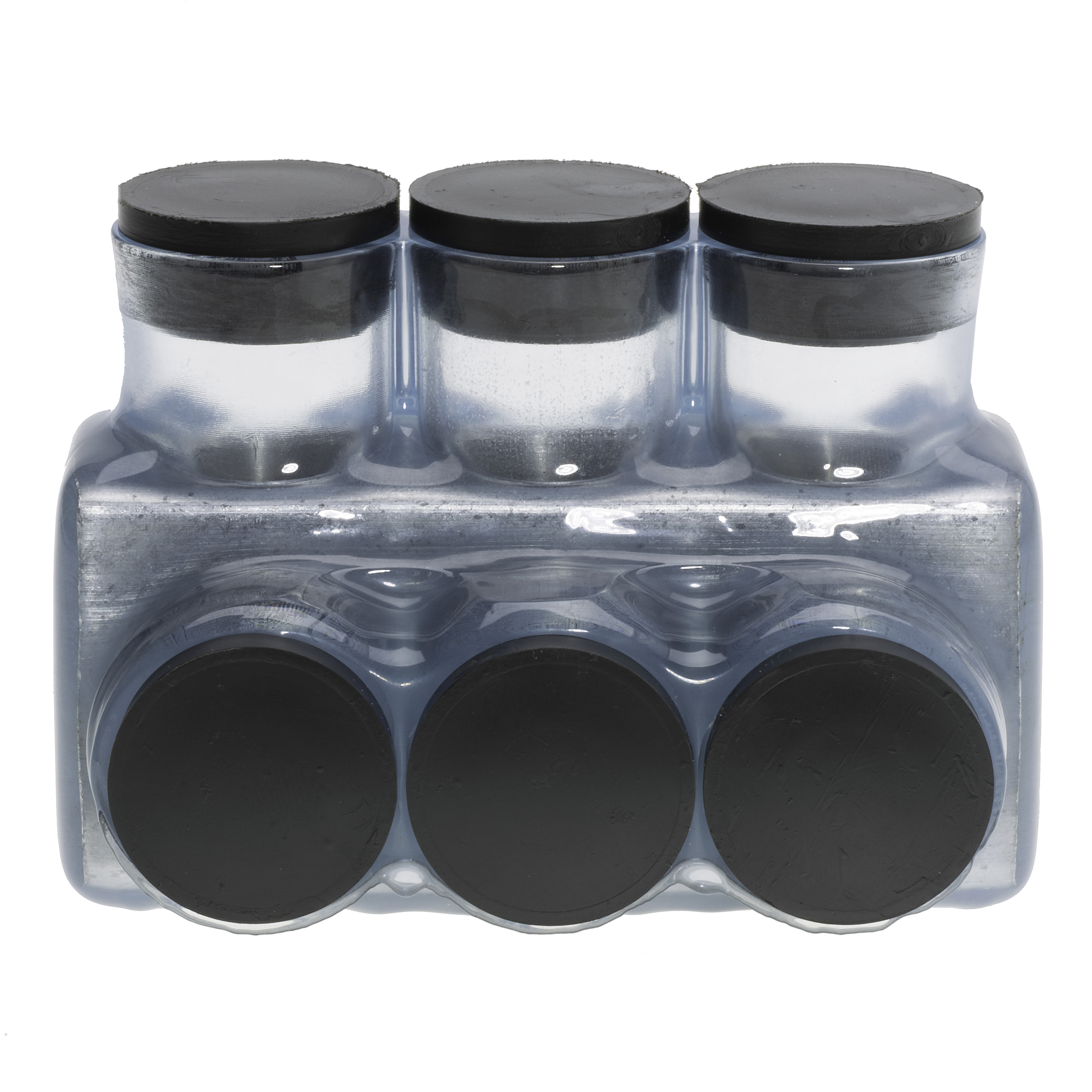

The NSI IPLD3/0-3CB is a pre-insulated multi-tap connector designed for use with conductors ranging from 3/0 to 6 AWG. This product allows for quick connections with its dual-sided wire entry, enhancing efficiency in electrical applications.
- Clear exterior design for easy visibility and conductor placement.
- Durable insulation that is abrasion and chemical resistant.
- Pre-filled with oxide inhibitor gel to prevent corrosion, moisture, and debris.
Product Highlights
This connector provides reliable performance for both copper and aluminum cables. Its ergonomic design and smooth finish make it easy to handle.
Product Information
Standard Information
-
Manufacturer: Polaris
-
Country of Origin: United States
Technical Specifications
-
Length: 2.71 inches
-
Width: 1.83 inches
-
Height: 1.83 inches
-
Weight: 1.85 lbs
-
Material: Aluminum
-
Voltage Rating: 600 V
-
Max Torque Value: 250 IN/LBS
-
Temperature Rating: 90C, AL9CU
-
Conductor Size Range: 3/0 AWG - 6 AWG
-
Number of Conductors: 3
