Product Description

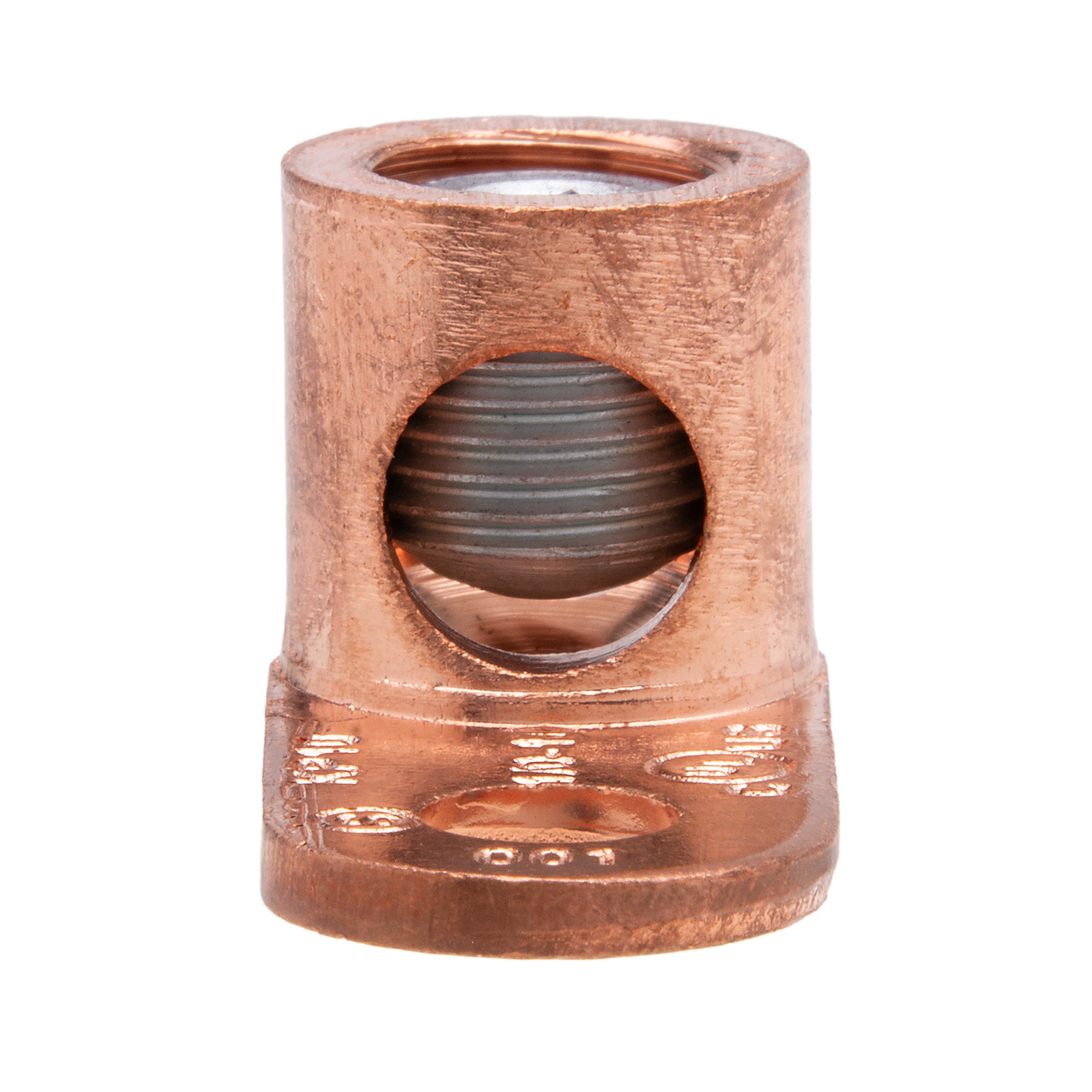

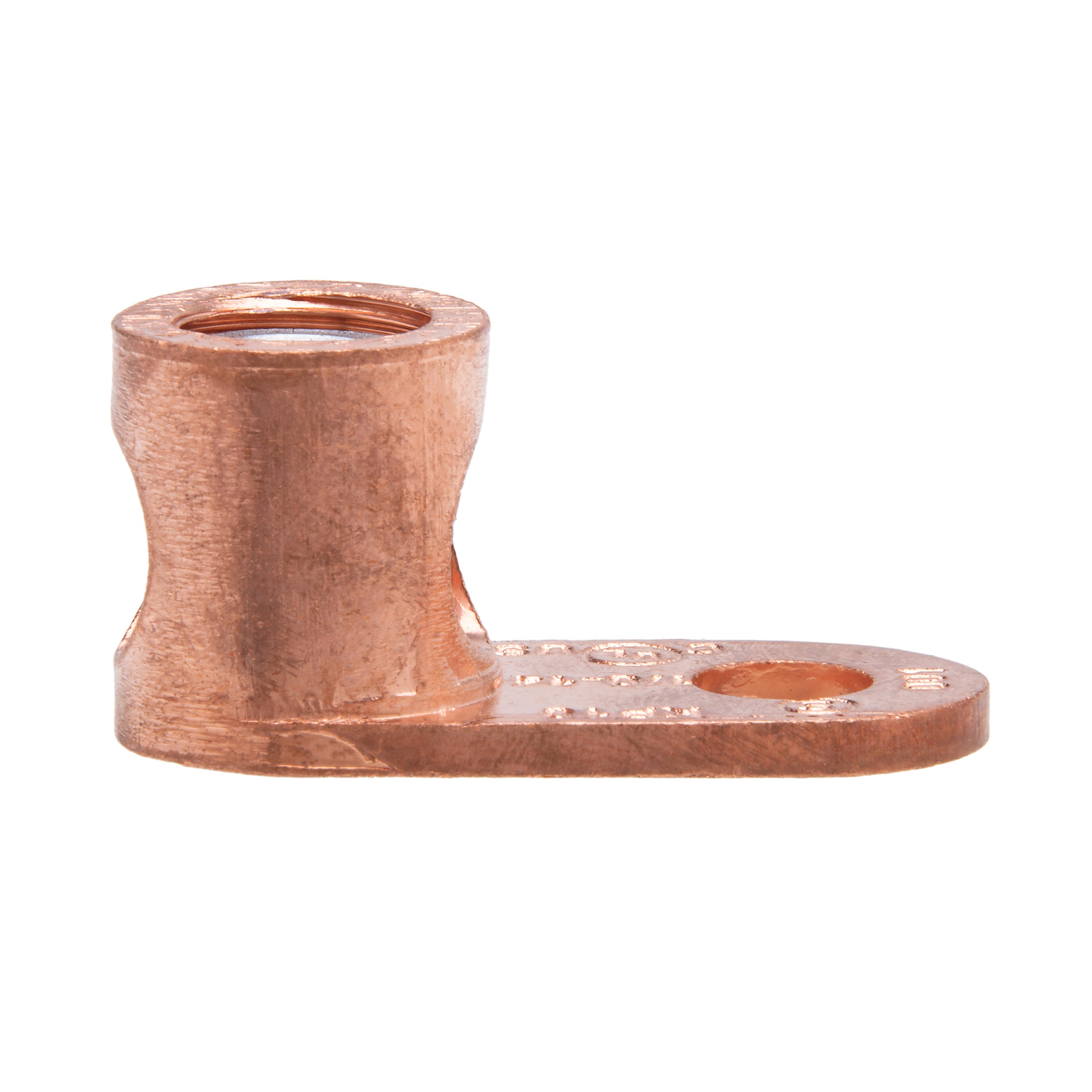

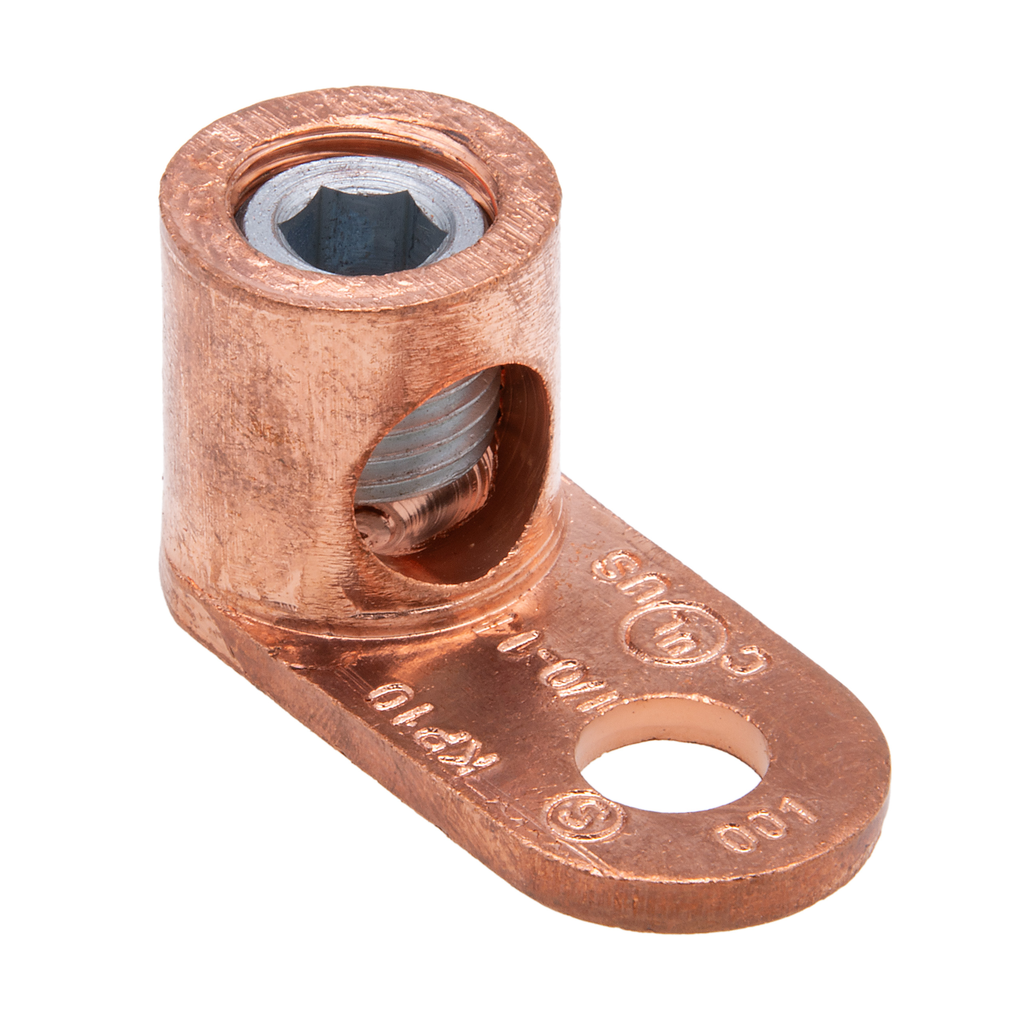

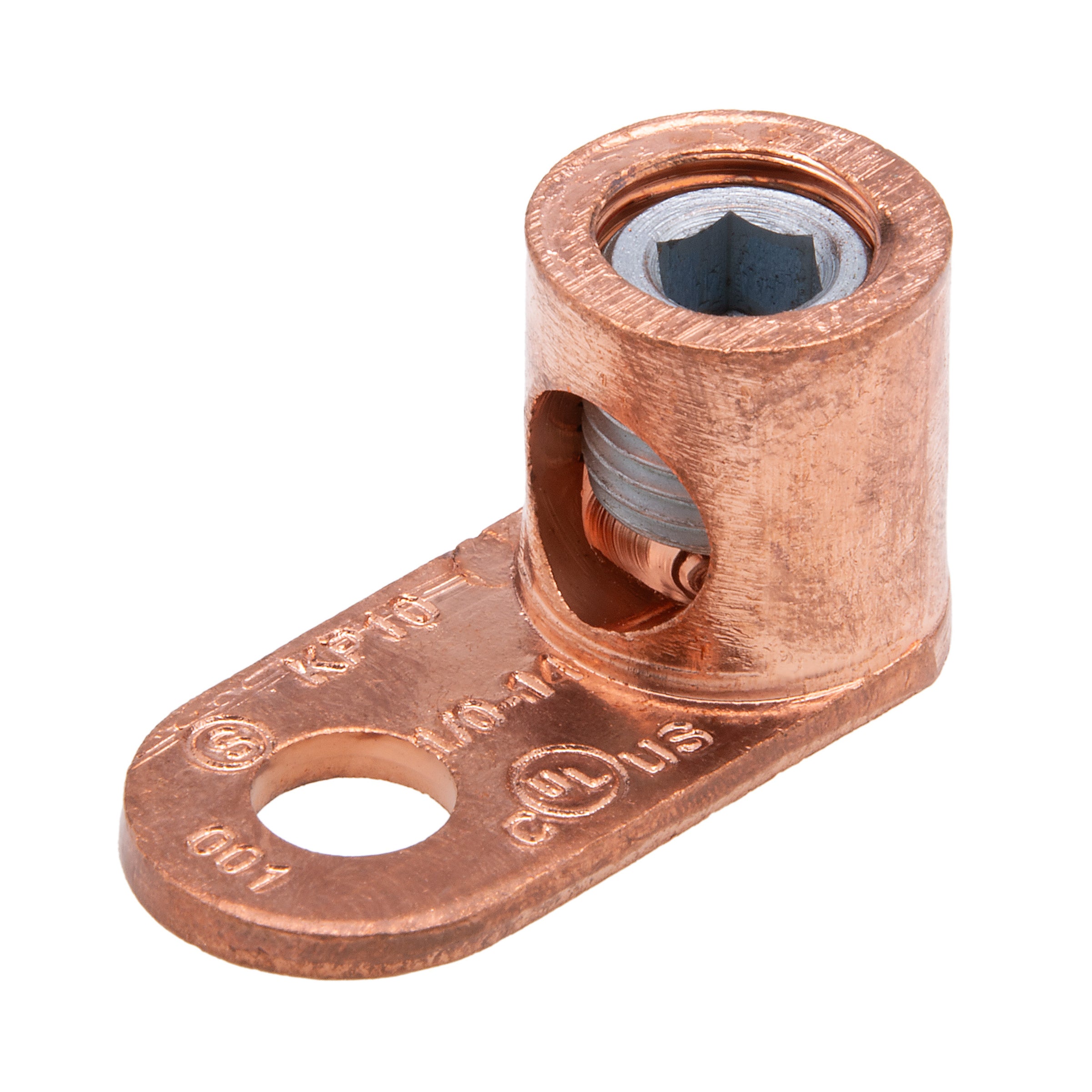

The NSI INDUSTRIES TL1/0 is a copper terminal lug designed for connecting #1/0 - #4 gauge wires. It features a 3/8 inch bolt hole and a single hole design. Copper terminal lugs are used for joining a wide range of cables or terminal blocks.
- Made from high conductivity copper alloy
- Range taking
- Re-usable
Product Highlights
The TL1/0 terminal lug is for use with copper wire only and is rated to 600V (2000V max. per UL486B).
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: TL1/0
-
Country of Origin: India
Technical Specifications
-
Bolt Hole: 3/8 INCH
-
Gauge: #1/0 - #4
-
Holes: 1 HOLE
-
Inspection Hole: NO
-
Lug Material: COPPER
-
UNSPSC Code: 39121400
-
Type: Copper Terminal Lug
-
Brand: NSI Industries
-
Width: 0.723 in
-
Finish: Copper
-
Height: 0.792 Inch
-
Length: 1.584 Inch
-
Voltage: 600 Volt
-
Material: Copper
-
Standard: UL486B
-
Bolt Size: 5/16 IN
-
Stud Size: 5/16 in
-
Sub Brand: Mechanical Connector
-
Applications: Wire Termination
-
Mounting Hole: 1
-
Max Temperature: 90 degrees C
-
Number of Poles: 1 Pole
-
Number of Ports: 1
-
Temperature Rating: 90 degrees C
-
Number of Conductors: 1,1
-
Buy American Compliant: Y
-
Environmental Conditions: 90 degrees C
-
ECCN: EAR99
-
QUANTITY: 1 Count
-
WIRE RANGE: 1/0 STR - 4 SOL
-
MTG. HOLE DIA.: 0.315
-
TORQUE VALUE (IN/LBS): 150
-
WRENCH SIZE: 1/4
-
TANG LENGTH: 0.370
-
TANG THICKNESS: 0.090
-
BRAND EQUIVALENT: Anderson LU-1/0 Blackburn L125 Burndy KA-25 Greaves D802 Ilsco CP-0 Morris 90554 Panduit PNL-1/0-L Penn Union PNL-1/0
-
MANUFACTURER: NSi Industries
-
PART NUMBER: TL1/0
-
Voltage Rating: 600 V
-
Conductor Type: Copper
-
Tang Thickness: 0.09
-
Tang Length: 0.866
-
Wire Range: 1/0 STR – 4 SOL
-
Assortment: Copper Mechanical Terminations
-
Priced Per: Each
-
Product Group (L2): Power Connectors and Grounding
-
PRODUCT GROUP: Power Connectors and Grounding
-
Pin Count (Number of Poles): Copper Mechanical Terminations
-
Primary Parent Category: Mechanical Terminals
-
Product Assortment: Copper Mechanical Terminations
-
PRODUCT CATEGORY: Mechanical Connectors
-
Product Family (L1): Connectivity
-
PRODUCT HEIGHT (IN): 0.792
-
PRODUCT LENGTH (IN): 1.584
-
PRODUCT LINE: Mechanical Terminals
-
Tang Width (IN): 0.723
-
TITLE: Terminal Lug 1/0-4 Copper
-
UL File #: E155274
-
UPC w/ check digit: 662381005724
-
VOLTAGE RATING: 600 V
-
Stud Diameter (in): 0.723
-
Strip Length (in): 0.09
-
Product Line (L4): Mechanical Terminals
-
Product Series: TL
-
PRODUCT WIDTH (IN): 0.723
-
Screw Material: No
-
Short Description (invoice): Terminal Lug Copper 1/0-4
-
SKU: TL1/0
-
Strain Relief Mesh Type: 0.866
-
Additional Title: Terminal Lug Copper 1/0-4
-
COUNTRY OF ORIGIN: IN
-
Fits Bolt Size (in): 1/4
-
Series: TL Series
-
Use With: Copper Wire
-
Number of Bolt Holes: 1
-
Specifications: 1 Pole, 1 Conductor, 0.37 in Hole Spacing, 0.315 in Hole Dia, 1/4 in Wrench, 150 in-lb Torque
