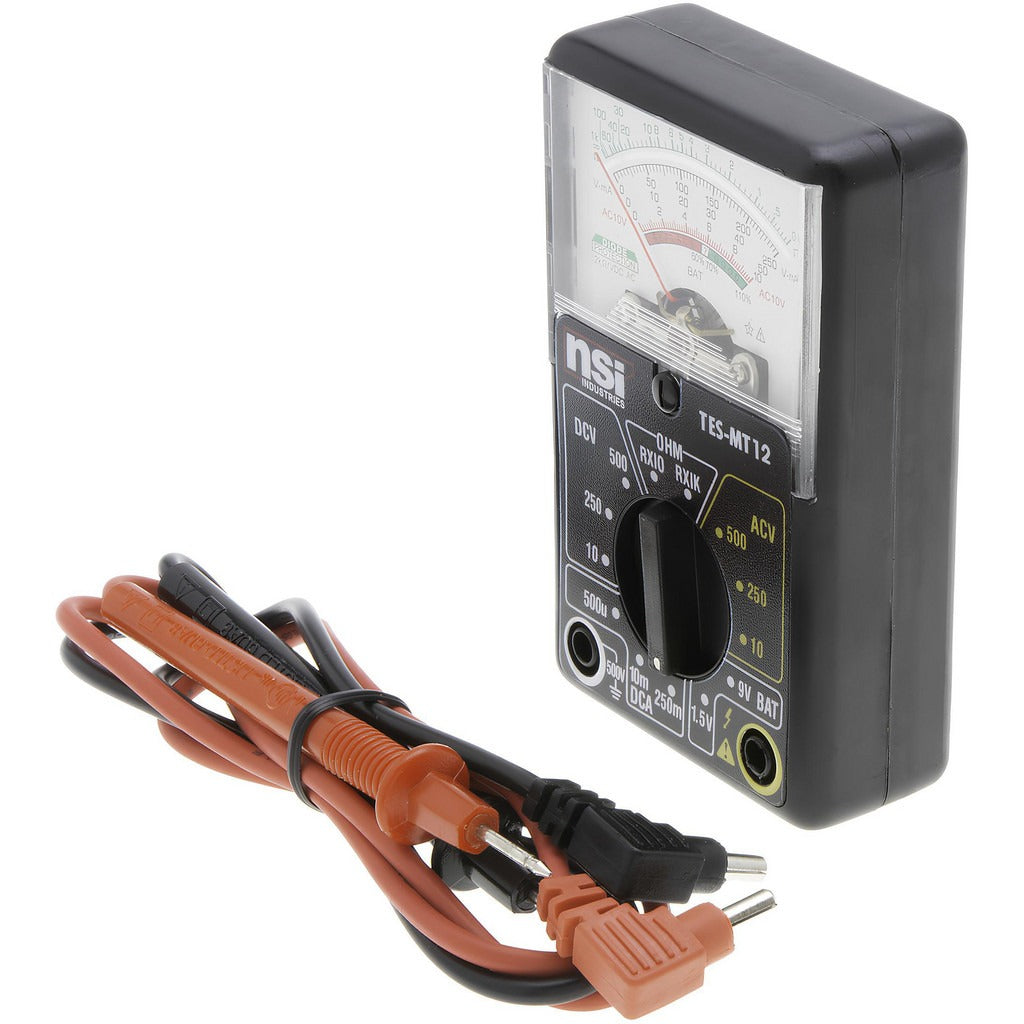

Nsi Industries TES-MT12 Analog Multimeter Ac Dc

Product Description

The NSI INDUSTRIES TES-MT12 is an analog multimeter designed for measuring AC voltage, DC voltage, and current in electrical systems. Analog multimeters provide continuous needle-deflection readings that many experienced technicians prefer for detecting fluctuating signals or trending values in real time. The TES-MT12 handles AC current up to 500 amps, DC current up to 500 amps, and AC current in the milliamp range up to 250 mA. At 3.23 pounds, it is a field-portable instrument suited for job-site diagnostics and panel troubleshooting. Licensed electricians, HVAC technicians, and electrical contractors rely on this type of instrument for routine circuit verification and load testing.

The TES-MT12 is suited for residential, commercial, and light industrial electrical work where analog readout is preferred or required. Typical applications include voltage verification at panels and disconnect boxes, current draw measurement on motors and compressors, and continuity checks on low-voltage control circuits. The milliamp range makes it useful for control-circuit diagnostics common in HVAC and building automation work.

Key Features

• Analog meter movement for real-time trending of fluctuating signals
• Measures AC voltage, DC voltage, and current in a single instrument
• AC current range up to 500 amps for high-load circuit testing
• DC current range up to 500 amps for battery and DC-circuit diagnostics
• Milliamp AC range up to 250 mA for low-level control circuit measurement
• Field-portable at 3.23 pounds

Compatibility

Designed as a general-purpose analog multimeter for use in electrical, HVAC, and mechanical service applications where AC voltage, DC voltage, and current measurement are required.

Installation Notes

Always de-energize the circuit or confirm safe working voltage before connecting test leads to live conductors. Follow NFPA 70E arc-flash safety guidelines and use appropriately rated personal protective equipment when testing energized panels or high-current circuits. Verify that the selected measurement range on the meter does not exceed the circuit values being tested before making contact. This instrument should be used by qualified electricians or trained technicians familiar with safe electrical testing procedures.
