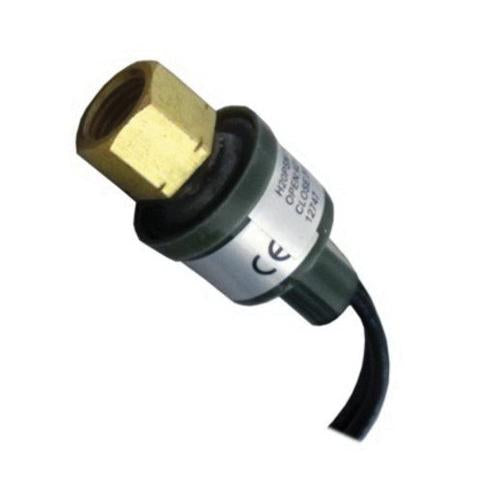

Nsi Industries SHP400300 Pressure Switch 24/120/240 VAC

Product Description

The NSI Industries SHP400300 is a high pressure switch with a Single Pole Single Throw (SPST) contact configuration. It operates on 24/120/240 VAC at 50/60 Hz, making it suitable for various electrical systems. This switch is designed for direct mounting and is compatible with HFC, HCFC, and CFC refrigerants, ideal for heat pump, air conditioning, and refrigeration systems.

• Features a snap acting stainless steel hermetically sealed sensor.
• Designed with a small size and lightweight for direct mounting.
• Provides excellent setpoint repeatability and stability.

Product Highlights

This high pressure switch offers precise control and durability for HVAC/R applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SHP400300

Technical Specifications

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SHP400300
• Height: 1.5
• Length: 5.0
• Width: 3.25
• Type: High Pressure, Screw On Control
• Contact Configuration: SPST
• Pressure Rating: 400 lb/sq-in Open, 300 lb/sq-in Close, 0 to 650 lb/sq-in Working, 5000 lb/sq-in Burst
• Temperature Rating: -31 to 248 deg F Ambient, 60 to 250 deg F Fluid
• Process Connection: 1/4 inch SAE Female Flare With Valve Core Depressor
• Operating Cycles: 100000 Cycle
• Mounting Type: Direct
• Rated Voltage: 24/120/240V(6 RLA, 36 LRA)
• Wire Leads: UL1015 18 AWG/18 inch L
• Amperage Rating: 10 A at 12 to 28 VAC/VDC, 5 A at 48 VAC/VDC, 5.8 A at 110 to 120 VAC/VDC, 2.9 A at 208 to 240 VAC/VDC Rated Load, 36 A Locked Rotor
• Compatible Refrigerants: HFC, HCFC and CFC Refrigerants
• Frequency: 50/60 Hz
• Applications: For Heat Pump Systems, Air Conditioning Systems and Refrigeration Systems
• Series: SHP Series
