Nsi Industries SC-8 Standard Barrel Tinned Copper Splice 8 AWG

Product Description

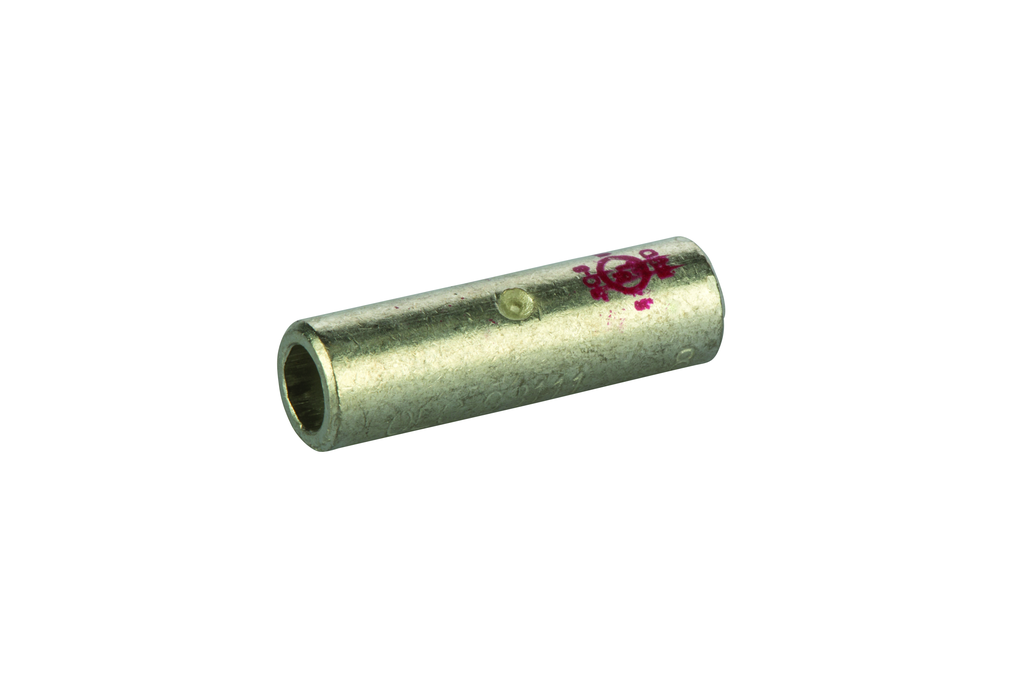

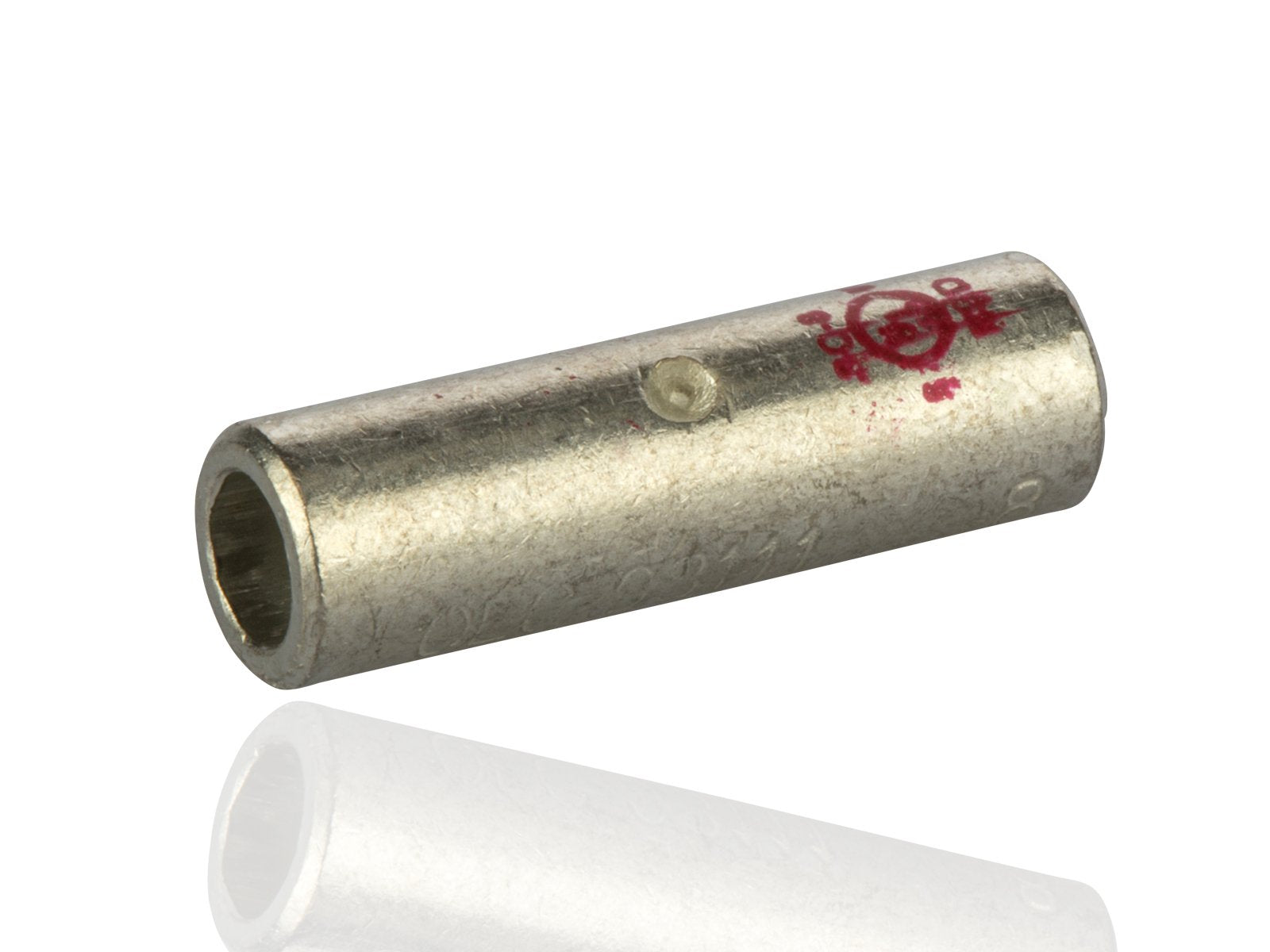

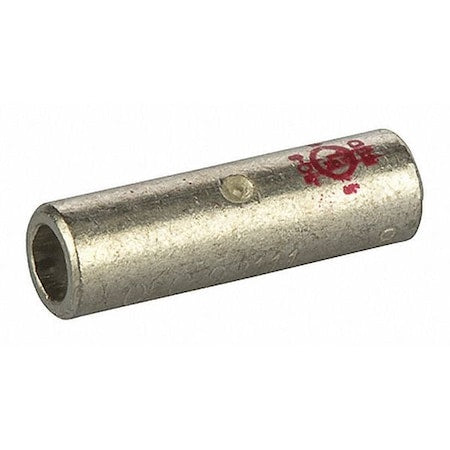

The NSI INDUSTRIES SC-8 is a standard barrel tinned copper splice produced from high conductivity copper tubing. It is tin-plated to provide corrosion resistance and marked with die index and color coded for easy reference. This splice is listed for 35KV maximum when properly installed and suitable for use at voltages up to 35kV provided connector is properly installed to cable manufacturer voltage stress relief instructions, 5KV is the maximum voltage in all bare splices.

• Produced from high conductivity copper tubing
• Serrations indicate proper crimp locations
• Tin-plated to provide corrosion resistance

Product Highlights

Standard barrel tinned copper splice with serrations for proper crimping and tin plating for corrosion resistance.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SC-8
• Country of Origin: India

Technical Specifications

• GTIN: 00662381037008
• Size: L=.900 - OD=.270 - ID=.170
• Type: Short Barrel - CU Splice
• Brand: NSI Industries
• Width: 0.27 in
• Finish: Tin Plated
• Height: 0.27 Inch
• Length: 0.9 Inch
• Material: Copper
• Sub Brand: Copper Compression
• Product UPC: 66238103700
• 12-Digit UPC: 662381037008
• Applications: Terminate, Splice, Tap Power Connectors
• Conductor Size: 8 AWG
• Max Temperature: 194 degrees F
• Temperature Rating: 90 degrees C
• Number of Conductors: 2
• Environmental Conditions: 90 degrees C
• QUANTITY: 1 Count
• RATED: 35KV Max
• WIRE RANGE: 8 AWG
• EXPANDED WIRE RANGE: 8 AWG
• ID: 0.173
• OD: 0.272
• Series: SC
• Strip Length: 1-1/4"
• Outer Diameter (OD): 0.27"
• Inner Diameter (ID): 0.17"
