Nsi Industries SC-6 Standard Barrel Tinned Copper Splice 6 AWG

Product Description

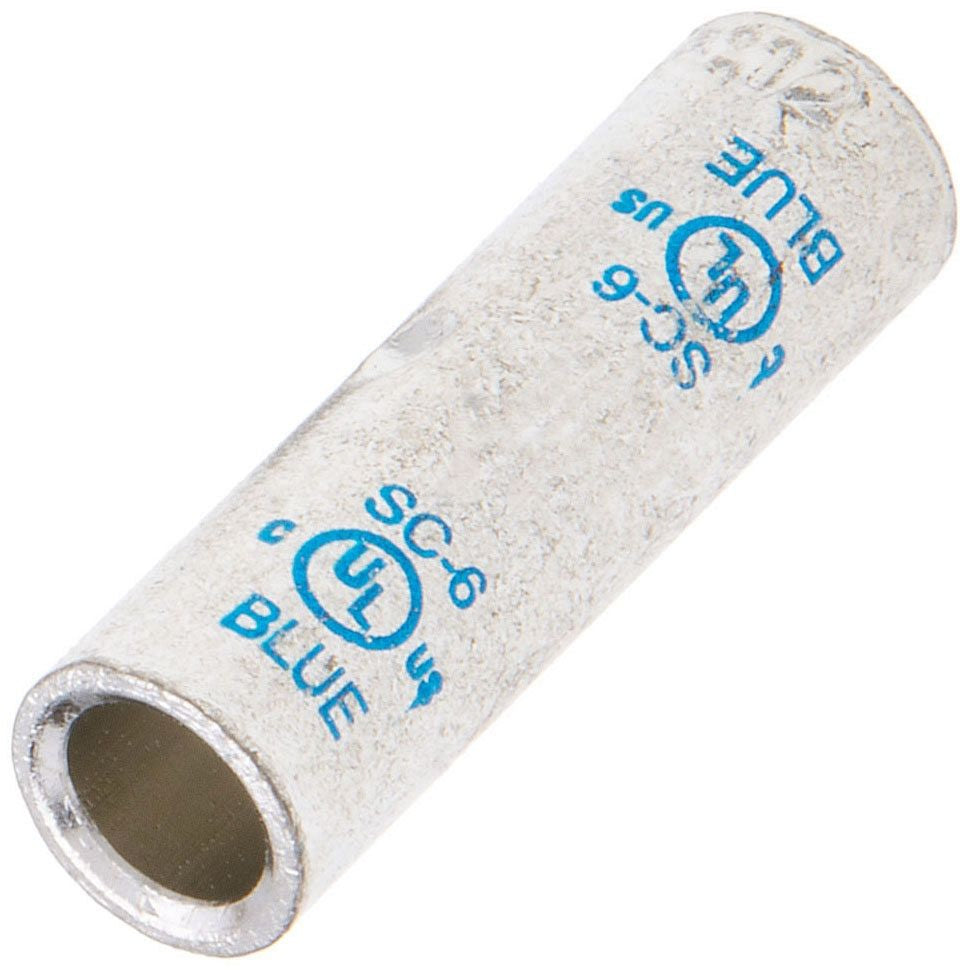

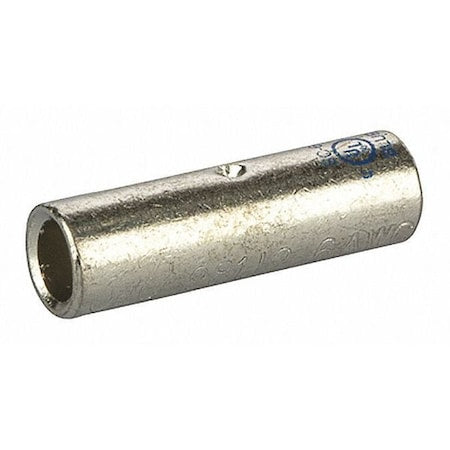

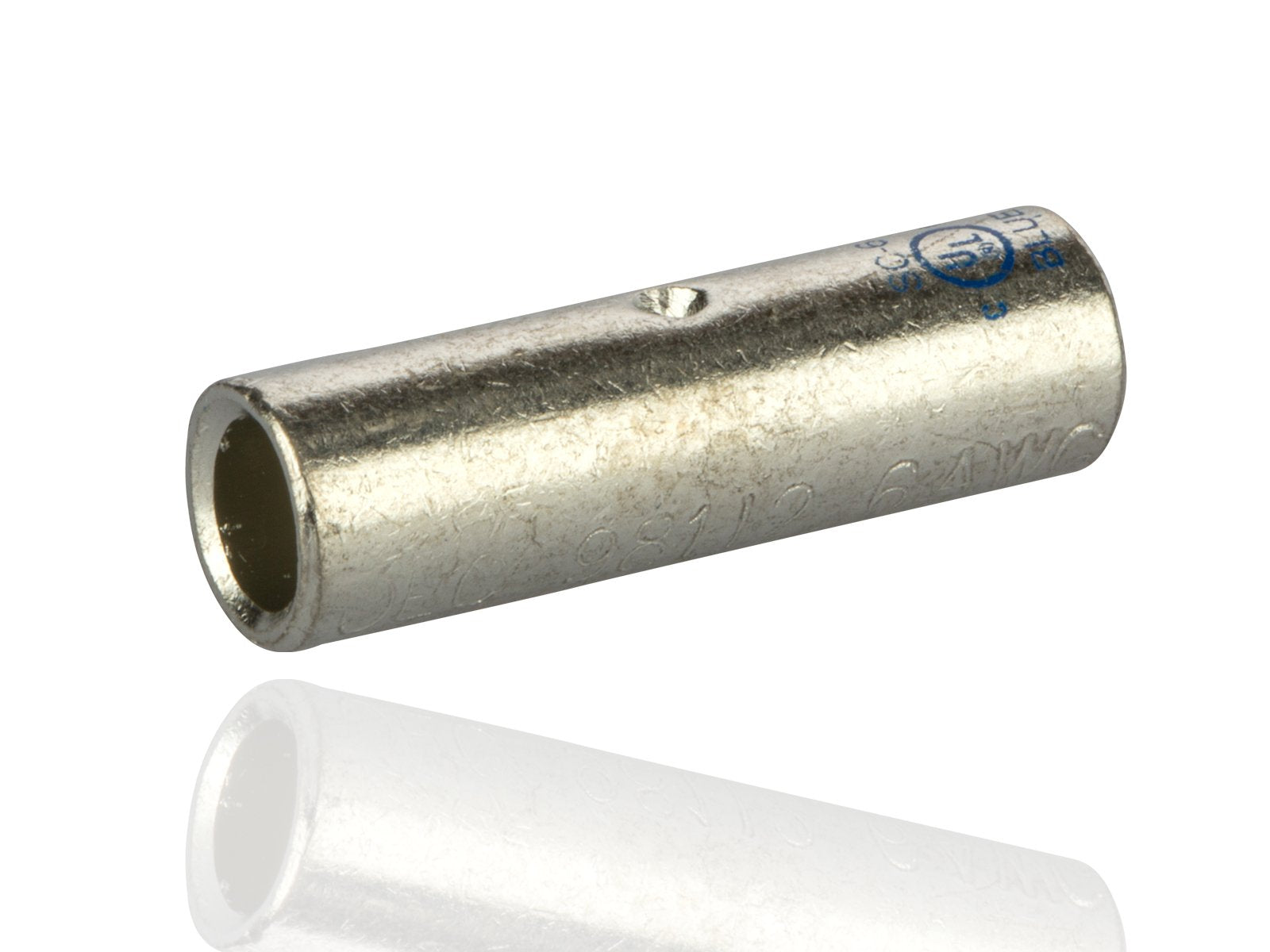

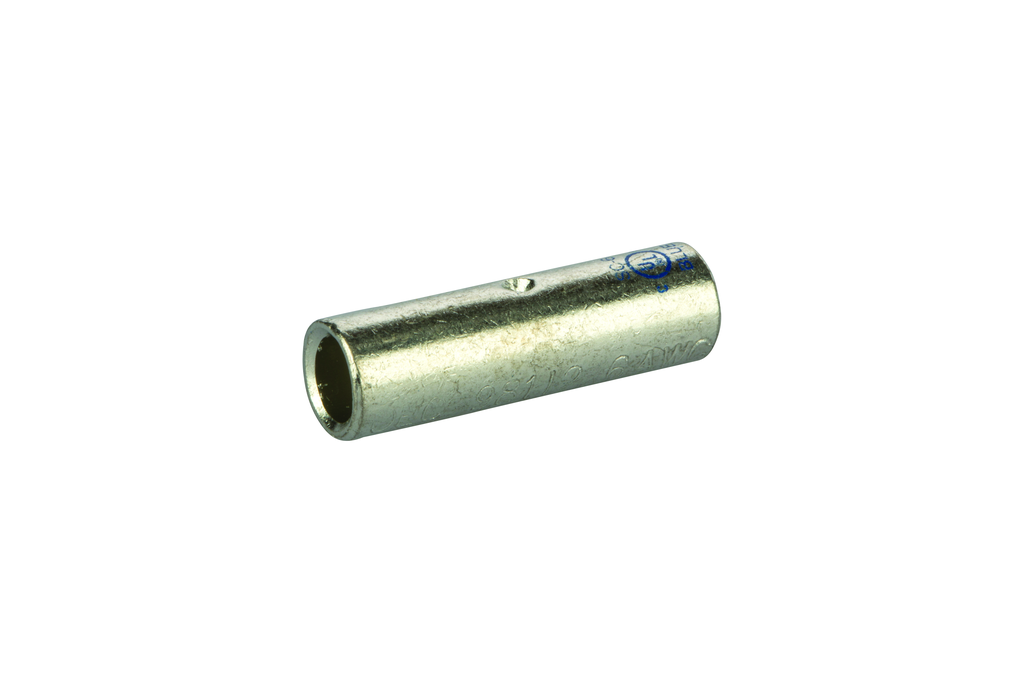

The NSI INDUSTRIES SC-6 is a standard barrel tinned copper splice for 6 AWG conductors. It is produced from high conductivity copper tubing and tin-plated for corrosion resistance. The splice is marked with a die index and color-coded for easy reference. It is UL listed for applications up to 35KV when properly installed.

• Produced from high conductivity copper tubing
• Serrations indicate proper crimp locations
• Tin-plated to provide corrosion resistance

Product Highlights

The NSI SC-6 copper compression splice is ideal for terminating, splicing, and tapping power connectors. It supports up to 600V and has a temperature rating of 90 degrees C.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SC-6
• Country of Origin: India

Technical Specifications

• Conductor Size: 6 AWG
• Termination/Splice: SPLICE
• Indoor/Outdoor: INDOOR/OUTDOOR
• Voltage: 600V
• Size: L=1.00 - OD=.300 - ID=.200
• Type: Short Barrel - CU Splice
• Brand: NSI Industries
• Width: 0.3 in
• Finish: Tin Plated
• Height: 0.3 Inch
• Length: 1 Inch
• Material: Copper
• Sub Brand: Copper Compression
• Product UPC: 66238103701
• 12-Digit UPC: 662381037015
• Applications: Terminate, Splice, Tap Power Connectors
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Country of Origin: India
• Temperature Rating: 90 deg C
• Number of Conductors: 2
• Environmental Conditions: 90 degrees C
• Approval: UL (Canada and US)
• Barrel Type: Short
• Body Material: Tin Plated Copper
• Color Code: Blue
• Inner Diameter REF: 0.21 IN
• Outer Diameter: 0.29 Inch
• Model / MPN: SC-6
• Conductor Type: Stranded Copper
• Voltage Rating: 600 VAC
• Specifications: 1 Pole, 2 Conductor
• Barrel Size: 0.2 in ID x 0.3 in OD
