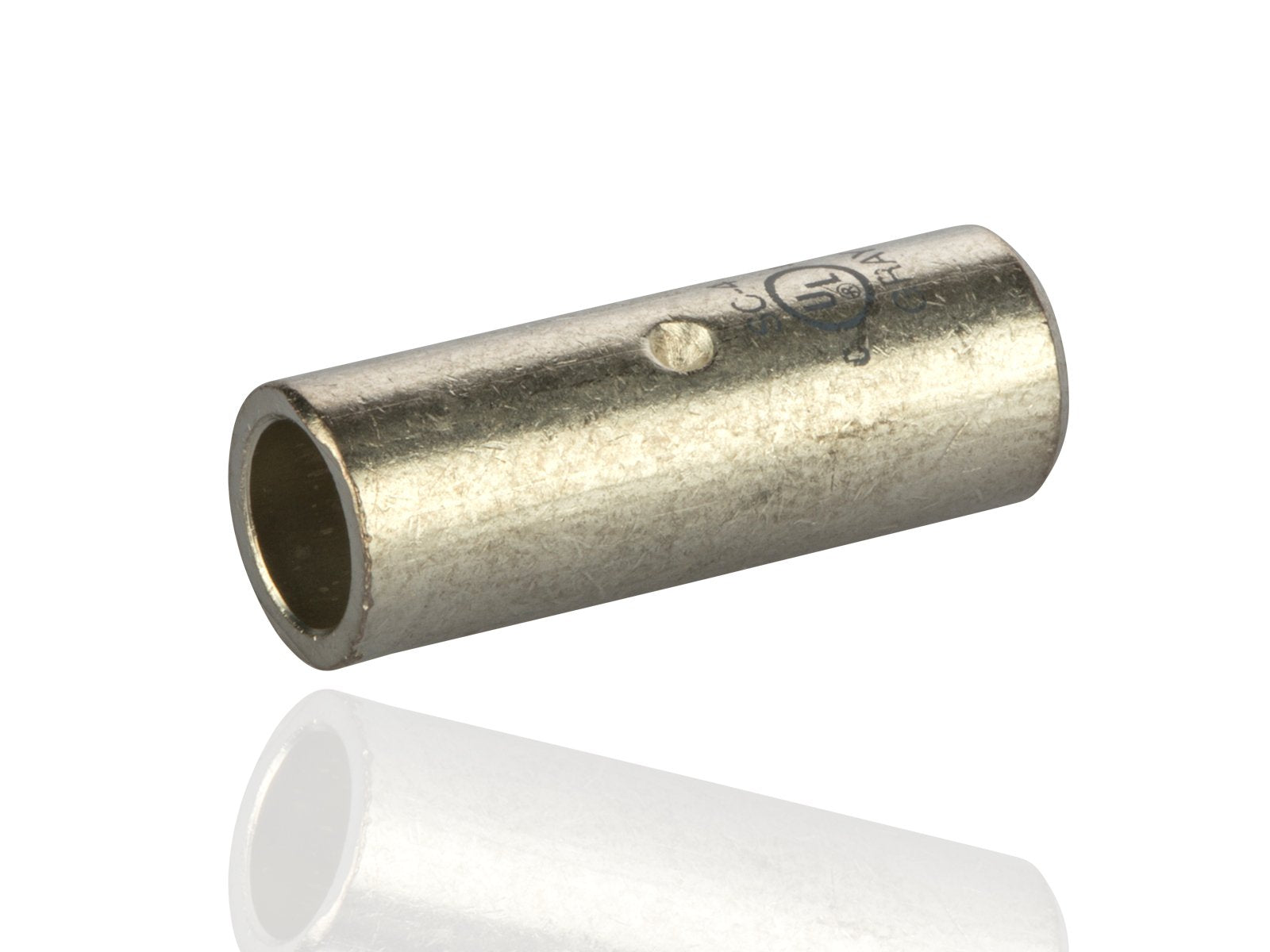

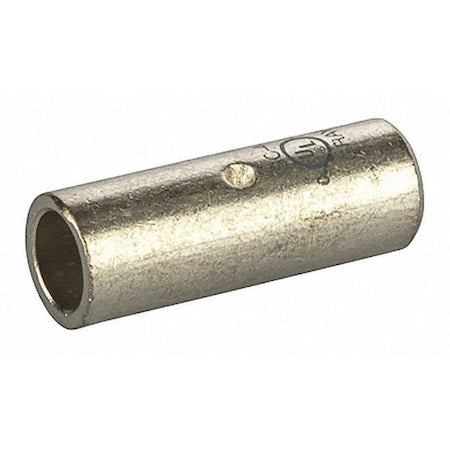

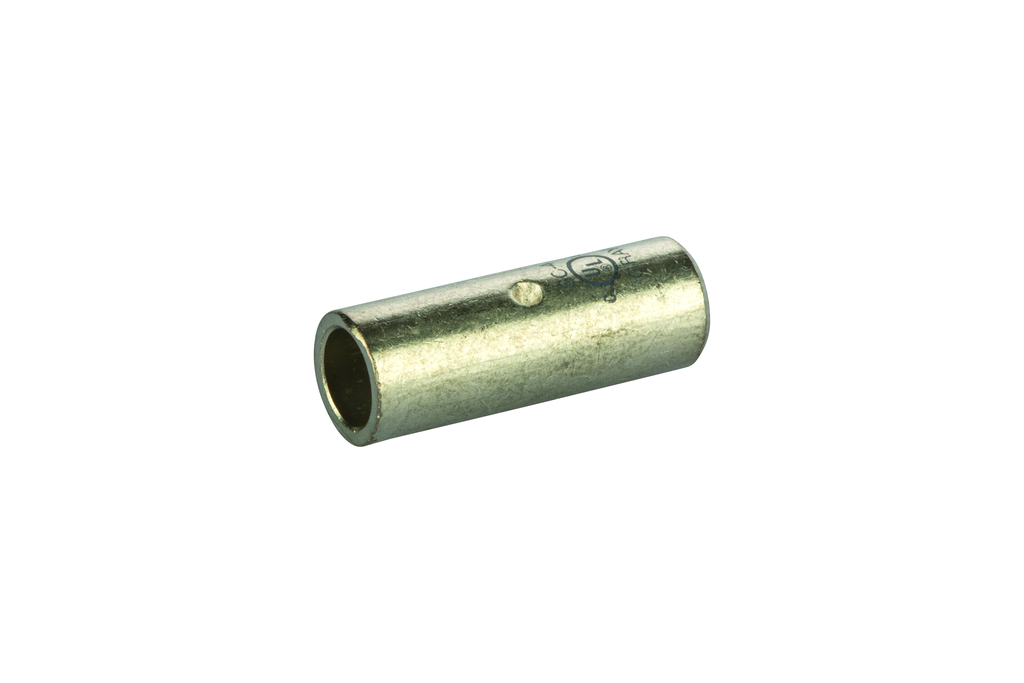

Nsi Industries SC-4 Standard Barrel Tinned Copper Splice 4 AWG

Product Description

The NSI INDUSTRIES SC-4 is a standard barrel tinned copper splice designed for 4 AWG conductors. These copper compression connectors are produced from high conductivity copper tubing and tin-plated for corrosion resistance. They are marked with a die index and color-coded for easy reference. Suitable for indoor and outdoor applications to terminate, splice and tap power connectors.

• Produced from high conductivity copper tubing
• Tin-plated to provide corrosion resistance
• Serrations indicate proper crimp locations
• Suitable for use at voltages up to 35kV provided connector is properly installed

Product Highlights

Standard barrel tinned copper splice for 4 AWG conductors, tin-plated for corrosion resistance and marked with die index and color coded.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: SC-4
• Country of Origin: India

Technical Specifications

• Conductor Size: 4 AWG
• Termination/Splice: SPLICE
• Indoor/Outdoor: INDOOR/OUTDOOR
• Voltage: 600V
• Size: L=1.00 - OD=.340 - ID=.250
• Type: Dual Rated
• Brand: NSI Industries
• Width: 0.34 in
• Finish: Tin Plated
• Height: 0.34 Inch
• Length: 1 Inch
• Material: Copper
• Standard: UL486
• Sub Brand: Copper Compression
• Product UPC: 66238103702
• 12-Digit UPC: 662381037022
• Applications: Terminate, Splice, Tap Power Connectors
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Number of Conductors: 2
• Environmental Conditions: 90 degrees C
• Rated: 35KV Max
• Wire Range: 4 AWG
• Expanded Wire Range: 4 - 6 AWG
• Color Code: Gray
• ID: 0.252
• OD: 0.343
• Brand Equivalent: Blackburn CSP4 Burndy YS4CLBOX Ilsco CT4 Homac SC 4 Morris 94414 Panduit SCS4-L Penn Union BCU-4
• Rated Voltage: 600 V
• Rated Temperature: 90 degrees C
• Series: SC
• Strip Length: 1-1/4"
• Outer Diameter (OD): 0.34"
• Inner Diameter (ID): 0.25"
• ECCN: EAR99
• Color Family: Gray
• Barrel Size: 0.25 in ID x 0.34 in OD
• Barrel Type: Short
• Catalog ID: NSISC-4
• Conductor Type: Stranded Copper
• Specifications: Single pole 2-Conductor
• Temperature Rating: 90 deg C
• Voltage Rating: 600 VAC
• Standard & Approvals: UL486 Listed
