Nsi Industries Pts600 600 Mcm Solid Pin Terminal

Product Description

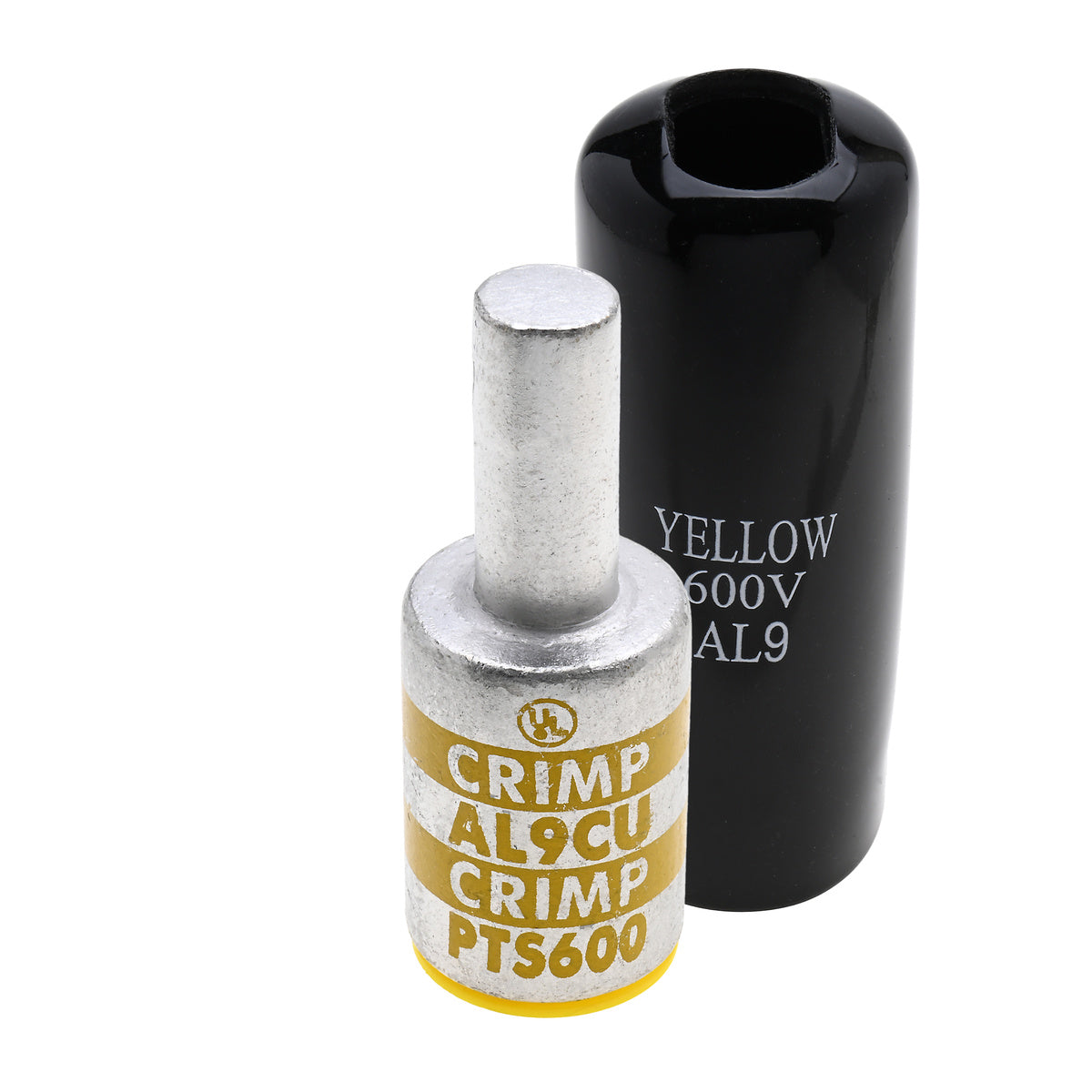

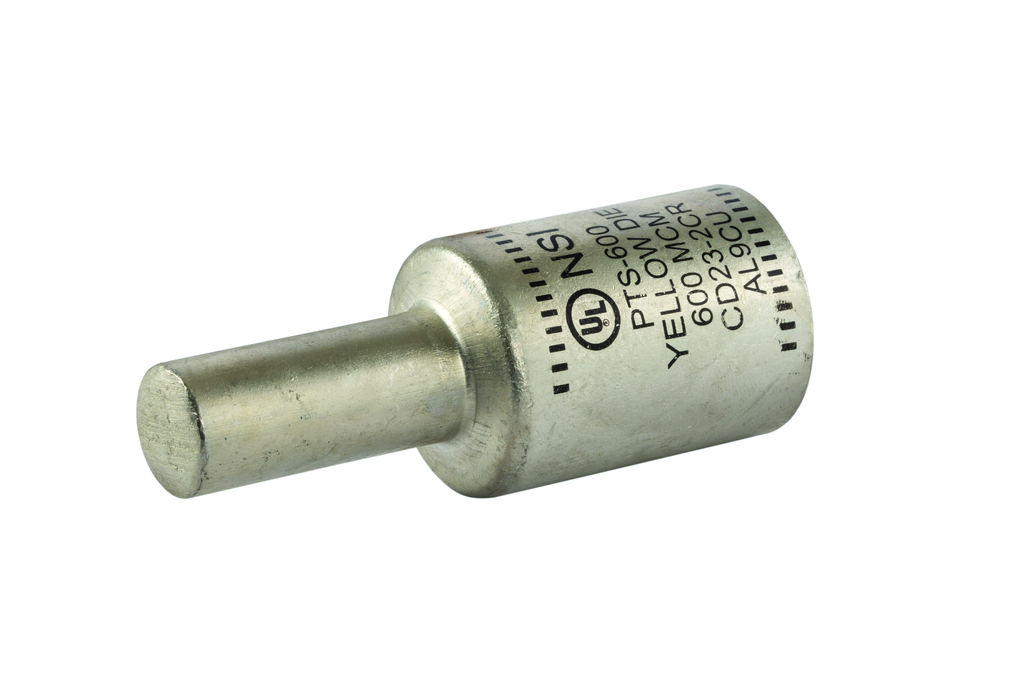

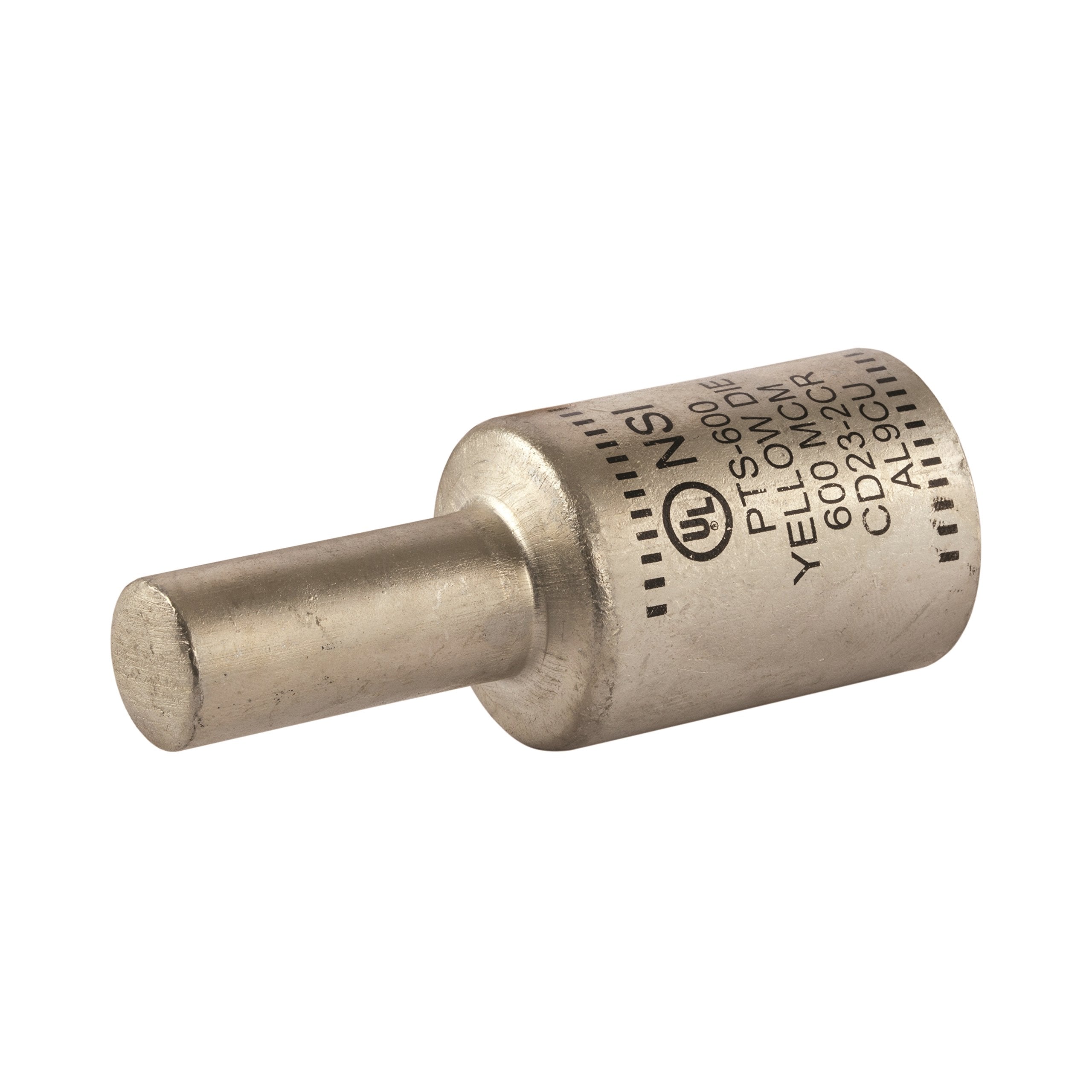

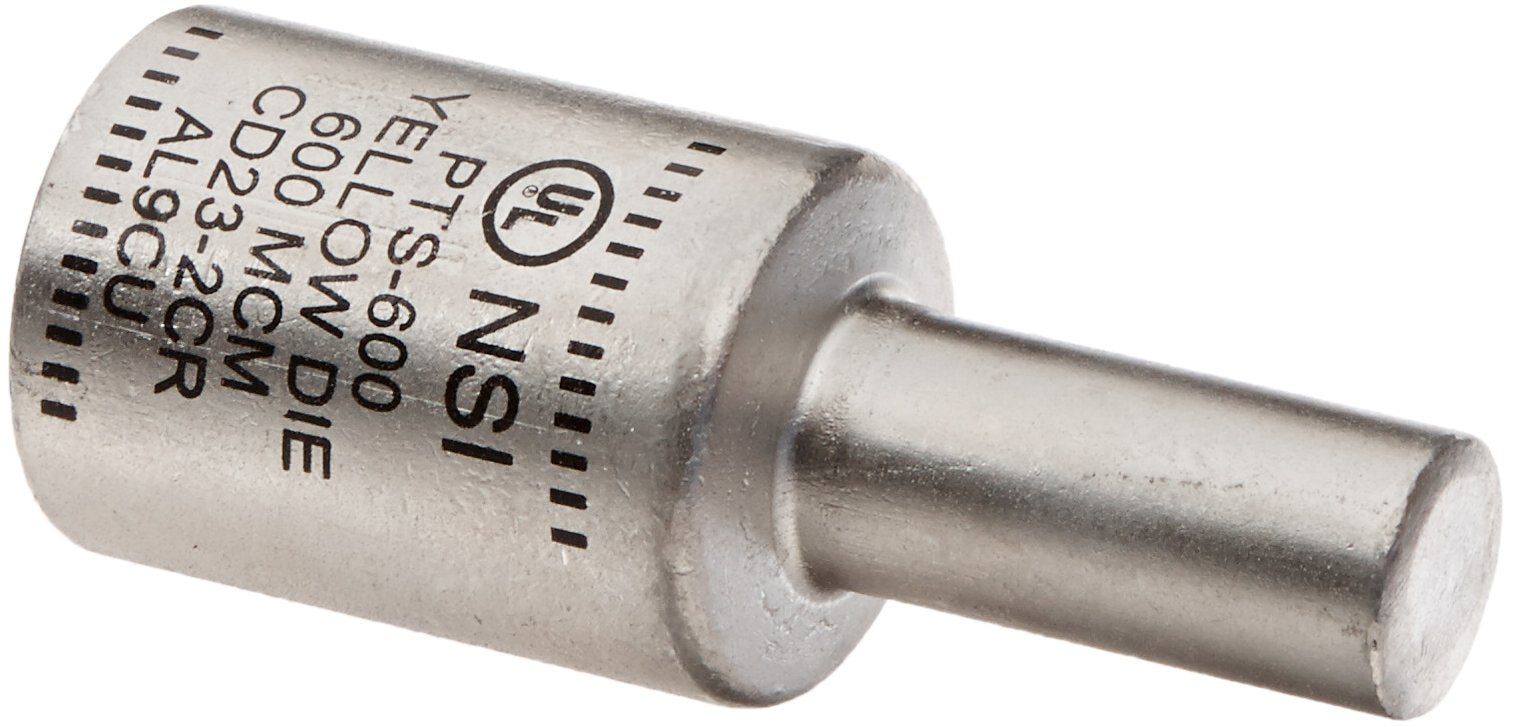

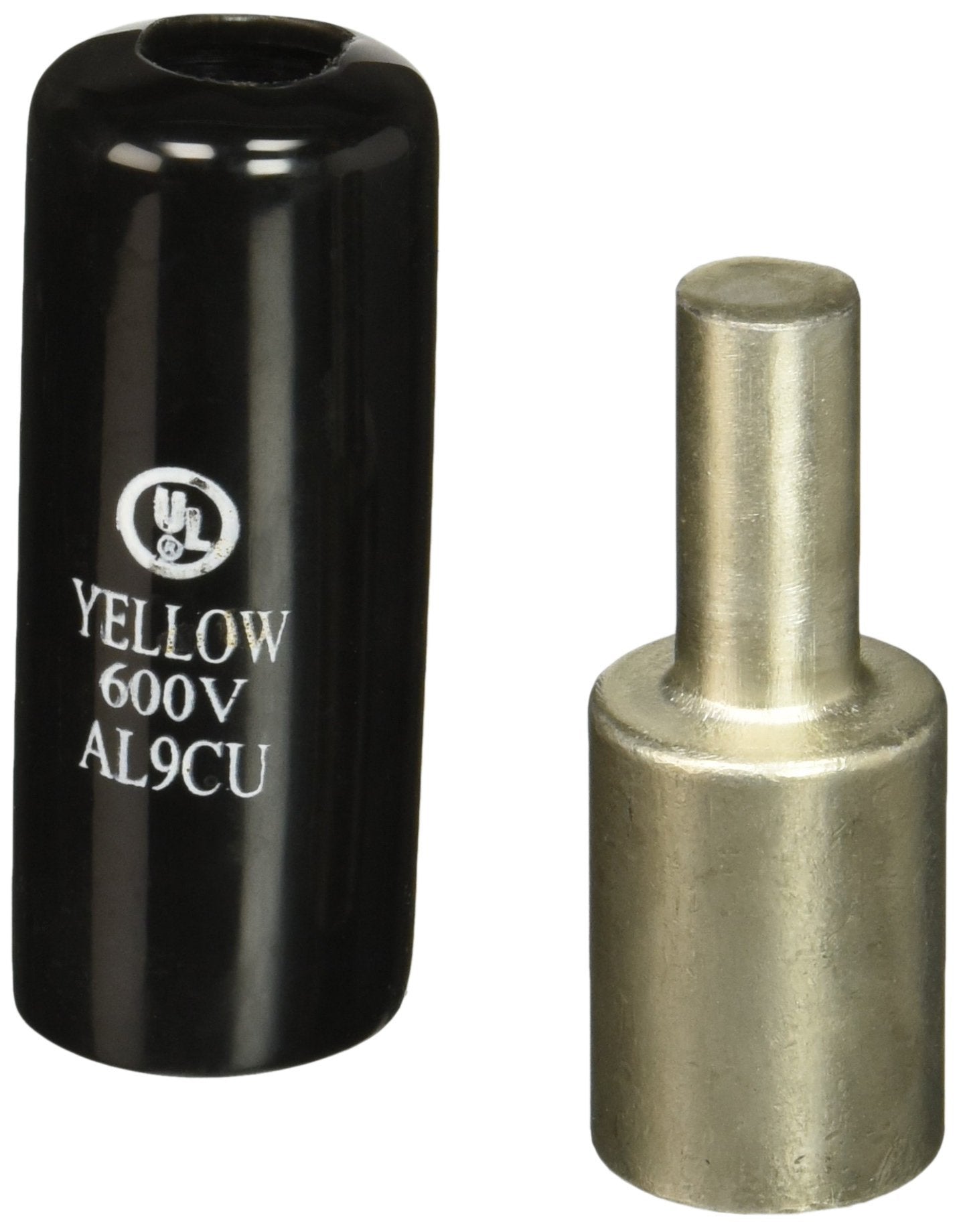

The NSI INDUSTRIES PTS600 is a solid pin terminal designed for terminating both aluminum and copper conductors. The solid aluminum pin is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. Rated at 600 Volts, it is suitable for terminate, splice, tap power connectors.

• All-aluminum pin terminal designed for termination of both aluminum and copper conductors
• The pin is solid aluminum
• The connector is tin plated to provide low contact resistance and oxidation protection

Product Highlights

The NSI PTS600 ensures reliable connections for both aluminum and copper conductors with its pre-filled oxide inhibitor and easy installation cover.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: PTS600
• Country of Origin: India

Technical Specifications

• Type: Dual Rated
• Brand: NSI Industries
• Width: 1.46 in
• Finish: Tin Plated
• Height: 1.46 Inch
• Length: 3.67 Inch
• Voltage: 600 Volt
• Material: Aluminum
• Standard: UL486
• Sub Brand: Pin Terminals
• Wire Size: 600 kcmil
• Applications: Terminate, Splice, Tap Power Connectors
• Conductor Size: 600 kcmil
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Temperature Rating: 90 degrees C
• Insulation Material: Plastisol Cover
• Number of Conductors: 1
• Environmental Conditions: 90 degrees C
• Pin Size: 400 MCM
• Pin Diameter: 0.73 inches
• Body Length: 2.03 inches
• Pin Length: 1.64 inches
• Pri. Wire Size: 600MCM
• Poles: 1
• Item [Specifications]: Pin Terminal
• Standards [Specifications]: UL486
• Wire Type [Specifications]: Stranded
• Max. Temp. [Specifications]: 90 Degrees C
• Wire Range [Specifications]: 600 MCM
• Application [Specifications]: Terminate, Splice, Tap Power Connectors
• Max. Voltage [Specifications]: 600V
• Terminal Type [Specifications]: Solid Pin
• Overall Length [Specifications]: 3.67 in
• Insulation Type [Specifications]: Plastisol Cover
• Pin Length (In.) [Specifications]: 1.64
• Connection Material [Specifications]: Tin-Plated Aluminum
• Voltage Rating: 600V
• Conductor Type: Copper, Aluminum
• Series: PTS
• Connector Style: Pin
• MPN: PTS-600
• Brand Name: NSi
• Conductor Range: 600 MCM (STR)
• Special Features: 400 to 600 kcmil standard pin size Cover is provided for quick installation Designed for termination of both aluminum and copper conductors N1240 crimp tool Plastisol cover insulation Pre-filled with oxide inhibitor and capped with color coded cap indicating color of die to use Solid pin is tin plated to provide low contact resistance and oxidation protection
• Sub_Brand: NSi
• Product UPC: 66238103363
• GTiN: 00662381033635
