Product Description

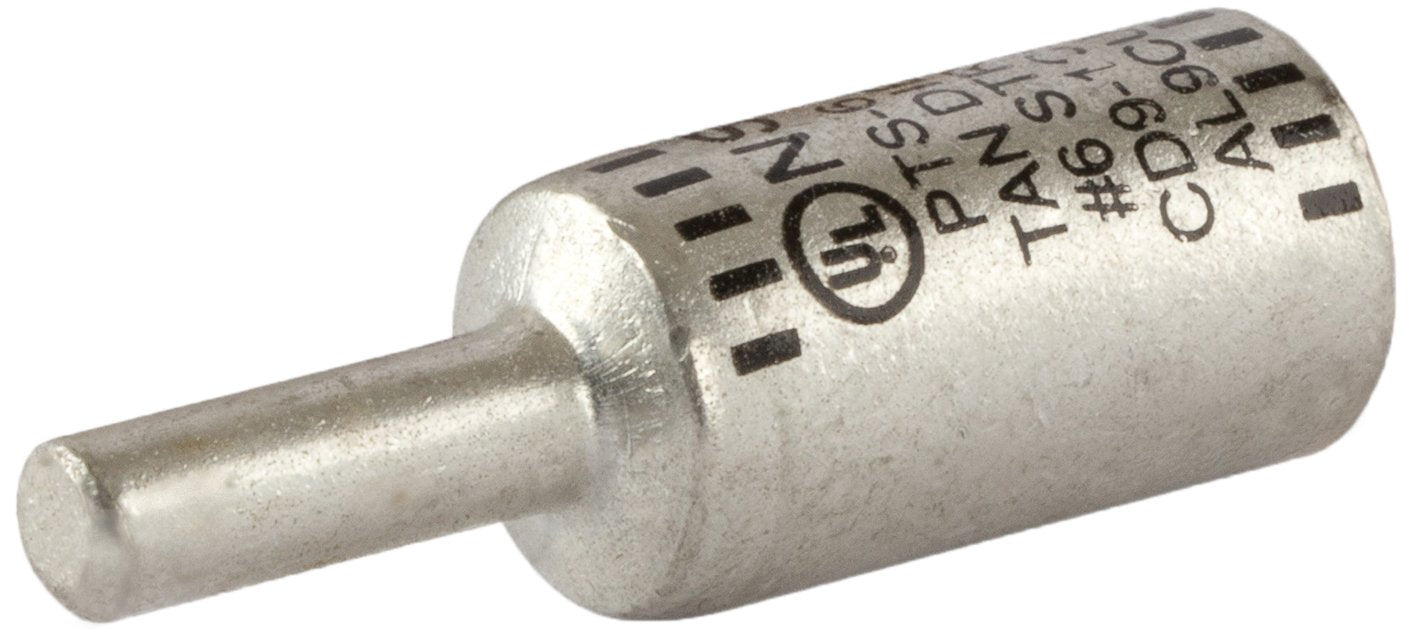

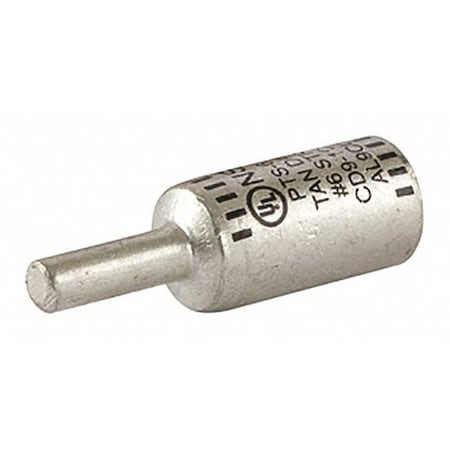

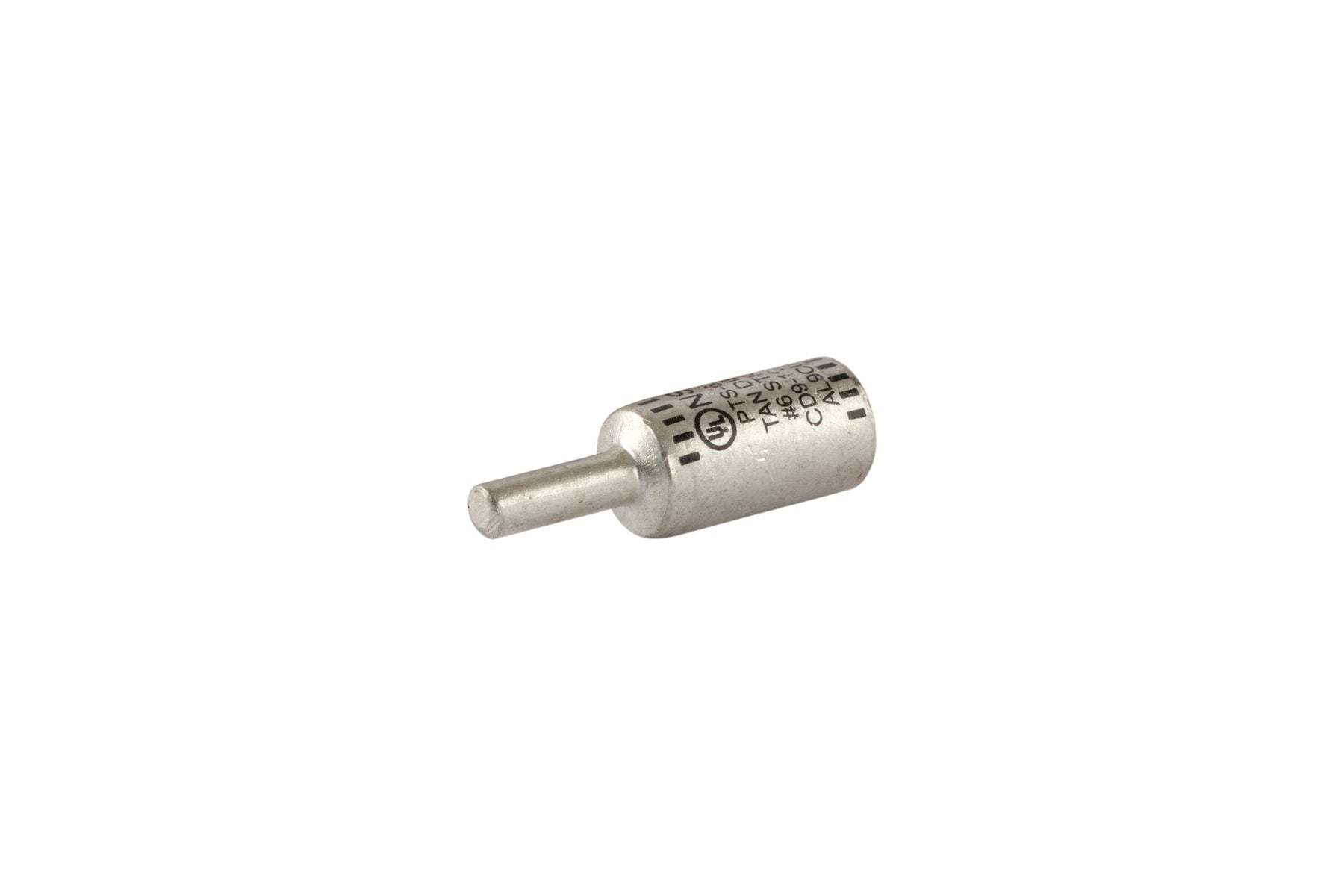

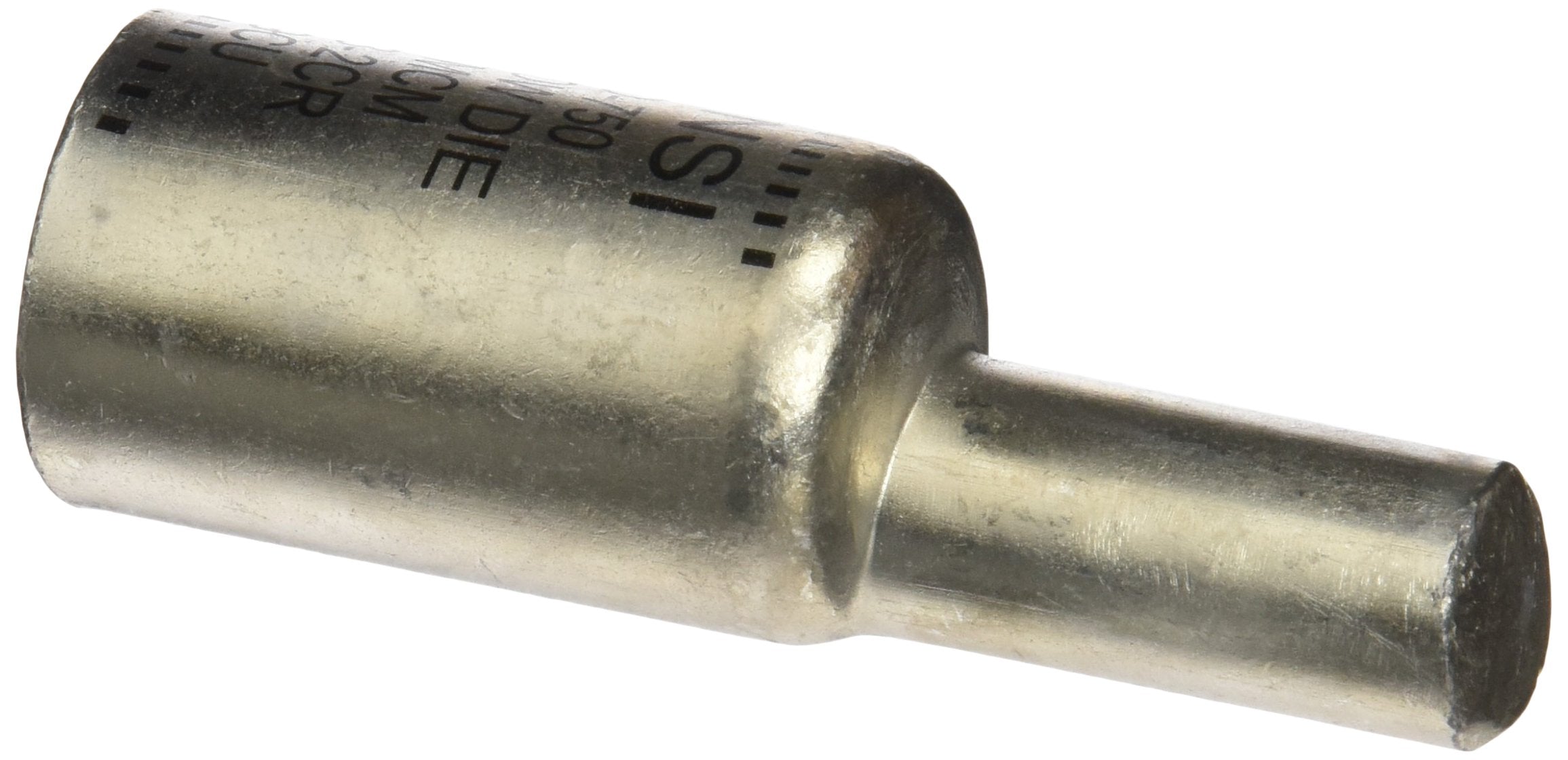

The NSI INDUSTRIES PTS6 is an aluminum, tin-plated pin terminal designed for terminating both aluminum and copper conductors. The connector is pre-filled with oxide inhibitor and capped with a color-coded cap. It is rated at 600V and has a temperature rating of 90 degrees C.
- Designed for termination of both aluminum and copper conductors
- Connector is tin plated to provide low contact resistance and oxidation protection
- Connector is pre-filled with Oxide Inhibitor
Product Highlights
The NSI PTS6 pin terminal ensures a reliable connection for power connectors. It is suitable for terminating, splicing and tapping power connectors.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: PTS6
-
Country of Origin: India
Technical Specifications
-
Type: Solid Pin
-
Brand: NSI Industries
-
Finish: Tin Plated
-
Voltage: 600 Volt
-
Material: Aluminum
-
Standard: UL486
-
Sub Brand: Pin Terminals
-
Wire Size: 6 AWG
-
Applications: Terminate, Splice, Tap Power Connectors
-
Conductor Size: 6 to 4 AWG
-
Max Temperature: 194 degrees F
-
Number of Poles: 1 Pole
-
Country of Origin: India
-
Temperature Rating: 90 deg C
-
Insulation Material: Plastisol Cover
-
Number of Conductors: 1
-
Conductor Material: Copper and Aluminum
-
Pin Size: 4 AWG
-
Pin Diameter: 0.24 in
-
Rated: 600 Volts
-
Wire Range: 6 Str
-
Series: PTS Series
-
Specifications: 1-Conductor, 1-Pole, 0.22 in ID x 0.598 in OD Barrel
-
Conductor Type: Stranded Copper
-
Die Color Code: Tan
-
Barrel Length: 1.169 in
