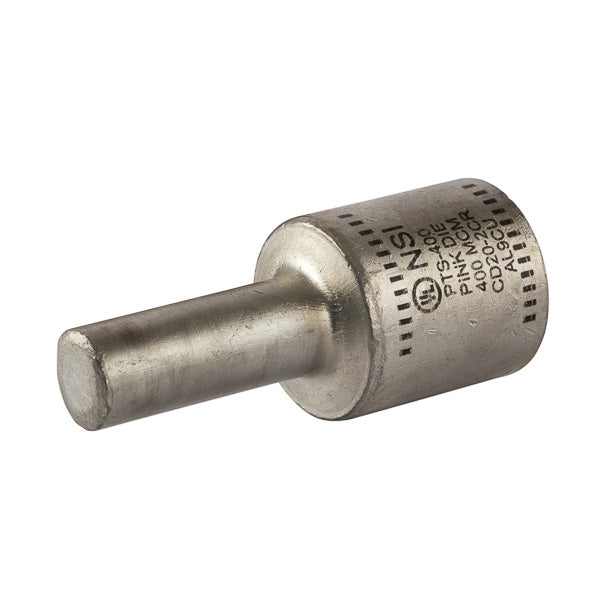

Nsi Industries PTS400 Pin Terminal 400 MCM

Product Description

The NSI INDUSTRIES PTS400 is a solid pin terminal designed for terminating both aluminum and copper conductors. The solid aluminum pin is tin-plated and pre-filled with oxide inhibitor. It comes with a cover for quick installation and is rated for 600 Volts. It is suitable for terminating, splicing and tapping power connectors.

• All-aluminum pin terminal designed for termination of both aluminum and copper conductors
• The pin is solid aluminum
• The connector is tin plated to provide low contact resistance and oxidation protection

Product Highlights

The NSI PTS400 pin terminal ensures a reliable connection with low contact resistance and oxidation protection.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: PTS400
• Country of Origin: India

Technical Specifications

• Type: Centered Dual Rated
• Brand: NSI Industries
• Width: 1.31 in
• Finish: Tin Plated
• Height: 1.31 Inch
• Length: 3.08 Inch
• Voltage: 600 Volt
• Material: Aluminum
• Standard: UL486
• Sub Brand: Pin Terminals
• Wire Size: 400 kcmil
• Applications: Terminate, Splice, Tap Power Connectors
• Conductor Size: 300 to 400 kcmil
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Temperature Rating: 90 deg C
• Insulation Material: Plastisol Cover
• Number of Conductors: 1
• Size: L=3.07 - OD=1.31 - ID=.763 - Pin Dia=.620
• Quantity: 1 Count
• Rated: 600 Volts
• Wire Range: 400 MCM
• Color Code: Pink
• Pin Size O.D.: 1.310
• Pin Size I.D.: 0.763
• Pin Diameter: 0.620
• Pin Length: 1.590
• Body Length: 1.480
• Item [Specifications]: Pin Terminal
• Standards [Specifications]: UL486
• Wire Type [Specifications]: Stranded
• Max. Temp. [Specifications]: 90 Degrees C
• Wire Range [Specifications]: 400 MCM
• Application [Specifications]: Terminate, Splice, Tap Power Connectors
• Max. Voltage [Specifications]: 600V
• Terminal Type [Specifications]: Solid Pin
• Overall Length [Specifications]: 3.07 in
• Insulation Type [Specifications]: Plastisol Cover
• Insulation Color [Specifications]: Pink
• Pin Length (In.) [Specifications]: 1.59
• Connection Material [Specifications]: Tin-Plated Aluminum
• Voltage Rating: 600 V AC, 600 VAC
• Pack Qty: 10
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded Copper
• Assortment: Pin Terminals
• Die Color Code: Pink
• Barrel Length: 1.48 in
• Series: PTS Series
• Specifications: 1-Conductor, 1-Pole, 0.763 in ID x 1.31 in OD Barrel
• Conductor Range: 400 MCM (STR)
• Connection: 300 Pin
• Special Features: 400 MCM (STR) - 300 Pin Size
• Manufacturer Name: NSi Industries
• Overall Length: 3.07 in
