Nsi Industries PTS4 4 AWG solid pin terminal

Product Description

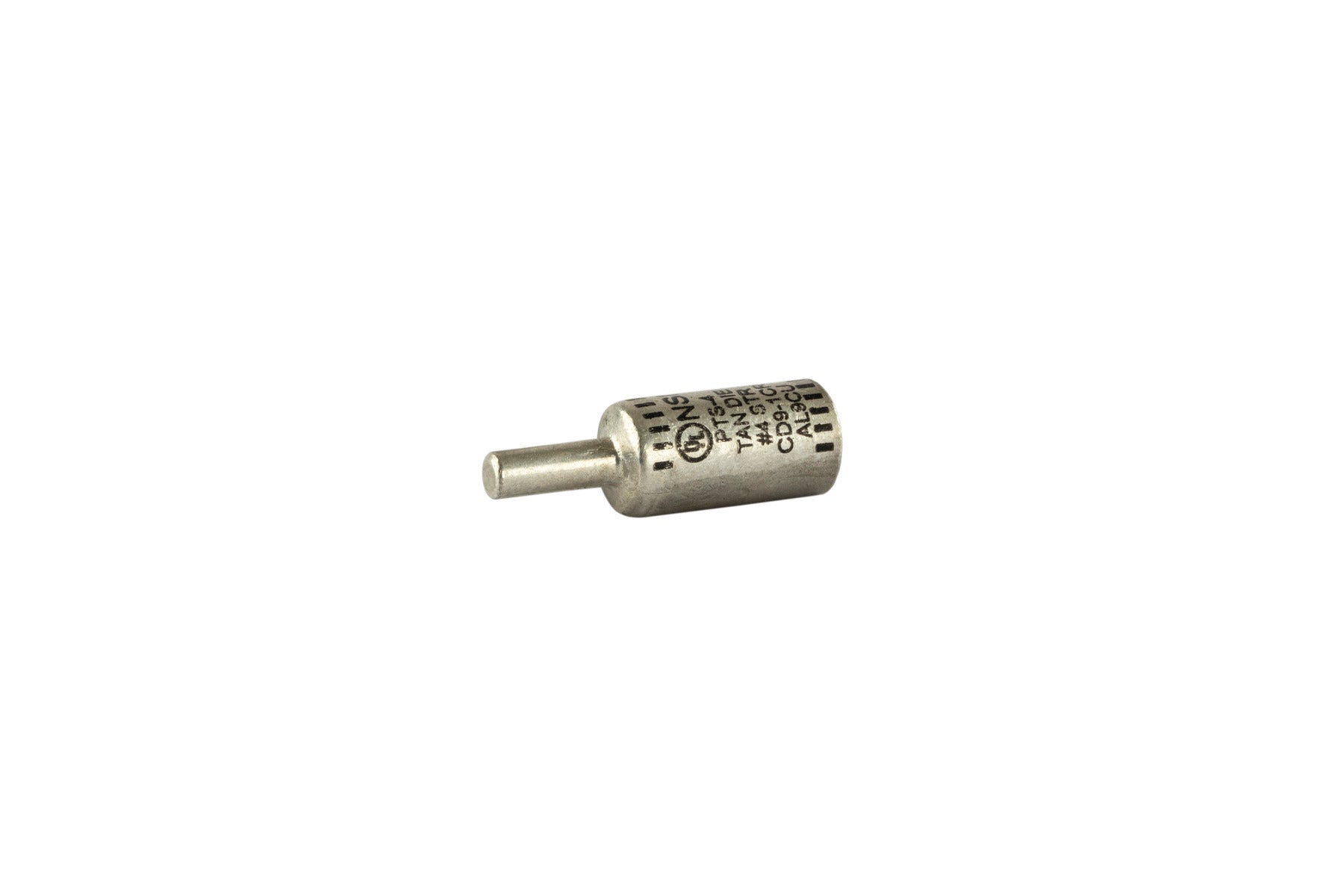

The NSI INDUSTRIES PTS4 is an all-aluminum pin terminal designed for terminating both aluminum and copper conductors. The solid aluminum pin is tin-plated and pre-filled with oxide inhibitor. A cover is provided for quick installation. It is rated to 600 Volts.

• Designed for termination of both aluminum and copper conductors
• Tin plated to provide low contact resistance and oxidation protection

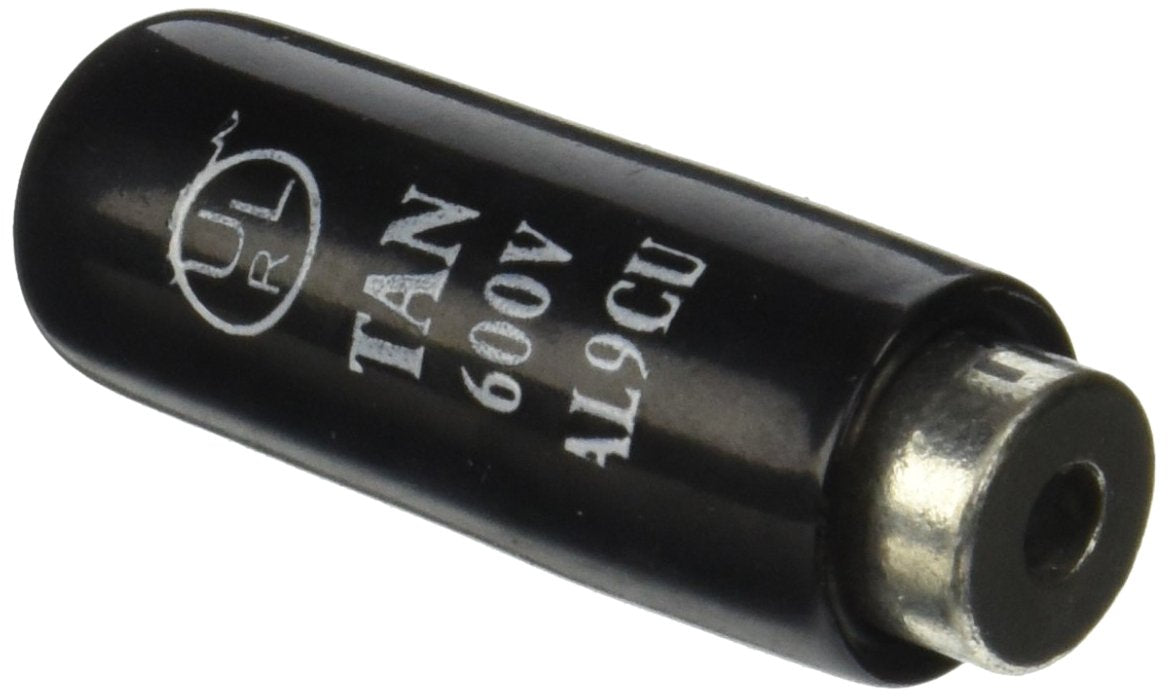

• Pre-filled with Oxide Inhibitor and capped with color coded cap

Product Highlights

The NSI PTS4 pin terminal is UL Listed and suitable for terminating, splicing and tapping power connectors.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: PTS4
• Country of Origin: India

Technical Specifications

• Type: Solid Pin
• Brand: NSI Industries
• Color: Tan
• Finish: Tin Plated
• Voltage: 600 Volt
• Material: Aluminum
• Standard: UL486
• Sub Brand: Pin Terminals
• Wire Size: 4 AWG
• Applications: Terminate, Splice, Tap Power Connectors
• Conductor Size: 4 AWG
• Connection Type: # 4 Pin
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Country of Origin: India
• Temperature Rating: 90 degrees C
• Insulation Material: Plastisol Cover
• Number of Conductors: 1
• Environmental Conditions: 90 degrees C
• WIRE RANGE: 4 Str
• PIN SIZE: 4
• O.D.: 0.598
• I.D.: 0.236
• PIN DIA.: 0.240
• LENGTH: 1.850
• PIN LENGTH: 0.681
• BODY LENGTH: 1.169
• BRAND EQUIVALENT: Burndy AYP4 Ilsco ACM-4 Penn Union PT4
• MANUFACTURER: NSi Industries
• Wire Type [Specifications]: Stranded
• Max. Temp. [Specifications]: 90 Degrees C
• Max. Voltage [Specifications]: 600V
• Terminal Type [Specifications]: Solid Pin
• Overall Length [Specifications]: 1.09 in
• Insulation Type [Specifications]: Plastisol Cover
• Pin Length (In.) [Specifications]: 0.68100000000000005
• Connection Material [Specifications]: Tin-Plated Aluminum
• Voltage Rating: 600V
• Conductor Type: Copper, Aluminum
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Assortment: Pin Terminals
• Die Color Code: Tan
• Barrel Length: 1.17
