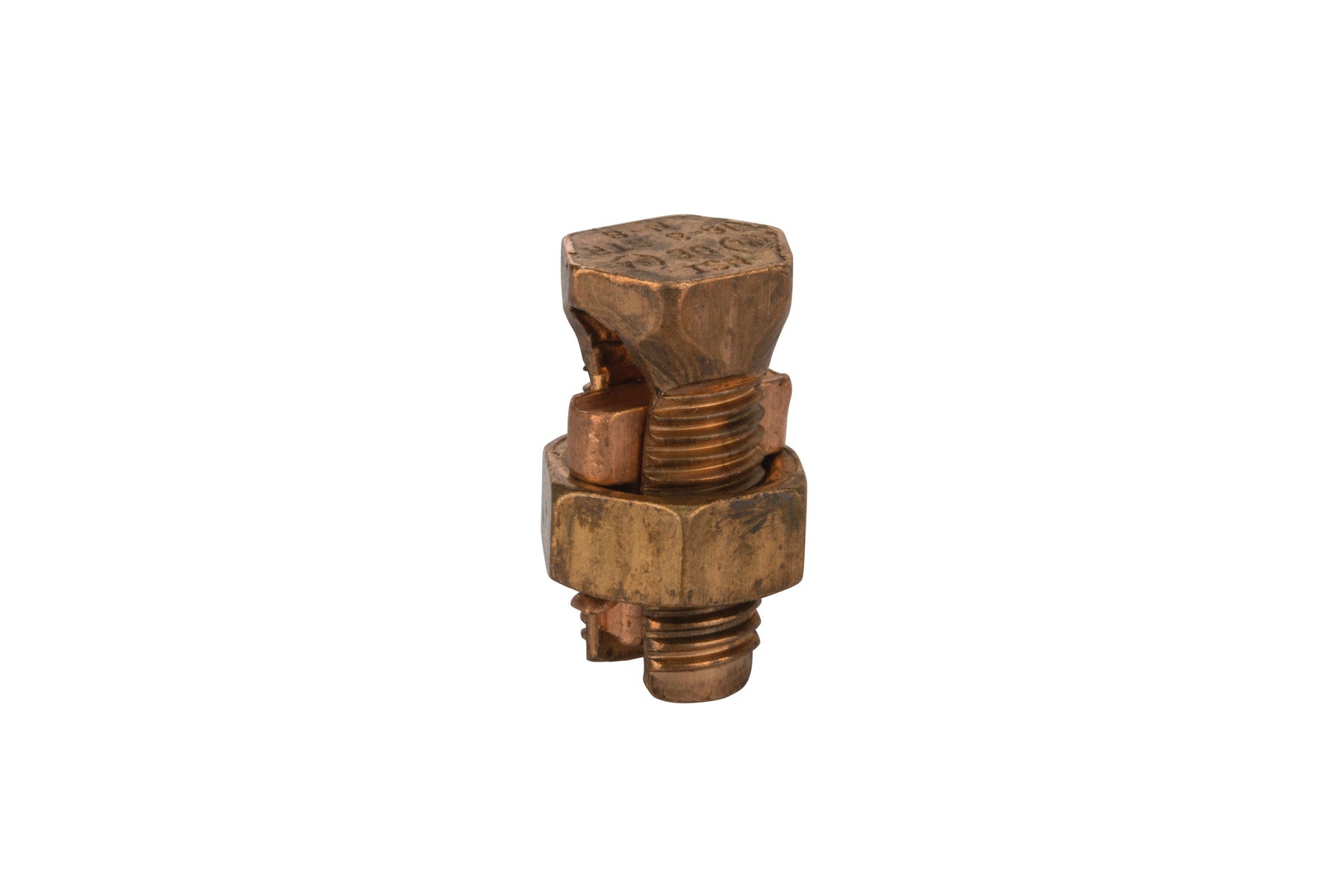

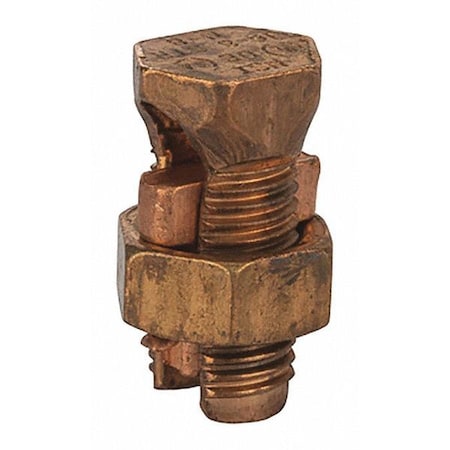

Nsi Industries N-8 Copper Split Bolt, 16 str-8 str

Product Description

The NSI INDUSTRIES N-8 copper split bolt is designed for connecting electrical wires, accommodating sizes 16 STR to 8 STR. These high-strength solderless service connectors are made of high-copper alloy, suitable for copper and copperweld wires. Designed for wire termination with two maximum wire sizes.

• Made of high-copper alloy for copper and copperweld wires
• High strength solderless service connector
• Type for two maximum wire sizes

Product Highlights

Ideal for wire termination, the NSI N-8 copper split bolt ensures a strong and reliable connection for various electrical applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: N-8
• Country of Origin: India

Technical Specifications

• Connection Type: COMPRESSION
• Material Rating: COPPER
• UNSPSC Code: 39121400
• Size: L=.854 - W=.472 IN
• Type: Copper Split Bolts
• Brand: NSI Industries
• Color: Copper
• Finish: Copper
• Voltage: 600 Volt
• Material: Copper
• Standard: UL486B
• Sub Brand: Split Bolts
• Wire Size: 16 STR-8 STR
• Wire Type: A,B
• Product UPC: 66238102001
• 12-Digit UPC: 662381020017
• Applications: Wire Termination
• Conductor Size: 16-8 AWG
• Number of Poles: 1 Pole
• Country of Origin: India
• Temperature Rating: 90 degrees C
• Number of Conductors: 2
• Environmental Conditions: 90 degrees C
• Model / MPN: N-8
• MPN: N-8
• Part ID / MPN: N-8
• Product Type: ELECTRONIC_COMPONENT_TERMINAL
• Product Group: BISS
• Number of Items: 100.0
• Conductor Type: Copper
• Voltage Rating: 600 VAC
• Dimensions: 0.854 in L x 0.472 in W
• Standard & Approvals: CSA Certified, UL486B Listed
• Series: N
• Bolt Size: 0.854 in x 0.472 in
• Application: For Wire Termination
• Installation: Split Bolt
• Run AWG Max: 8 str
• Run AWG Min: 16 str
