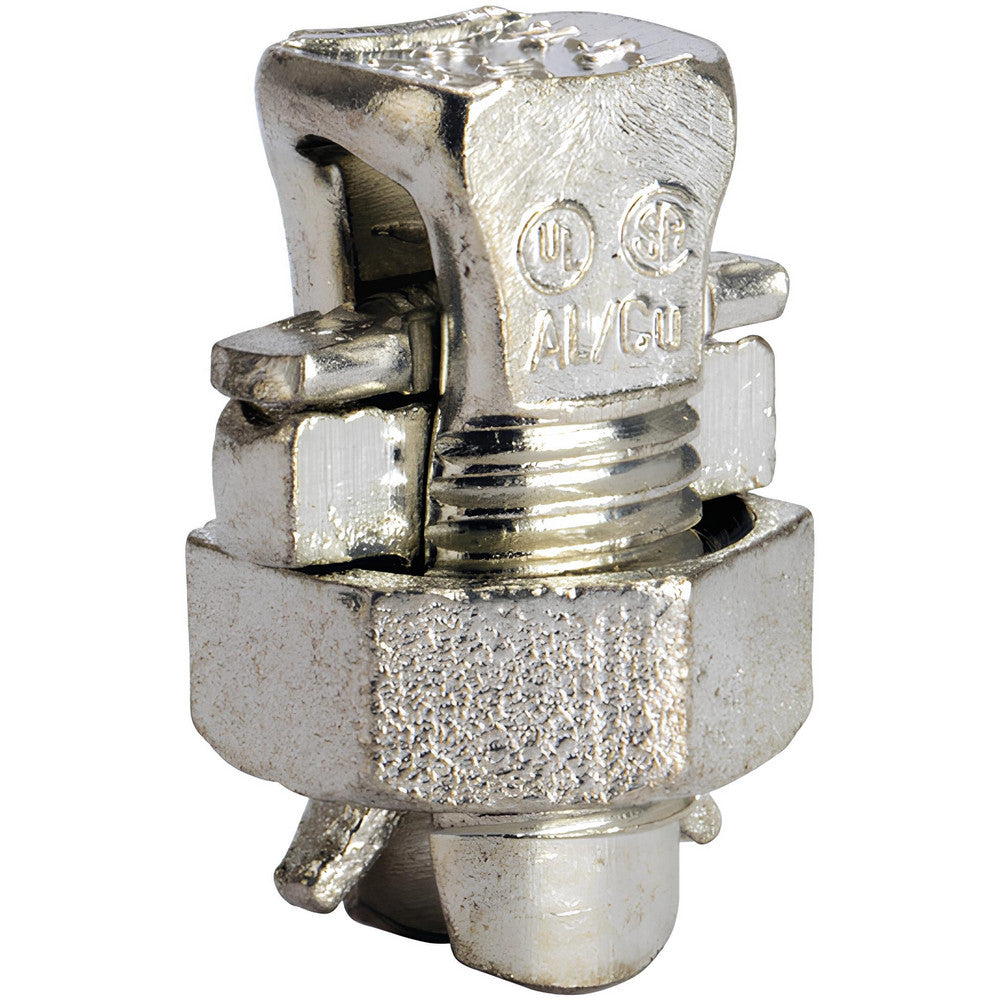

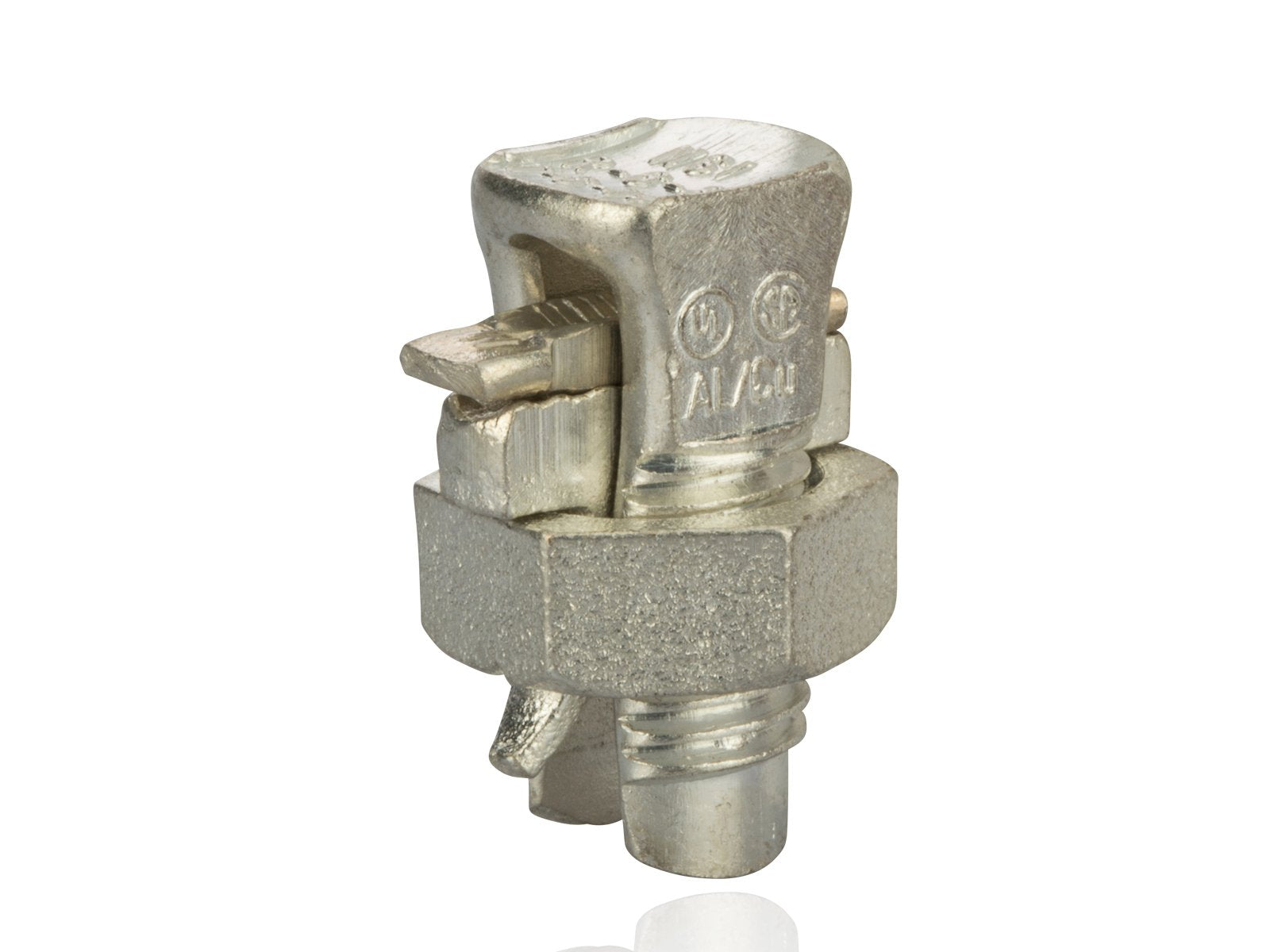

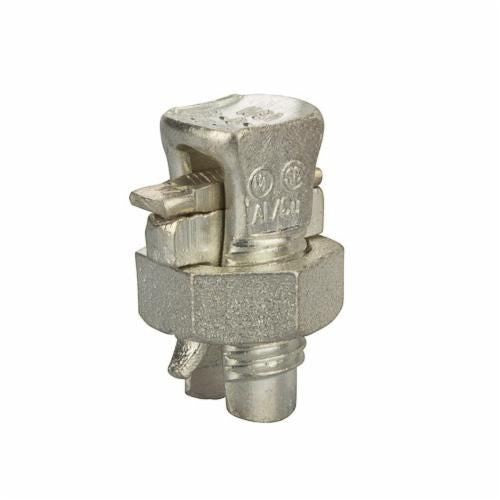

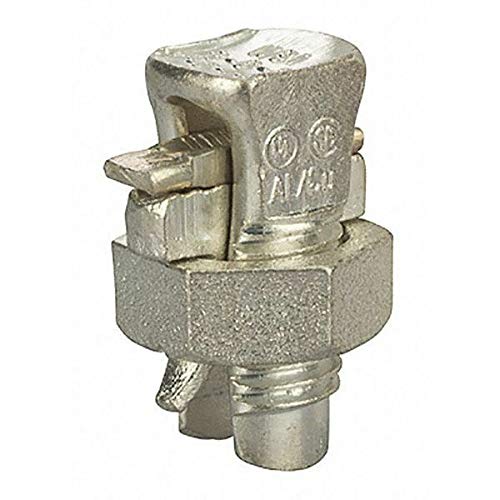

Nsi Industries N-6SP Split Bolt Connector 14-8 AWG

Product Description

The NSI Industries N-6SP all-purpose split bolt connector is used for combinations of aluminum to copper, aluminum to aluminum, steel to aluminum, copper to copper, and steel to copper applications. It features an electro-tinned body and includes a nut, spacer, and pressure pad. UL listed for copper and copperweld wires only.

• Can be used Aluminum to copper (Dual Rated), Aluminum to aluminum, Steel to aluminum, Copper to copper, Steel to copper
• Electro-tinned body
• UL listed for copper and copperweld wires only

Product Highlights

The NSI N-6SP split bolt connector is tin-plated making it highly resistant to corrosion and is UL Listed.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: N-6SP
• Country of Origin: Brazil

Technical Specifications

• Type: Tin Plated Copper Split Bolt
• Brand: NSI Industries
• Width: .492 in
• Finish: Tin Plated
• Length: 1.062 Inch
• Voltage: 600 Volt
• Material: Copper
• Standard: UL486B
• Sub Brand: Split Bolts
• Wire Size: 14 STR-8 STR
• Wire Type: A,B
• Applications: Wire Termination
• Conductor Size: 14-8 AWG
• Number of Poles: 1 Pole
• Country of Origin: Brazil
• Temperature Rating: 90 degrees C
• Number of Conductors: 2
• Environmental Conditions: 90 degrees C
• Size: L=1.062 - W=.492 IN
• Manufacturer: NSi Industries
• Part Number: N-6SP
• UPC: 662381020321
• Bolt Size: 1.062 in x 0.492 in
• Includes: Nut, Spacer and Pressure Pad
• Standard & Approvals: UL486B Listed
• Application: For Combinations of Aluminum to Copper, Aluminum to Aluminum, Steel to Aluminum, Copper to Copper and Steel to Copper Applications and Wire Termination
• Series: N-SP
• Voltage Rating: 600 VAC
• Conductor Type: Solid/Stranded/ACSR Copper/Aluminum
• Catalog Number: N-6SP
• GTIN: 00662381020321
• Item Type: Tin Plated Copper Split Bolt
• Connector Material: Copper
• Maximum Compatible Wire Size: 14 AWG
• Maximum Compatible Wire Size (AWG): 14
• Pressure Bar Material: Copper Alloy
• Compatible Wire Type: Copper
• UNSPSC Code: 39121409
