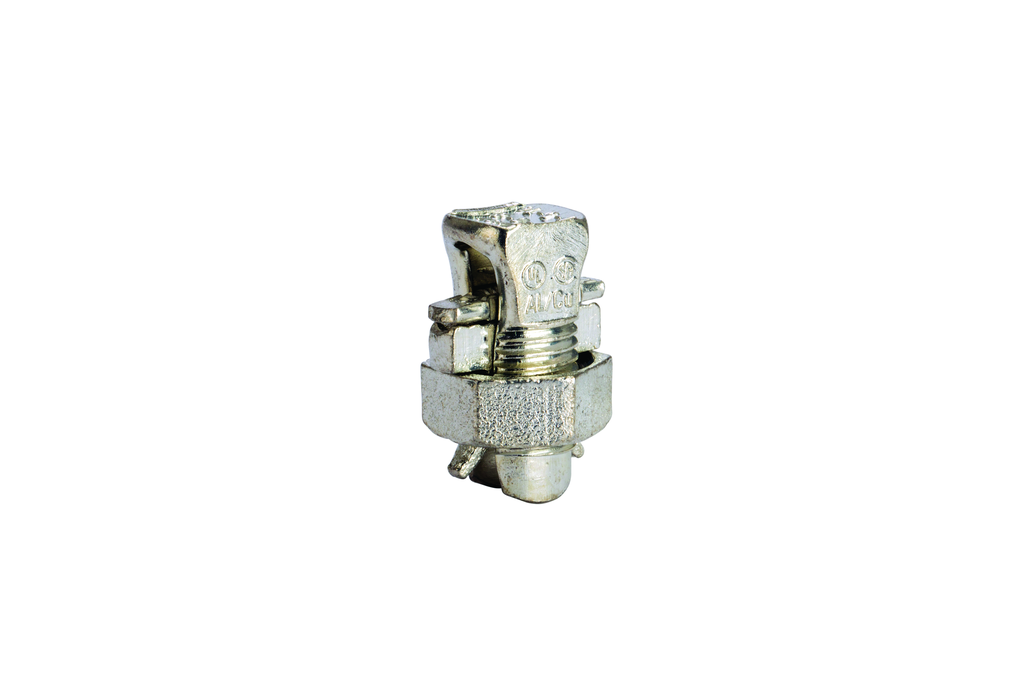

NSI Industries N-6SP Copper Split Bolt, 14 STR-8 STR

Product Description

The NSI Industries N-6SP is a copper split bolt connector. This connector is designed for use with different types of conductors including aluminum and copper. It is suitable for both solid and stranded conductors. The N-6SP is ideal for electrical connections in various applications.

• Compatible with wire sizes fourteen to eight AWG
• Electro-tinned copper material for corrosion resistance
• UL listed for safety and reliability

Product Highlights

This copper split bolt connector is widely used in grounding and bonding applications. It provides secure electrical connections, ensuring safety and durability in installations.

Product Information

Standard Information

• Manufacturer: NSI Industries
• Part Number: N-6SP

Technical Specifications

• Connection Type: Compression
• Material Rating: Copper
• Voltage Rating: 600 volts
• Temperature Rating: 90 degrees C
• UNSPSC Code: 39121400
• Dimensions: 1.062 inches length x 0.492 inches width
• Wire Size: 14 to 8 AWG
• Certification: UL 486B
