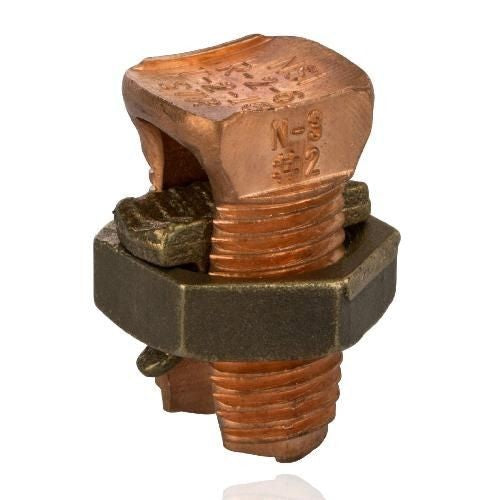

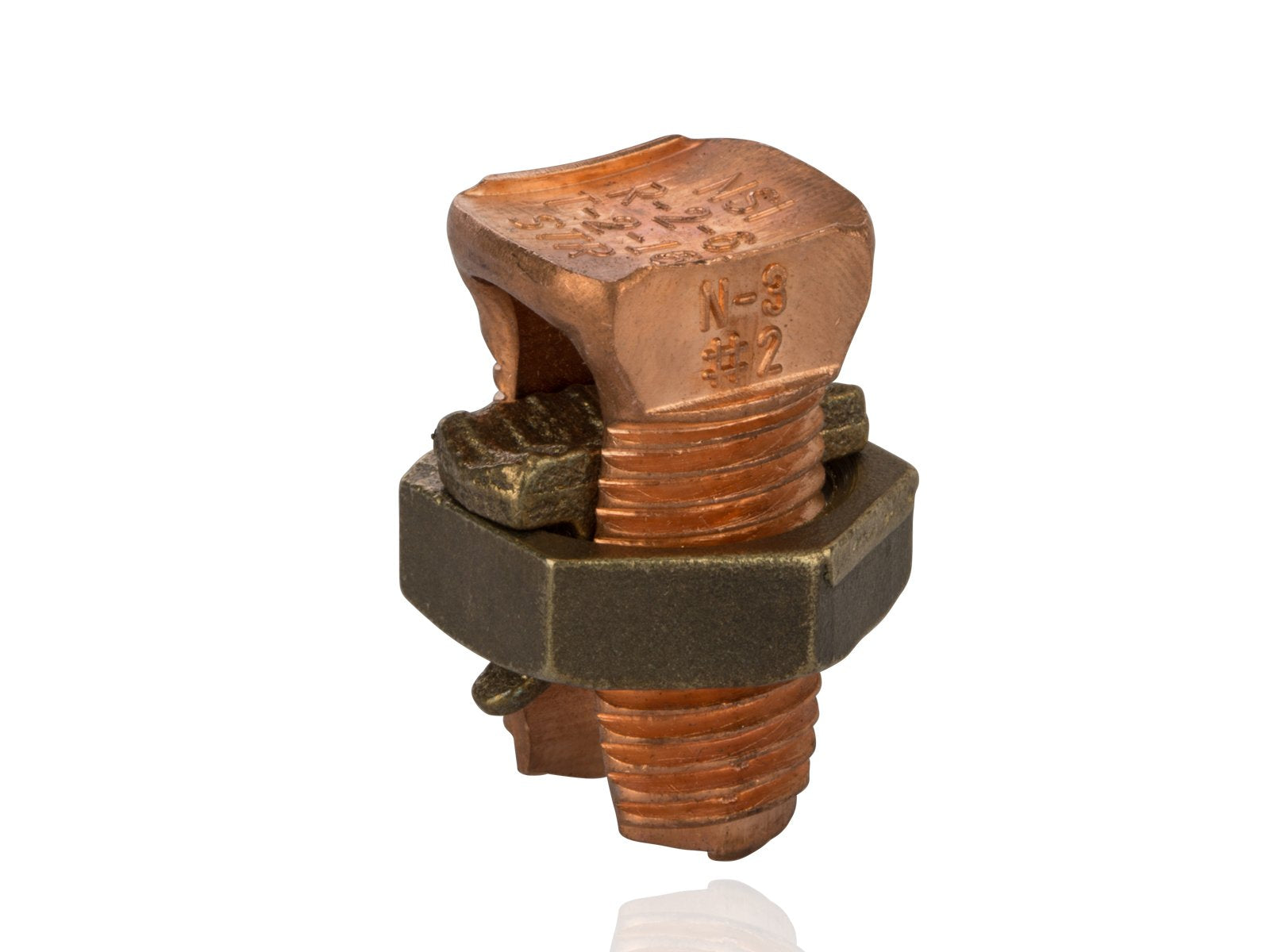

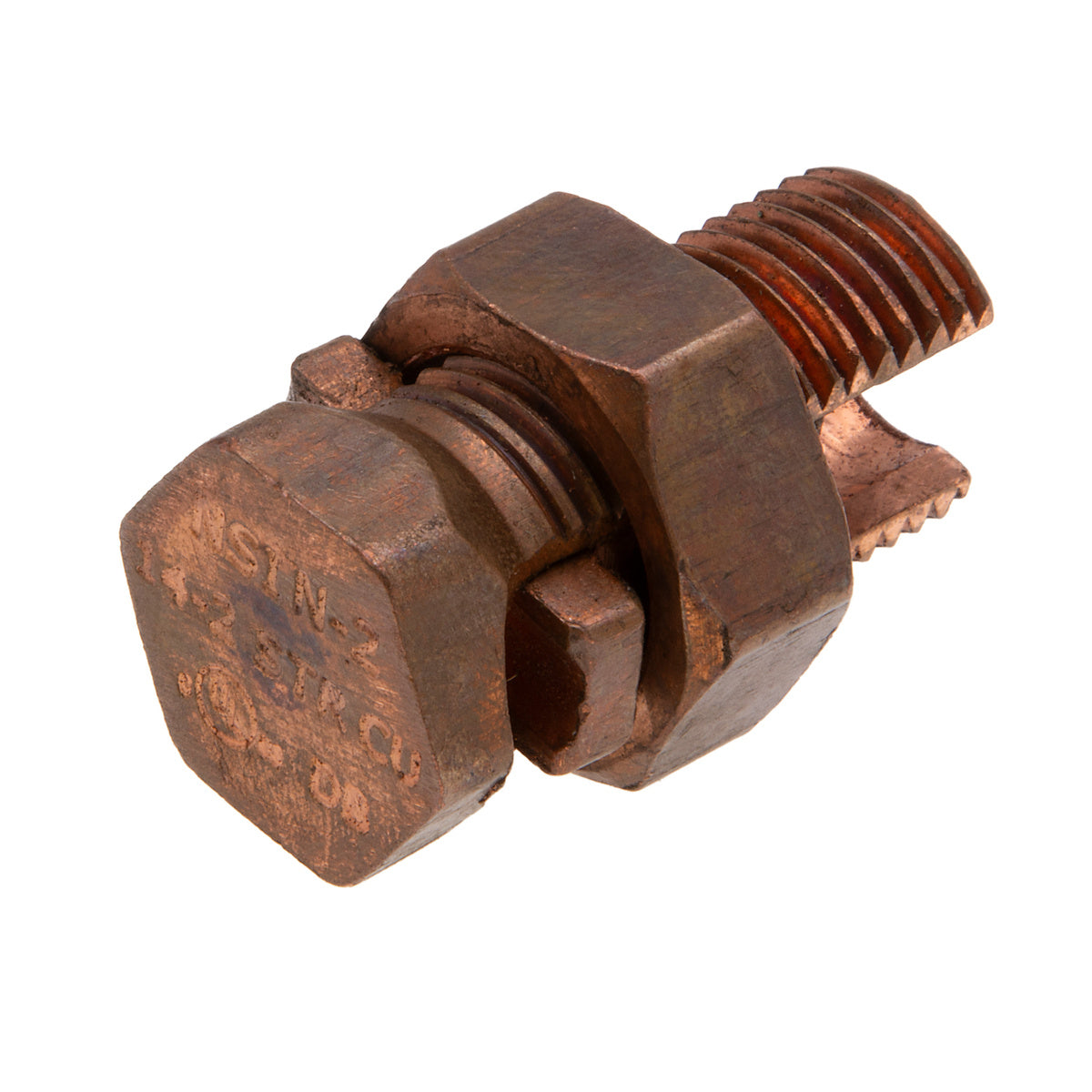

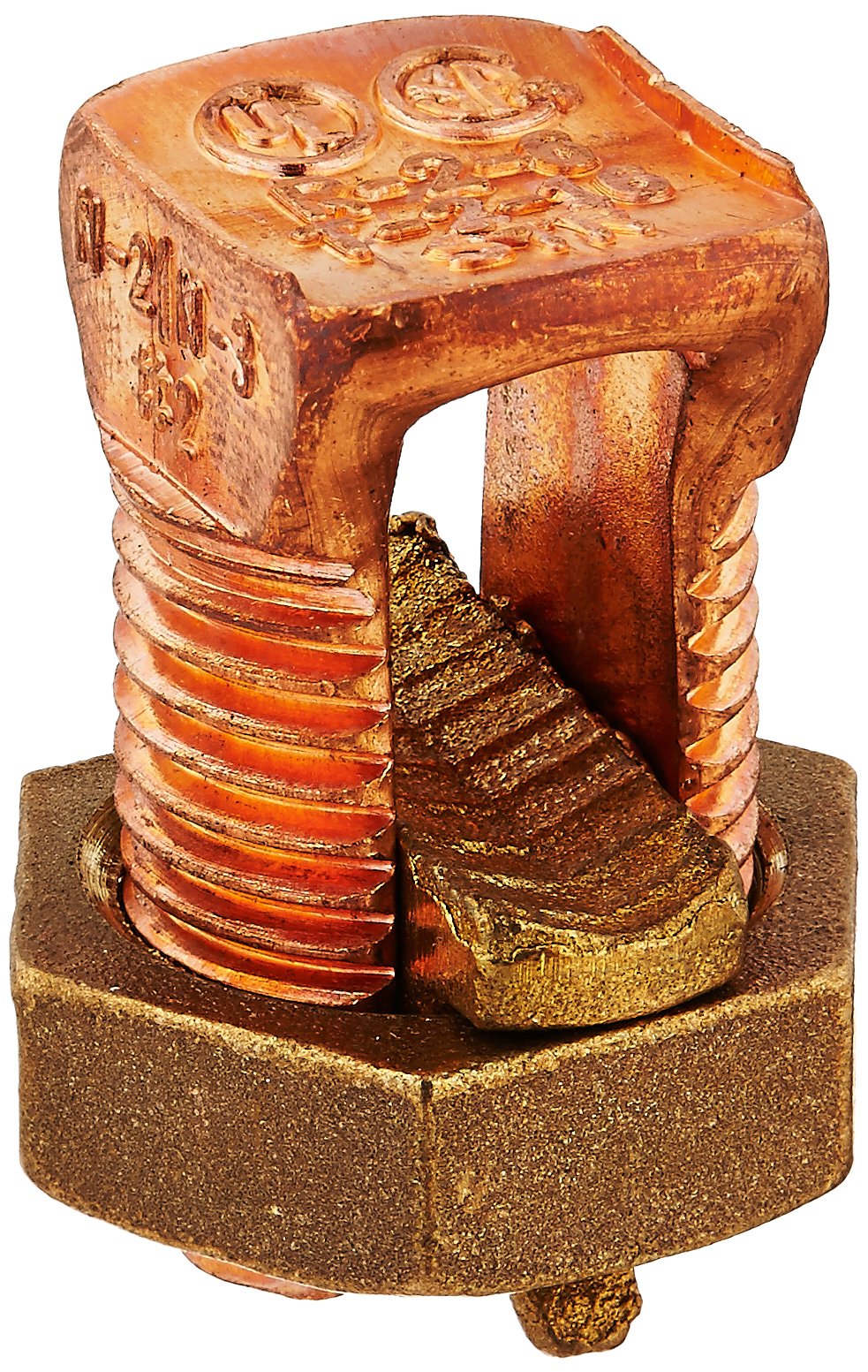

Nsi Industries N-2 Copper Split Bolt, 6 Sol-2 Str

Product Description

The NSI INDUSTRIES N-2 is a copper split bolt designed for connecting electrical wires. These high-strength solderless service connectors are made of high-copper alloy for copper and copperweld wires and are suitable for two maximum wire sizes. It is designed for wire termination.

• High-strength solderless service connectors
• Made of high-copper alloy for copper and copperweld wires
• Type for two maximum wire sizes

Product Highlights

The NSI N-2 copper split bolt is ideal for creating a strong, reliable connection between copper wires in various electrical applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: N-2
• Country of Origin: Brazil

Technical Specifications

• Connection Type: COMPRESSION
• Material Rating: COPPER
• UNSPSC Code: 39121400
• ECCN: EAR99
• Country of Origin: Brazil
• Category: Electrical -- Wire Connectors
• Item [Specifications]: Split Bolt,Copper,2 AWG
• Type [Specifications]: Copper Split Bolts
• Finish [Specifications]: Copper
• Material [Specifications]: Copper
• Standard [Specifications]: UL486B
• Wire Size [Specifications]: 6 SOL - 2 STR
• Wire Type [Specifications]: Class A & B
• Application [Specifications]: Wire Termination
• Voltage Rating: 600 V
• Temperature Rating: 90 deg C
• Number Of Conductors [Specifications]: 2
• Environmental Conditions [Specifications]: 90 C
• Conductor Type: Copper
• Assortment: Copper Split Bolts
• Series: N
• Standard & Approvals: CSA Certified, UL486B Listed
• Conductor Size: 6 to 2 AWG
