Nsi Industries N-10 Split Bolt Connector 16-10 AWG

Product Description

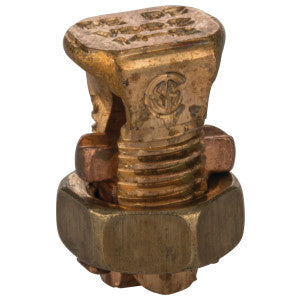

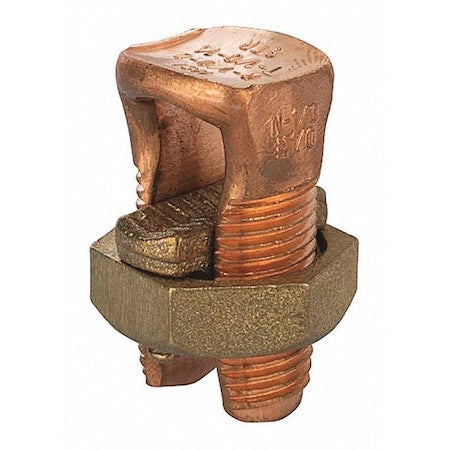

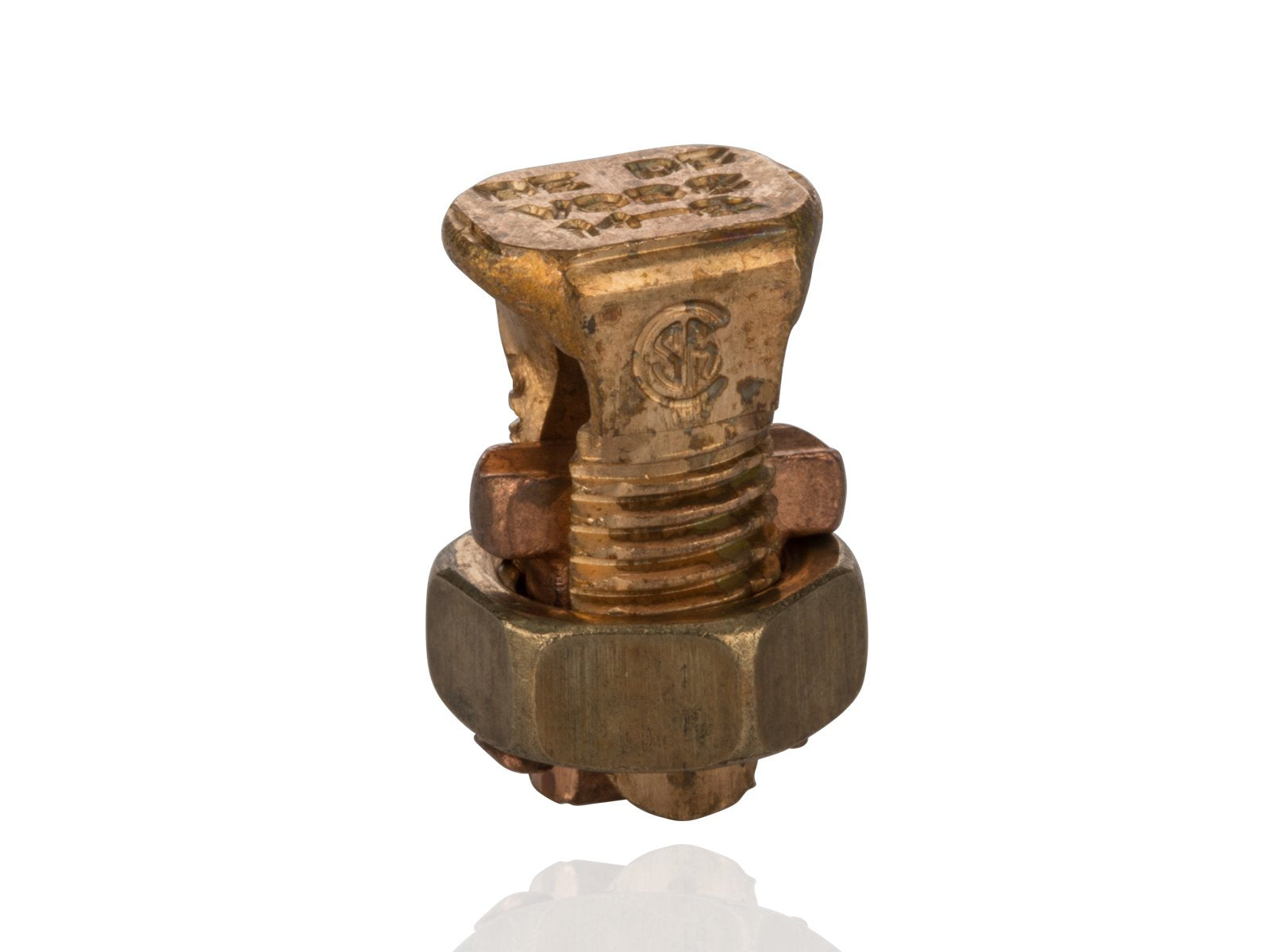

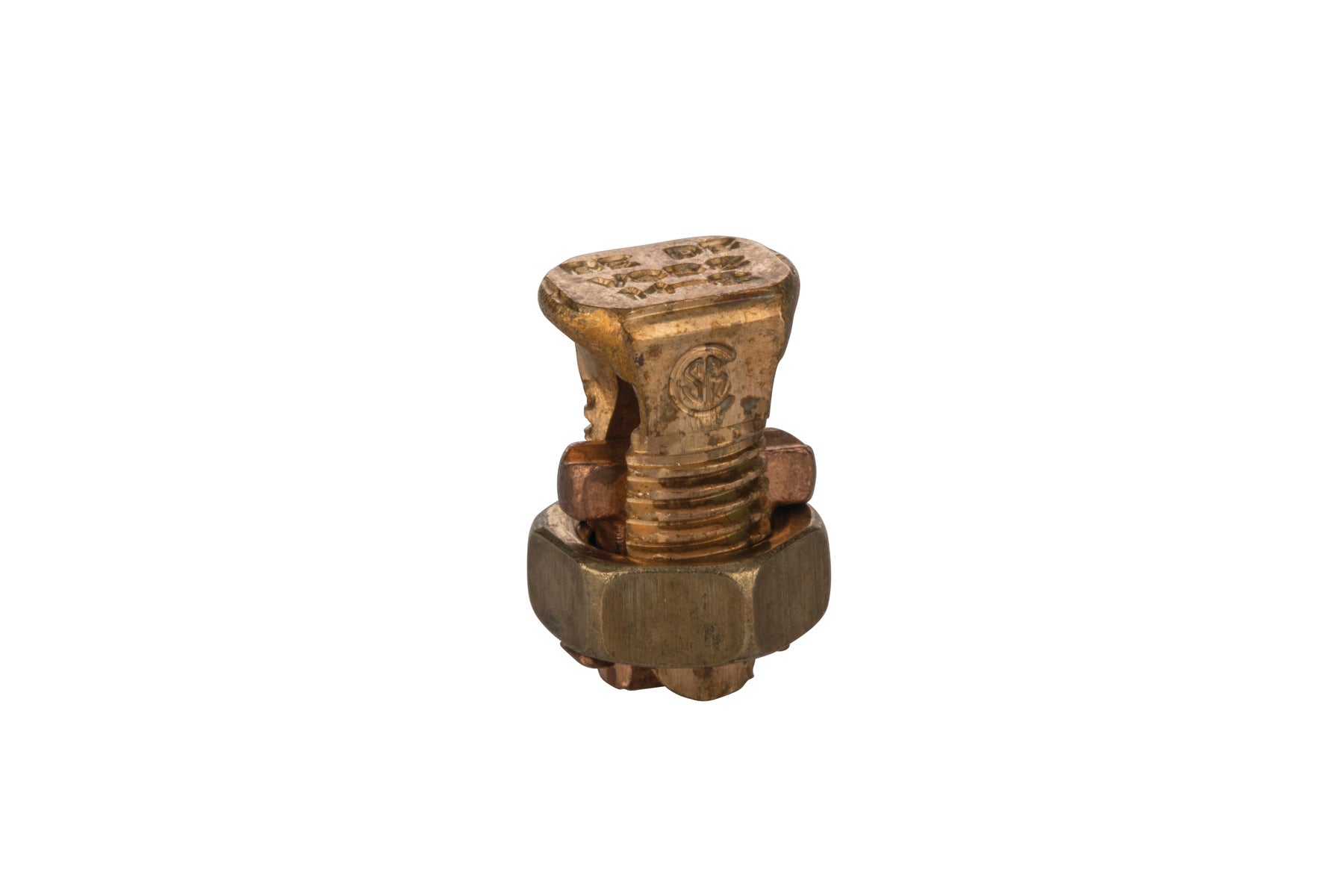

The NSI INDUSTRIES N-10 copper split bolt connector is a high-strength, solderless service connector made of high-copper alloy for copper and copperweld wires. It is designed for splicing and tapping copper and copperweld conductors and accepts Class A and B stranded or solid copper/copperweld conductors. Type for two maximum wire sizes.

• Made of high-strength copper alloy for copper and copperweld wires
• Features a solderless design that eliminates the need for additional materials, simplifying installation
• Precision machined threads enable high torque for secure, vibration-resistant connections

Product Highlights

The NSI N-10 copper split bolt connector ensures a secure and reliable connection for both solid and stranded wires. It meets industry standards for safety and reliability.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: N-10
• Country of Origin: USA

Technical Specifications

• Type: Copper Split Bolts
• Brand: NSI Industries
• Color: Copper
• Finish: Copper
• Voltage: 600 Volt
• Material: Copper Alloy
• Standard: UL486B
• Sub Brand: Split Bolts
• Wire Size: 16 STR-10 SOL
• Wire Type: A,B
• Applications: Wire Termination
• Conductor Size: 16-10 AWG
• Number of Poles: 1 Pole
• Country of Origin: USA
• Temperature Rating: 90 degrees C
• Number of Conductors: 2
• Buy American Compliant: Y
• Environmental Conditions: 90 degrees C
• ECCN: EAR99
• UNSPSC: 39121409
• Tap Conductor Size: 16 Str AWG
• Wire Diameter Range: 0.057" - 0.116"
• Torque: 80lbs
• Item: Copper Split Bolt
• Voltage Rating: 600 V
• Conductor Type: Stranded
• Model: N-10
• Conductor Range: Minimum: 16 AWG stranded copper Maximum: 10 AWG stranded copper
• Number of Wires: 2
• Torque Rating: 80 in-lbs
• Compliance: UL 486A, UL 486B, UL 486D; CSA Certified
• Application: Wire termination for copper and copperweld conductors
• Maximum Wire Insulation Diameter: 0.057 - 0.116 in
• Catalog Number: N10
