Nsi Industries L500nb Cu Cmp Lug Long 500 Mcm

Product Description

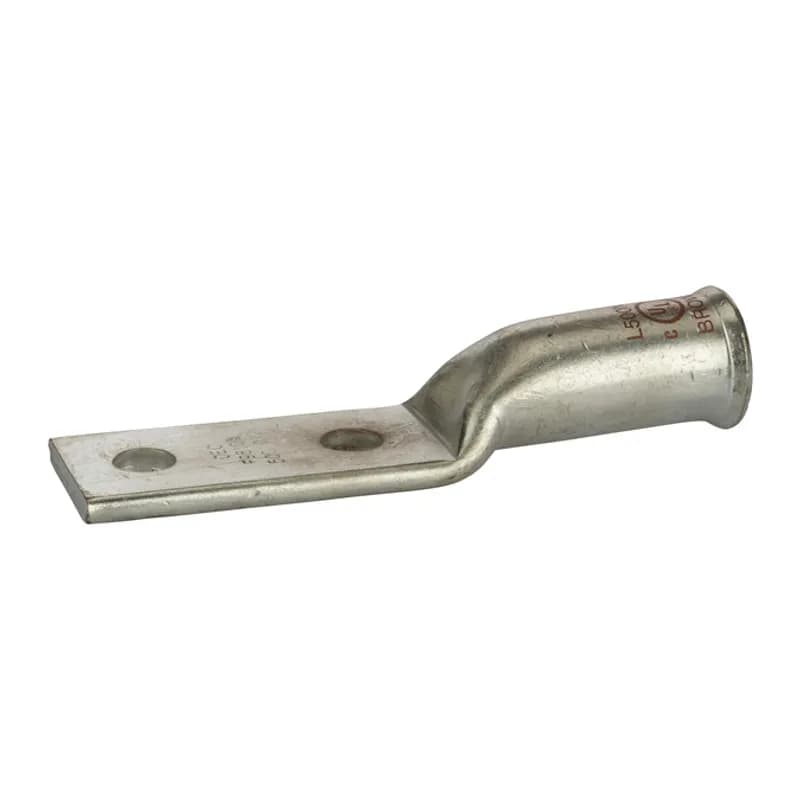

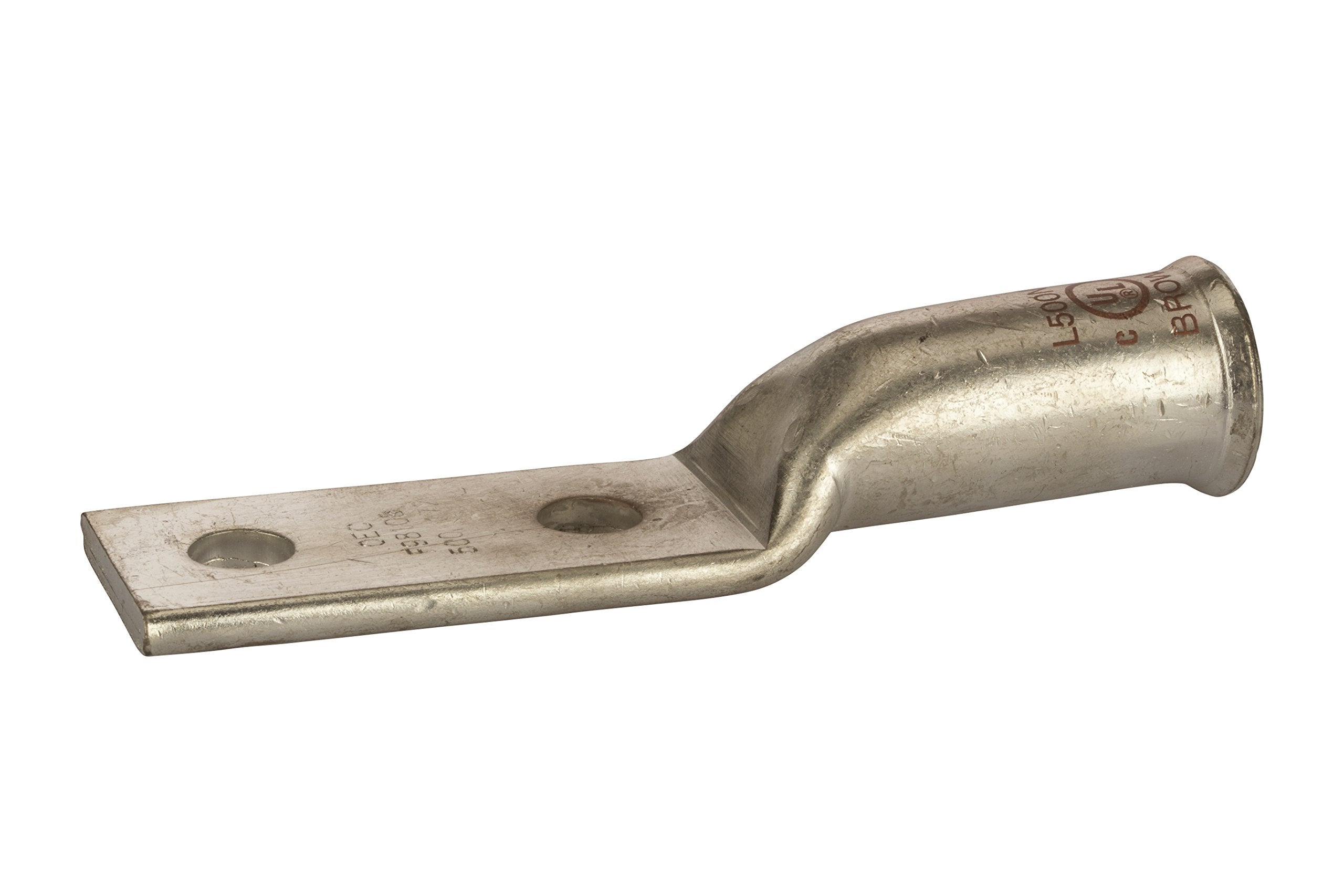

The NSI INDUSTRIES L500NB is a 500 MCM Cu compression lug with 2 holes and a bell end. Designed to terminate, splice, and tap power connectors. It has a long barrel and is made of copper with a brown color code. It is suitable for use in environmental conditions up to 90 degrees C.

• 500 MCM Cu Compression Lug
• 2 Hole
• Bell End

Product Highlights

This copper compression lug ensures ease of cable insertion and reduces pressure on cable strands after installation. Tin plated for corrosion resistance.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: L500NB
• Country of Origin: India

Technical Specifications

• GTiN: 00662381336651
• Size: L=5.75 - W=1.54 - OD=1.06 - ID=.840
• Type: Long Barrel - Two Hole - Belled End
• Brand: NSI Industries
• Color: Brown
• Voltage: 600 Volt
• Material: Copper
• Standard: UL486A/B
• Stud Size: 1/2 in
• Sub Brand: Copper Compression
• Cable Size: 500 MCM (STR)
• Product UPC: 66238133665
• 12-Digit UPC: 662381336651
• Applications: Terminate, Splice, Tap Power Connectors
• Mounting Type: 1/2 Mounting Holes
• Number of Holes: 2 Hole
• Environmental Conditions: 90 degrees C
• Pri. Wire Size: 500 MCM
• Poles: 1
• Item [Specifications]: Two-Hole Lug Compression Connector
• Width [Specifications]: 1.54"
• Length [Specifications]: 5-3/4"
• Material [Specifications]: Tin-Plated Copper
• Cable Size [Specifications]: 500 MCM
• Color Code [Specifications]: Brown
• Connector Type [Specifications]: Long Barrel
• MPN: L500NB N
• UPC: 662381336651
• Country of Origin: United States
• Category: Business & Industrial
• Conductor Type: Stranded
• Conductor Size: 500 kcmil
• Barrel Type: Belled End/Long
• Barrel Size: 0.84 in ID x 1.06 in OD
• Tongue Size: 1.54 in W
• Temperature Rating: 90 deg C
• Mounting Hole Size: 1/2 in
• Voltage Rating: 600 V
• Hole Spacing: 1-3/4 in
• Overall Length: 5-3/4 in
• Series: L-NB Series
• Height: 1.06 in
• Finish: Tin Plated
• Part Number: L500NB
• EAN: 662381336910
• UNSPSC: 39121405
• Origin Country: IN
• Certifications: cULus
• Ul Standard: UL 486A-486B, UL 467 (8 AWG – 3/0 AWG)
• Huskie Tools: EP510C
• Tb Die: 15506
• Tb Tools: TBM-15, TBM-14M
• Burndy Tools: Y-35, T750, PAT750
• Ilsco Tools: ILC-12, ILC-15
• Greenlee Tools: EK, RK, HK1240 Series
• Nsi Tools: N1240, NSI-12, N12ID, M-250, M-500
• Barrel Inside Diameter: 0.84
• Barrel Outside Diameter: 1.06
• Ul File No: E155027
• Wire Cable Class: Class B, Class C
• Al Conductor Max Amp: 230
• Cu Conductor Max Amp: 290
• Conductor Cu Size Range: 250 MCM-6 AWG
• Conductor Al Size Range: 250 MCM-6 AWG
• Tang Thickness: 0.22
• Tang Length: 2.99
• Temp Rating: 90C, 9CU
• Conductors Count: 3
• Wire Range: 500 MCM
• Env Temp: 90C, 9CU
• Assortment: Copper Compression Terminations
• Expanded Wire Range: 500 MCM – 250 MCM
• Die Color Code: Brown
• Mounting Bolt Size: 1/2
• Max Torque: 360
• Barrel Length: 6
• Application: Terminate, Splice, Tap Power Connectors
• Special Features: 500 MCM (STR) - 1/2 Mounting Holes - 1 3/4 Hole Spacing
