Nsi Industries L40N Compression Lug, 2 Hole, Long Barrel, Copper, 4/0 AWG, 1/2 inches Stud Size

Product Description

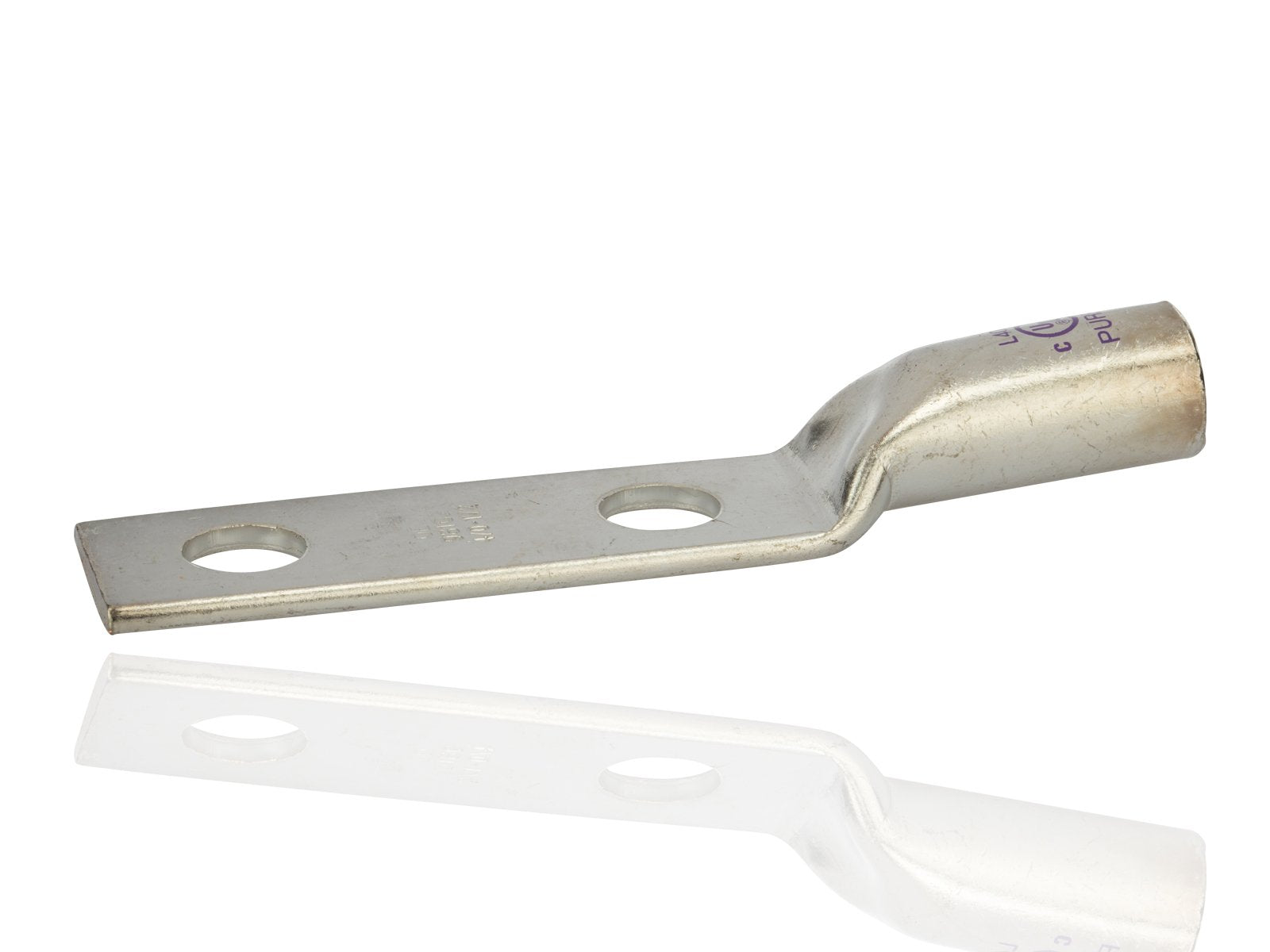

The NSI INDUSTRIES L40N is a compression lug with 2 holes and a long barrel, constructed from copper, designed for 4/0 AWG (STR) wire, and features a 1/2" stud size. It is suitable for terminating, splicing and tapping power connectors. The lug allows for easy inspection of termination and is marked with die index and color coded.

• Made from high conductivity copper tubing
• Allows easy inspection of the termination to assure complete cable insertion
• Tin-Plated to provide corrosion resistance

Product Highlights

This copper compression lug ensures a secure and reliable electrical connection for power distribution, grounding, and data transmission applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: L40N
• Country of Origin: United States

Technical Specifications

• Barrel: LONG
• Bolt Hole: 1/2 INCH
• Gauge: 4/0 AWG
• Holes: 2 HOLE
• Inspection Hole: NO
• Lug Material: COPPER
• Type: STANDARD COMPRESSION
• UNSPSC Code: 39121400
• GTiN: 00662381035127
• Size: L=4.72 - W=1.00 - OD=.690 - ID=.550
• Brand: NSI Industries
• Voltage: 600 Volt
• Material: Copper
• Standard: UL486
• Stud Size: 1/2 in
• Sub Brand: Copper Compression
• Cable Size: 4/0 AWG
• Product UPC: 66238103512
• 12-Digit UPC: 662381035127
• Applications: Terminate, Splice, Tap Power Connectors
• Mounting Type: 1/2 Mounting Holes
• Number of Holes: 2 Hole
• Environmental Conditions: 90 degrees C
• Model / MPN: L40N
• Voltage Rating: 35kV
• Finish: Tin Plated
• EAN: 0662381339127
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.13
• Tang Length: 1.81
• Hole Spacing: 1
• Wire Range: 4/0 AWG
• Assortment: Copper Compression Terminations
• Expanded Wire Range: 4/0 AWG – 1 AWG
• Die Color Code: Purple
• Mounting Bolt Size: 3/8
• Mounting Hole Diameter: 0.41
• Barrel Length: 1
• Minimum Order Qty: 1
• Order Interval: 1
• Conductor Size: 4/0 AWG
• Series: LN Series
• Specifications: 1-3/4 in Hole Spacing
• Temperature Rating: 90 deg C
• Overall Length: 4.72 in
• Application: Terminate, Splice and Tap Power Connector Applications
• Tongue Size: 2.99 in L x 1 in W x 0.13 in THK
• Catalog ID: NSIL40N
• Barrel Type: Long
• Barrel Size: 0.55 in ID x 0.69 in OD x 1.42 in L
