Product Description

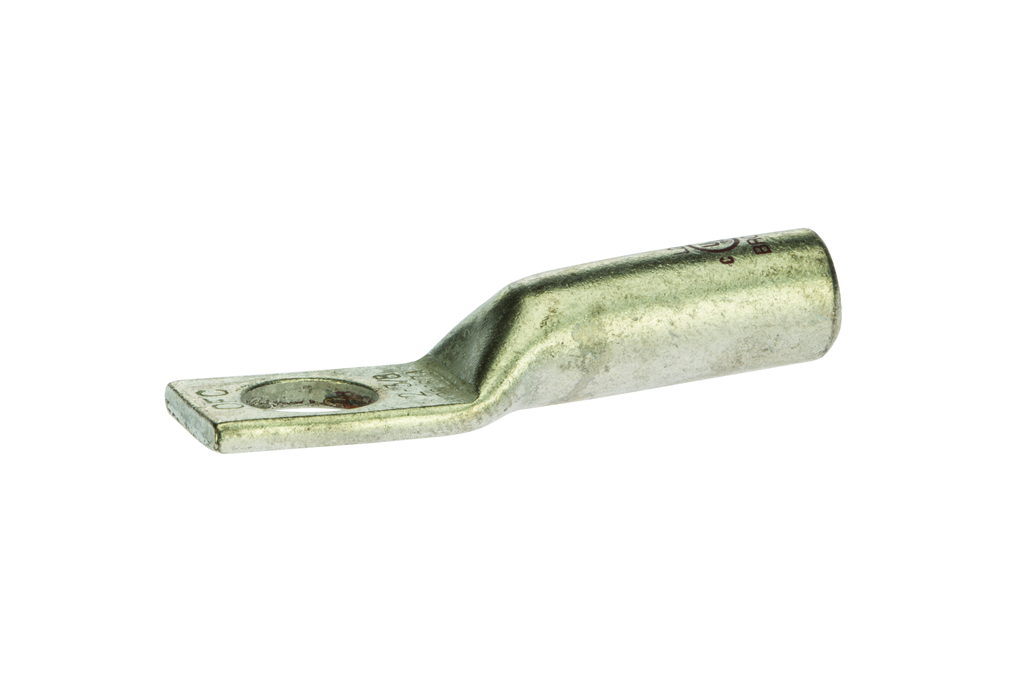

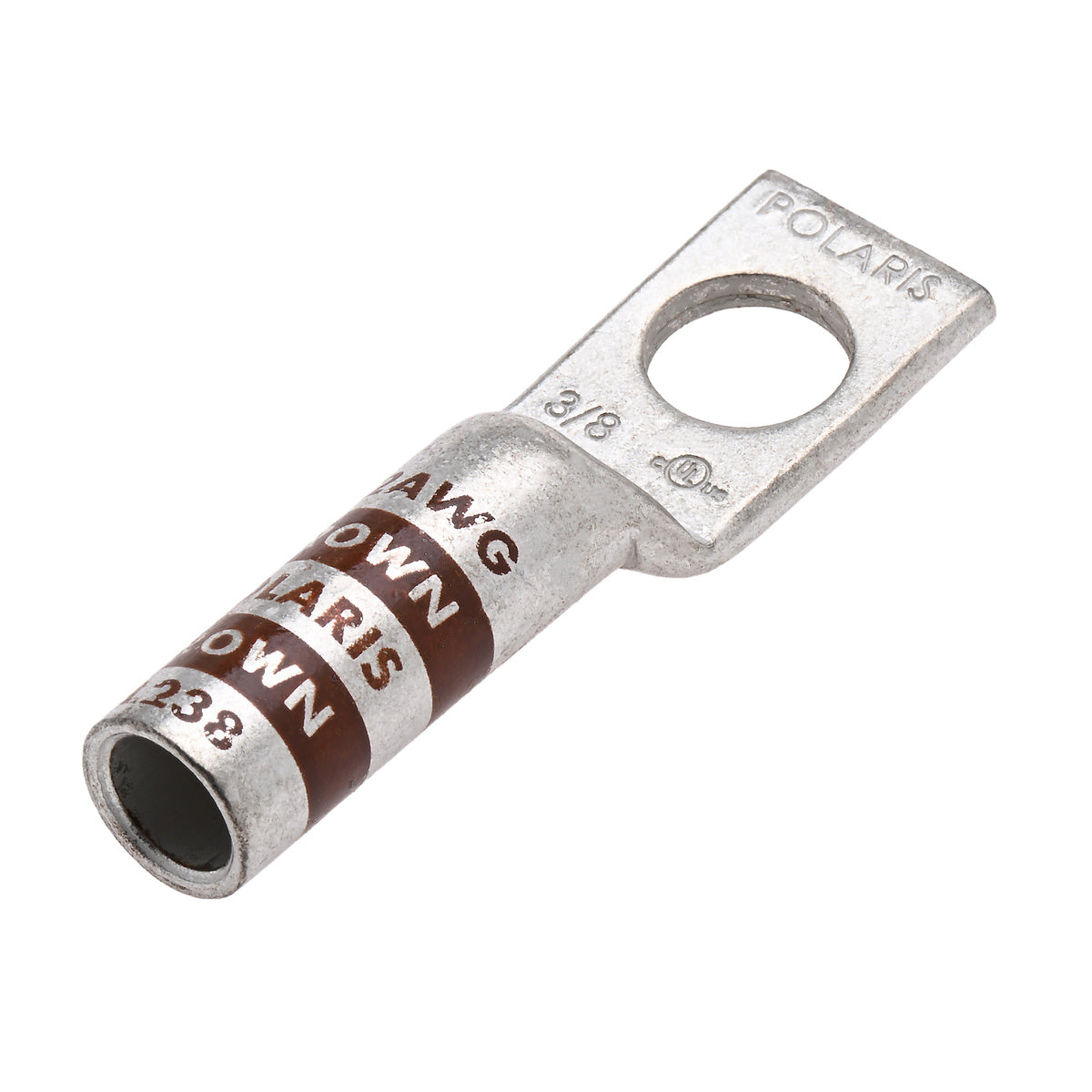

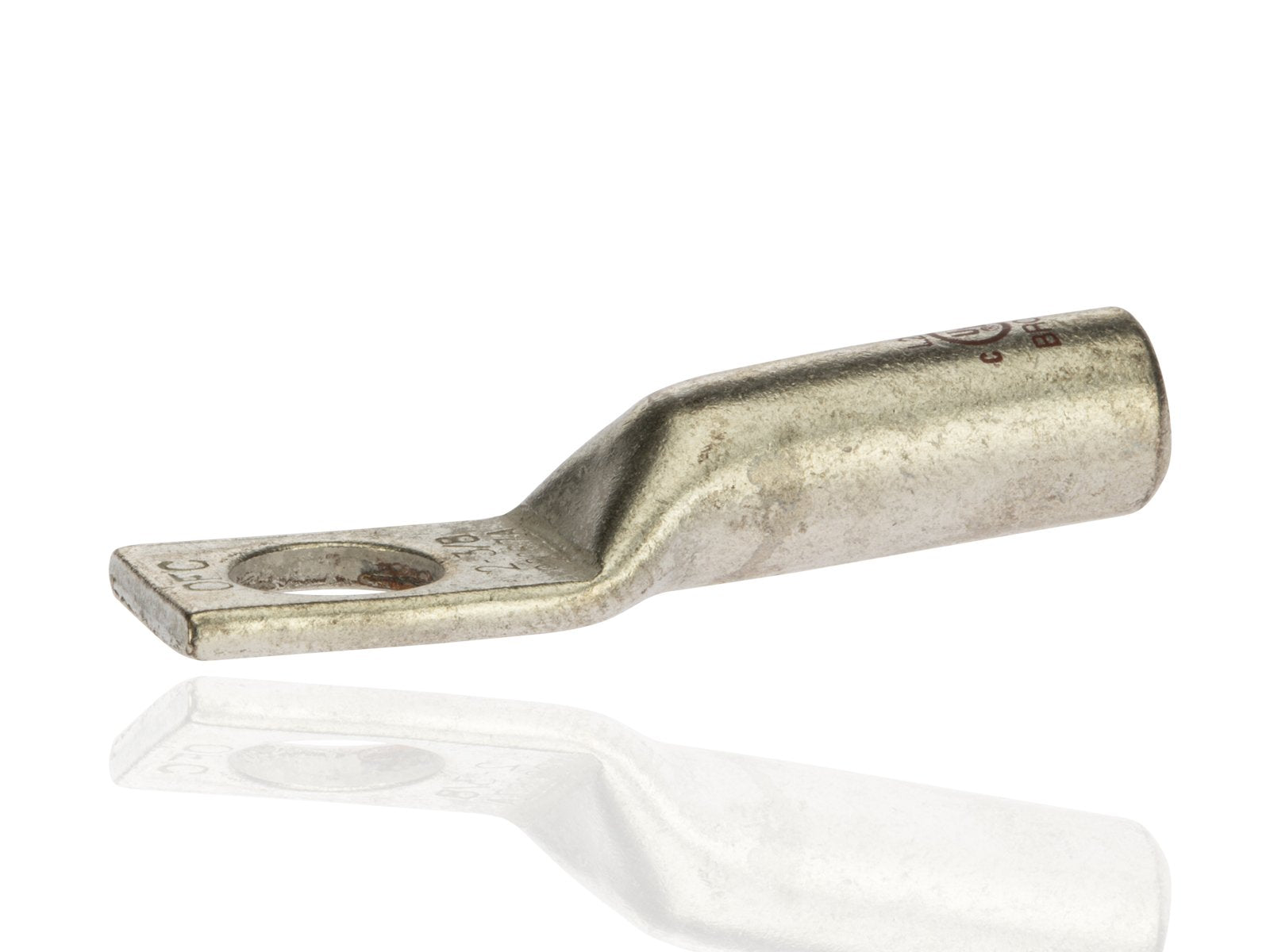

The NSI INDUSTRIES L238 compression lug features a 1-hole, long barrel design made from copper, designed for #2 AWG (STR) wire and a 3/8" stud size. These connectors are made from tin-plated copper for improved conductivity and corrosion resistance. They install easily with just a crimp tool. Use for secondary power distribution, power plants, and industrial applications.
- Strong Conductivity - Produced from high-conductivity copper tubing
- Corrosion-Resistant - Tin-plated to provide corrosion and low-contact resistance
- Die-Indexed - Marked with die index and color-coded brown
Product Highlights
The NSI L238 copper compression long lug features a standard installation hole, sized for 3/8" mounting bolts, and a chamfered port to terminate a 2 AWG conductor.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: L238
-
Country of Origin: India
Technical Specifications
-
Barrel: LONG
-
Bolt Hole: 3/8 INCH
-
Gauge: 2 AWG
-
Holes: 1 HOLE
-
Inspection Hole: NO
-
Lug Material: COPPER
-
Type: STANDARD COMPRESSION
-
UNSPSC Code: 39121400
-
Catalog Number: L238
-
Brand: NSI Industries
-
Manufacturer: NSi
-
Stud Size: 0.375 inch
-
Sub Brand: Copper Compression
-
Cable Size: 2 AWG
-
Product UPC: 66238103404
-
12-Digit UPC: 662381034045
-
Applications: Terminate, Splice, Tap Power Connectors
-
Width: 0.60 in
-
Finish: Tin Plated
-
Height: 0.42 Inch
-
Length: 2.07 Inch
-
Voltage: 35 KV maximum
-
Material: Copper
-
Standard: UL486
-
Mounting Type: 3/8 Mounting Hole
-
Max Temperature: 194 degrees F
-
Number of Holes: 1 Hole
-
Warranty Length: 1 yr
-
Environmental Conditions: 90 degrees C
-
Size: L=2.07 - W=.602 - OD=.421 - ID=.315
-
ECCN: EAR99
-
Series: L Series
-
Die Color: Brown
-
Color Family: Brown
-
Strip Length: 1-3/8"
-
Outer Diameter (OD): 0.42"
-
Thickness: 0.10"
-
Inside Diameter (ID): 0.31"
-
Voltage Rating: 35kV
-
GTIN: 662381034045
-
UPC: 662381034045
-
EAN: 0662381034045
-
Ul Standard: UL 486A-486B, UL467
-
Wire Cable Class: Class B, Class C
-
Conductor Type: Copper
-
Tang Thickness: 0.1
-
Tang Length: 0.81
-
Wire Range: 2 AWG
-
Assortment: Copper Compression Terminations
-
Expanded Wire Range: 2 AWG – 6 AWG
-
Die Color Code: Brown
-
Mounting Bolt Size: 3/8
-
Mounting Hole Diameter: 0.41
-
Barrel Length: 1
-
No. of Holes: 1
-
Approval: UL 486A/B, 467, UL (Canada and US)
-
Conductor Size: 2 AWG
-
Pad Size: 0.81 Inch Length x 0.6 Inch Width x 0.1 Inch Thickness
-
Die Index: 4/10/33
-
Overall Length: 2.07 Inch
-
Rated Voltage: 600 V
-
Use With: Copper Conductors
-
Country of Origin: India
