Nsi Industries L2048 Lug Long 2/0 AWG 1/2 Bolt Size

Product Description

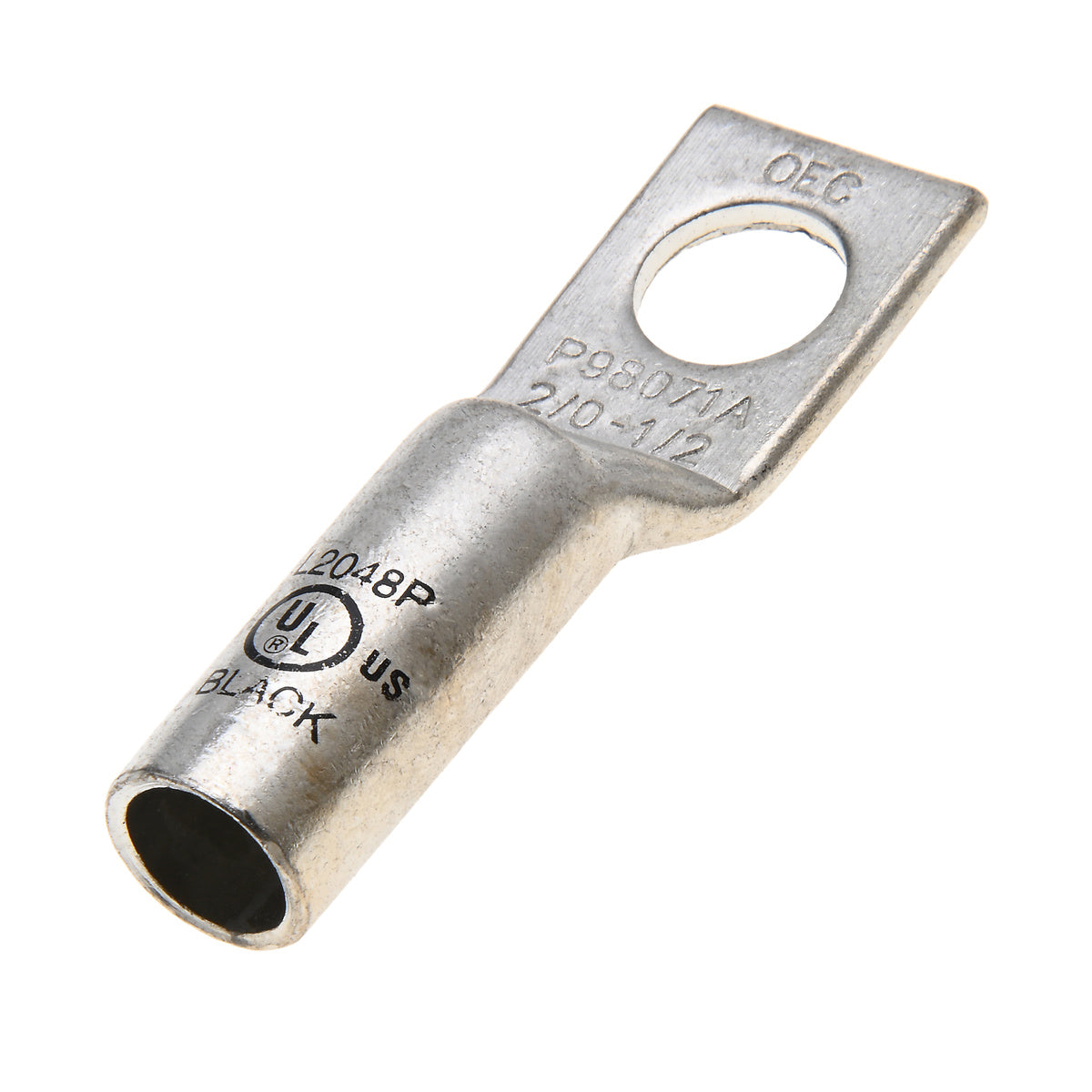

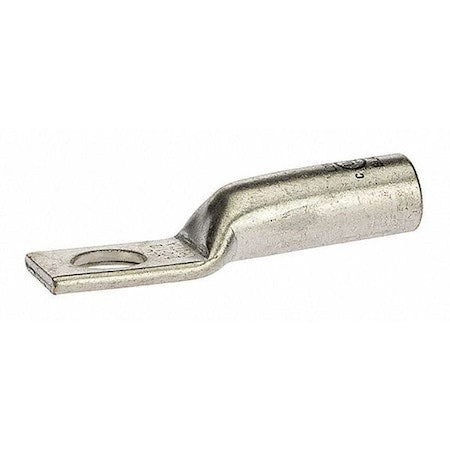

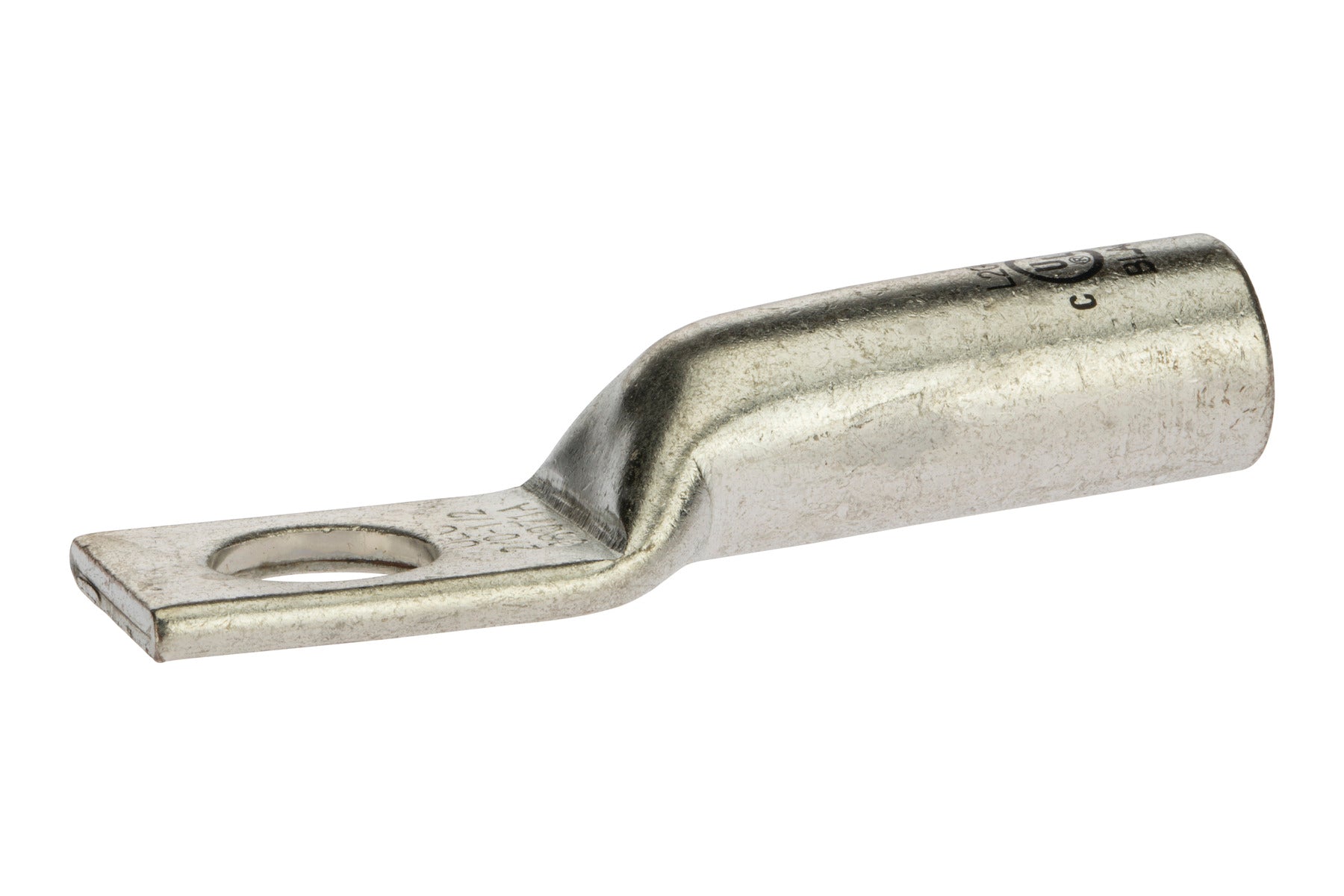

The NSI INDUSTRIES L2048 is a long barrel, one-hole lug compression connector made from tin-plated, high-conductivity copper. This lug is designed for a 2/0 AWG cable size and accommodates a 1/2 bolt size. The POLARIS compression design creates a permanent, vibration-resistant connection with low contact resistance.

• High conductivity copper tubing and corrosion resistant tin-plated finish
• Marked with die index and color coded
• Flex rated for use with K, H, G, I, M and DLO cable

Product Highlights

Suitable for power distribution, grounding, and data transmission applications. UL/cULus listed and rated for B/C class wire.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: L2048
• Country of Origin: India

Technical Specifications

• Item [Specifications]: One-Hole Lug Compression Connector
• Width [Specifications]: 0.815"
• Length [Specifications]: 2.677"
• Material [Specifications]: Tin-Plated High Conductivity Copper
• Cable Size [Specifications]: 2/0 AWG
• Color Code [Specifications]: Black
• Connector Type [Specifications]: Long Barrel
• Country of Origin (subject to change) [Specifications]: India
• Voltage Rating: 600V
• Finish: Tin Plated
• Ul Standard: UL 486A-486B, UL467
• Barrel Inside Diameter: 0.44"
• Barrel Outside Diameter: 0.56"
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.12"
• Tang Length: 1.06"
• Wire Range: 2/0 AWG
• Mounting Bolt Size: 1/2"
• Mounting Hole Diameter: 0.51"
• Barrel Length: 1"
