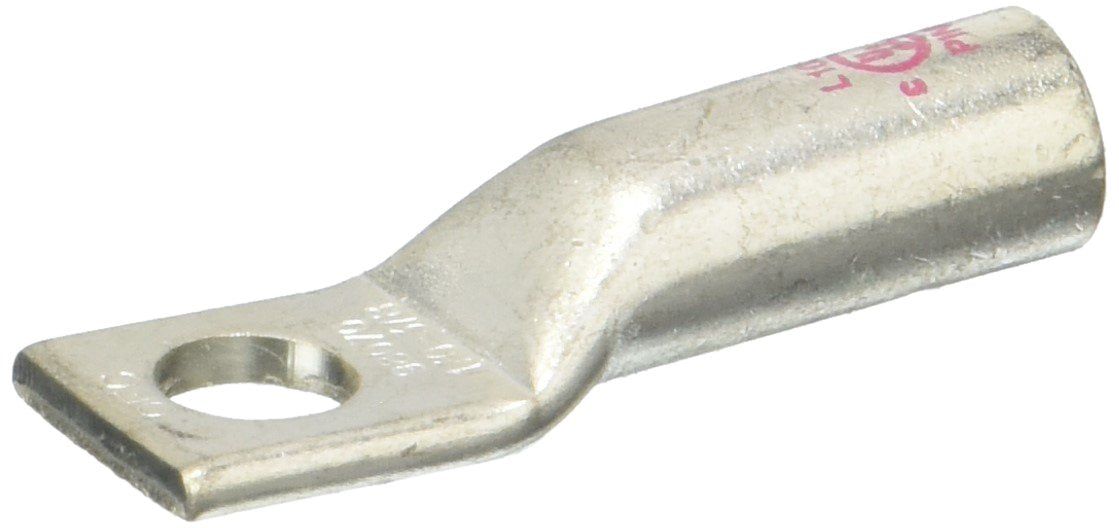

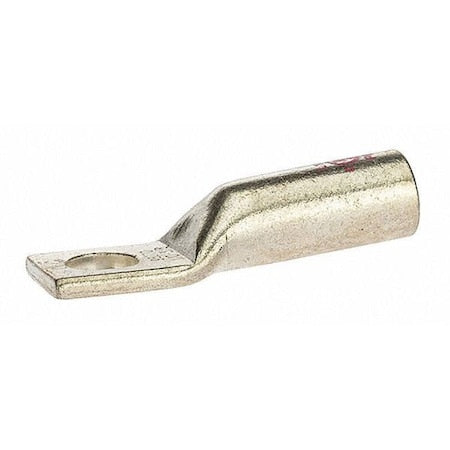

Nsi Industries L1038 Compression Lug, 1 Hole, Long Barrel, Copper, 1/0 AWG, 3/8 inches Stud Size

Product Description

The NSI INDUSTRIES L1038 is a compression lug with 1 hole and a long barrel, made from copper, designed for 1/0 AWG wires, and accommodates a 3/8" stud size. These lugs are produced from high conductivity copper tubing and tin-plated to provide corrosion resistance and low contact resistance. Marked with die index and color coded for easy reference.

• Constructed from high conductivity copper tubing.
• Tin-plated for corrosion resistance and low contact resistance.
• Color coded for easy identification.

Product Highlights

This copper compression lug ensures a secure and reliable electrical connection for various power distribution, grounding, and data transmission applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: L1038
• Country of Origin: India

Technical Specifications

• Barrel: LONG
• Bolt Hole: 3/8 INCH
• Gauge: 1/0 AWG
• Holes: 1 HOLE
• Inspection Hole: NO
• Lug Material: COPPER
• Type: STANDARD COMPRESSION
• UNSPSC Code: 39121400
• Rated Voltage: 35kV
• WIRE RANGE: 1/0 AWG
• EXPANDED WIRE RANGE: 1/0-6 AWG
• ID: 0.390
• OD: 0.520
• LENGTH: 2.210
• WIDTH: 0.744
• COLOR CODE: Pink
• Material: Copper
• Finish: Tin Plated
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Mounting Bolt Size: 3/8
• Application: Terminate, Splice, Tap Power Connectors
• Voltage: 35kV
• Screw/Stud Size: 3/8 in.
